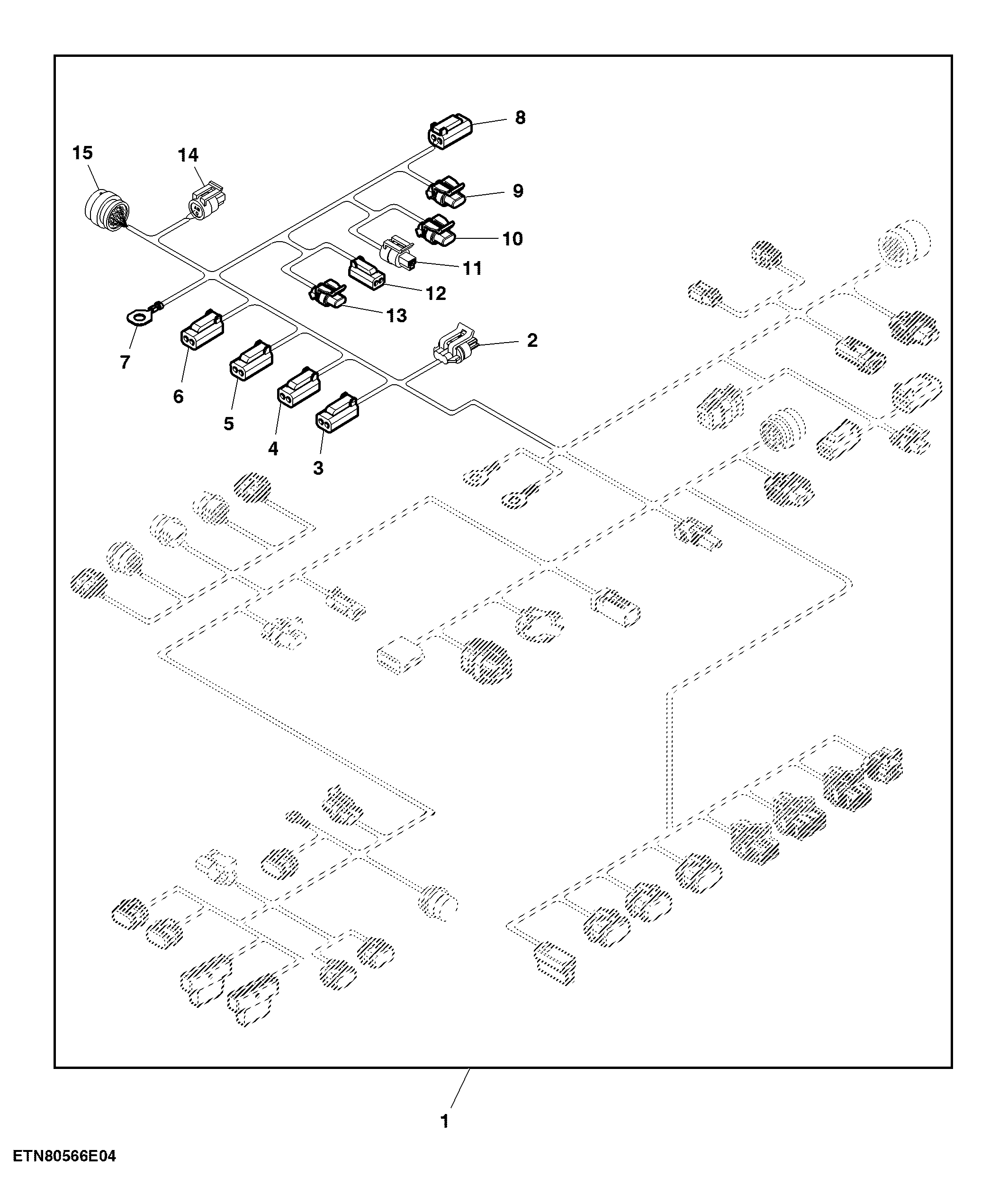

Wiring Harness, Left Control Unit 1 (4 of 5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE34182	1	Wiring Harness	SUB FOR AXE21312 AND AXE22365
2	-	1	Part 2	Thresh Clear Sensor
2	57M9223	3	Elec. Connector Seal	-
2	57M8299	3	Elec. Connector Terminal	-
2	57M9447	1	Elec.Connect Locking Device	Secondary Lock (Black)
3	57M10517	1	Elec. Connector Housing	Secondary Lock (Black)
3	57M8165	2	Elec. Connector Terminal	-
3	57M8022	1	Elec.Connect Locking Device	Wedge Lock
3	57M10486	1	Elec. Connector Accessory	Back Shell
4	57M10517	1	Elec. Connector Housing	Fan Speed
4	57M8165	2	Elec. Connector Terminal	-
4	57M8022	1	Elec.Connect Locking Device	Wedge Lock
4	57M10486	1	Elec. Connector Accessory	Back Shell
5	57M10517	1	Elec. Connector Housing	Clean Grain Speed
5	57M10486	1	Elec. Connector Accessory	Back Shell
5	57M8022	1	Elec.Connect Locking Device	Wedge Lock
5	57M8165	2	Elec. Connector Terminal	-
6	57M10517	1	Elec. Connector Housing	Tailing Speed
6	57M8165	2	Elec. Connector Terminal	-
6	57M8022	1	Elec.Connect Locking Device	Wedge Lock
6	57M10486	1	Elec. Connector Accessory	Back Shell
7	57M8866	1	Elec. Connector Terminal	Valve Ground
8	57M10486	1	Elec. Connector Accessory	Back Shell
8	57M8022	1	Elec.Connect Locking Device	Wedge Lock
8	57M8021	1	Electrical Connector Assy	Header Raise
8	57M8165	2	Elec. Connector Terminal	-
9	57M7254	1	Elec. Connector Housing	Header Lower
9	57M10770	2	Elec. Connector Terminal	-
9	57M9556	1	Elec. Connector Accessory	Secondary Lock
9	57M9215	2	Elec. Connector Seal	-
10	57M7254	1	Elec. Connector Housing	Accumulator Shut Off
10	57M10770	2	Elec. Connector Terminal	-
10	57M9556	1	Elec. Connector Accessory	Secondary Lock
10	57M9215	2	Elec. Connector Seal	-
11	57M7796	1	Elec. Connector Housing	Hydraulic Lift Cylinder Press
11	57M7496	3	Elec. Connector Terminal	-
12	57M10517	1	Elec. Connector Housing	GT Cover Open
12	57M8022	1	Elec.Connect Locking Device	Wedge Lock
12	57M8165	2	Elec. Connector Terminal	-
13	57M7254	1	Elec. Connector Housing	GT Cover Close
13	57M10770	2	Elec. Connector Terminal	-
13	57M9712	1	Elec. Connector Accessory	Secondary Lock (Blue)
13	57M9215	2	Elec. Connector Seal	-
14	57M7796	1	Elec. Connector Housing	Rotor Drive Press
14	57M7496	3	Elec. Connector Terminal	-
15	57M9514	1	Elec. Connector Housing	Valve Harness
15	57M8165	10	Elec. Connector Terminal	-
15	57M9526	10	Elec. Connector Terminal	-
15	57M10485	1	Elec. Connector Accessory	Back Shell
