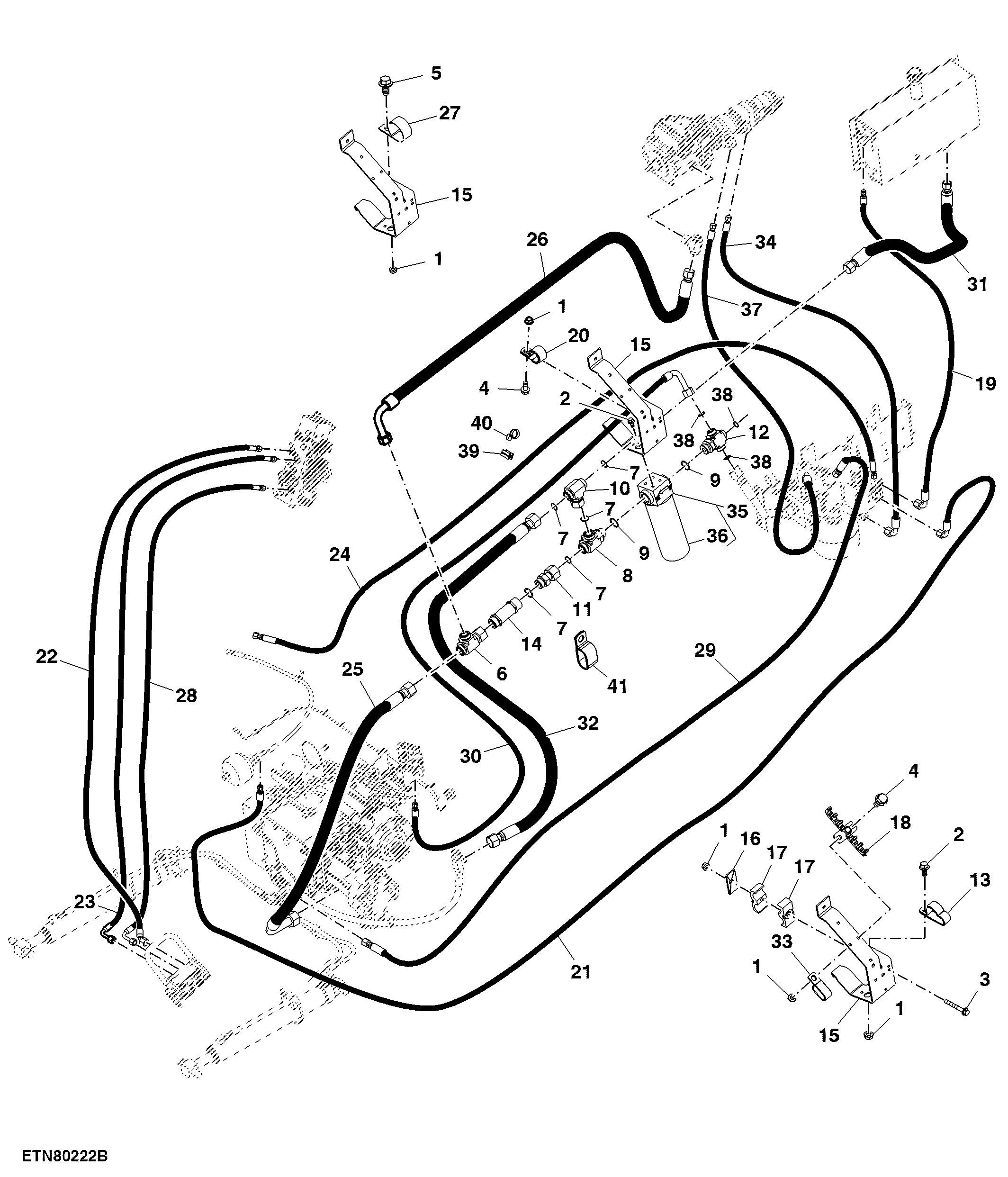

Main Hydraulic Filter Assembly, Hoses and Bundle Supports - W/O Contour Master ProDrive™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	11	Flange Nut	M8
2	19M7784	2	Screw	M10 X 20
3	19M7801	1	Screw	M8 X 60
4	19M7866	9	Screw	M8 X 20
5	19M7868	1	Screw	M8 X 30
6	38H1002	1	Tee Fitting	-
7	T76938	6	O-Ring	-
8	38H1027	1	Tee Fitting	-
9	R29936	2	O-Ring	-
10	38H1042	1	Tee Fitting	-
11	38H1071	1	Adapter Fitting	-
12	AH132031	1	Fitting	-
13	AH226446	2	Clamp	-
14	AH232787	1	Check Valve	-
15	AXE16392	3	Bracket	-
16	H112567	1	Plate	-
17	H159793	2	Clamp	-
18	H163410	2	Hose Clamp	-
19	AXE25485	1	Hydraulic Hose	LGTH = 3240 mm, SUB FOR AXE21318
20	T72393	1	Clamp	-
21	AXE25487	1	Hydraulic Hose	LGTH = 5285 mm
22	AH168929	1	Hydraulic Hose	LGTH = 5640 mm
23	AH169111	1	Hydraulic Hose	LGTH = 5640 mm
24	AXE25488	1	Hydraulic Hose	LGTH = 5835 mm
25	AXE22313	1	Hydraulic Hose	LGTH = 2750 mm
26	AH223467	1	Hydraulic Hose	LGTH = 2950 mm
27	R112693	1	Clamp	-
28	AH168928	1	Hydraulic Hose	LGTH = 5640 mm
29	AH168585	1	Hydraulic Hose	LGTH = 4300 mm
30	AXE12221	1	Hydraulic Hose	LGTH = 3600 mm
31	AXE24931	1	Hydraulic Hose	LGTH = 3575 mm
32	AXE22312	1	Hydraulic Hose	LGTH = 1970 mm
33	R49921	3	Clamp	-
34	AXE25486	1	Hydraulic Hose	LGTH = 3125 mm, SUB FOR AXE25041
35	AH125733	1	Filter Head	-
36	AH128449	1	Hydraulic Filter	-
37	AXE21237	1	Hydraulic Hose	LGTH = 3005 mm
38	T77858	3	O-Ring	-
39	AN209168	1	Swivel	-
40	H224073	1	Tie Band	-
41	AH97280	1	Clip	-
