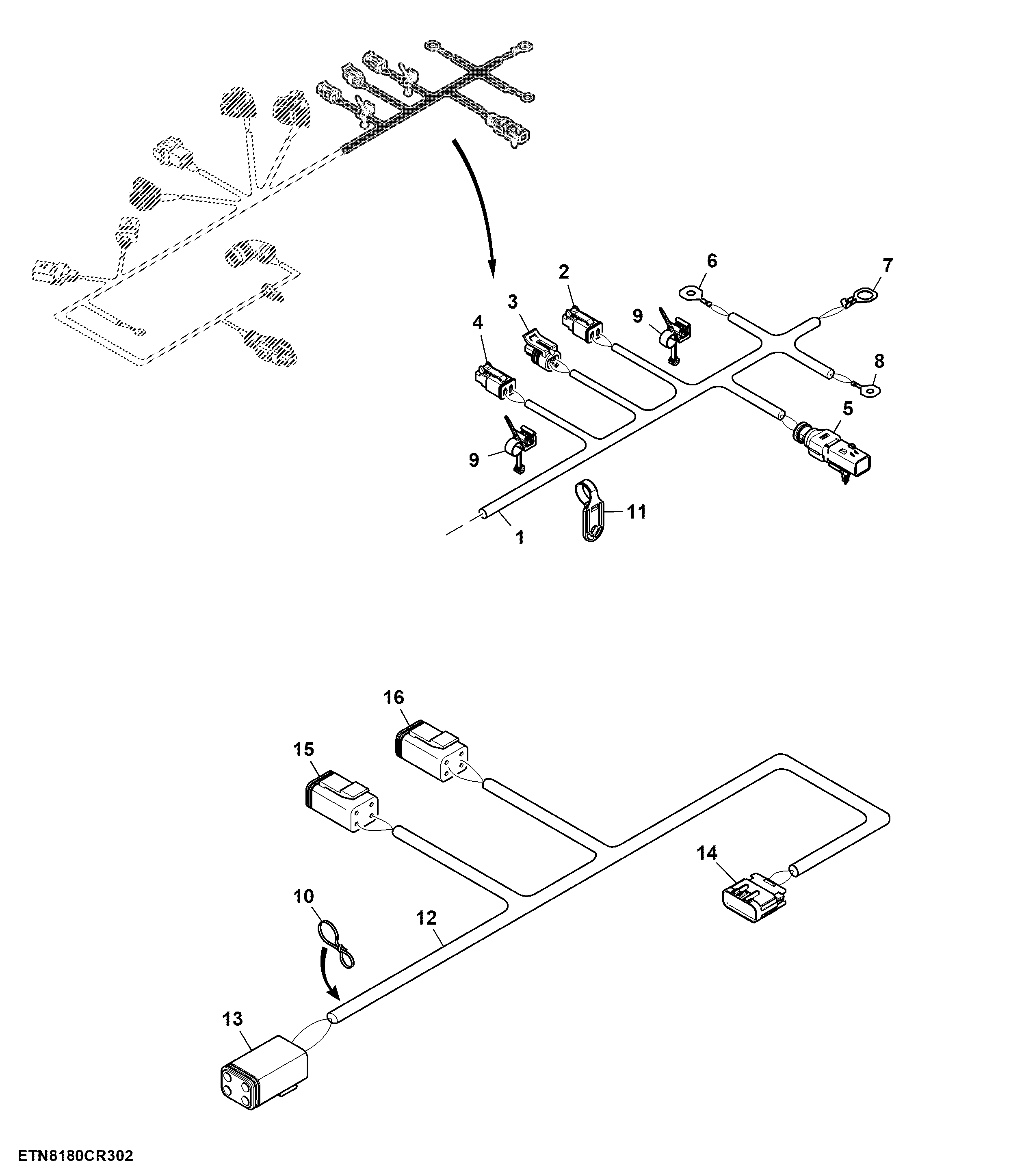

Wiring Harness, ProDrive™ Controller (2 of 2) ( - 120228)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE64190	1	Wiring Harness	SUB FOR AXE31837
2	57M10517	1	Elec. Connector Housing	S138 Right Brake Pedal Switch
2	57M8022	1	Elec.Connect Locking Device	-
2	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
2	57M10486	1	Elec. Connector Accessory	-
3	57M8625	1	Elec. Connector Housing	B82 Accumulator Charge Pressure Sensor
3	57M8560	3	Elec. Connector Terminal	Cavity 1, 2, 3
3	57M8566	3	Elec. Connector Seal	Cavity 1, 2, 3
4	57M10517	1	Elec. Connector Housing	S137 Left Brake Pedal Switch
4	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
4	57M10486	1	Elec. Connector Accessory	-
4	57M8022	1	Elec.Connect Locking Device	-
5	57M9730	1	Elec. Connector Housing	Right Main Harness / ProDrive™ Controller Harness
5	57M9837	1	Elec. Connector Accessory	-
5	57M9814	1	Elec. Connector Cavity Plug	Cavity 2
5	57M10603	1	Elec. Connector Terminal	Cavity 1
5	57M9939	1	Elec. Connector Accessory	-
6	57M8871	1	Elec. Connector Terminal	PTP Redundant Electronic Ground M6
7	57M8872	1	Elec. Connector Terminal	PTP Redundant Electronic Ground M6
8	57M7563	1	Elec. Connector Terminal	PTP Redundant Electronic Ground M12
9	AH225366	2	Clip	-
10	57M10421	13	Elec. Connector Accessory	-
11	57M10528	1	Elec. Connector Accessory	-
12	AXE18220	1	Wiring Harness	AST Valve Harness
13	57M10530	1	Elec. Connector Housing	Y119 / Y120 Hydro Pump Valve
13	57M8016	1	Elec.Connect Locking Device	-
13	57M10475	1	Elec. Connector Accessory	-
13	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
14	57M8306	2	Elec. Connector Terminal	Cavity A, G
14	57M8910	1	Clip	-
14	57M10794	3	Elec. Connector Terminal	Cavity F, K, L
14	57M9539	3	Elec. Connector Terminal	Cavity B, C, D
14	57M9223	8	Elec. Connector Seal	Cavity A, G
14	57M9522	1	Elec. Connector Housing	Left Control Unit
15	57M10530	1	Elec. Connector Housing	B80 Reverse Hydrostatic Pressure Sensor
15	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 4
15	57M8016	1	Elec.Connect Locking Device	-
16	57M10530	1	Elec. Connector Housing	B79 Forward Hydrostatic Pressure Sensor
16	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 4
16	57M8016	1	Elec.Connect Locking Device	-

Wiring Harness, ProDrive™ Controller (2 of 2) ( - 120228)
