Открытый узел

Main Hydraulic Filter Assembly, Hoses and Bundle Supports, W/ Contour-Master™ ProDrive™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE55312	1	Line	-
2	R35668	2	Clamp	-
3	14M7298	9	Flange Nut	M8
4	19M7784	2	Screw	M10 X 20
5	19M7801	1	Screw	M8 X 60
6	19M7866	7	Screw	M8 X 20
7	H159793	2	Clamp	-
8	38H1146	1	Fitting Plug	-
9	T77613	1	O-Ring	-
10	AXE28699	1	Filter Head	-
11	AXE48397	2	Bracket	-
12	H112567	1	Plate	-
13	38H1145	1	Fitting Plug	-
14	T77814	1	O-Ring	-
15	AXE41154	1	Bracket	-
16	AH168929	1	Hydraulic Hose	LGTH = 5640 mm, Extend W/ Multi Coupler
17	AH168928	1	Hydraulic Hose	LGTH = 5640 mm, Reel Lift W/ Multi Coupler
18	AH168585	1	Hydraulic Hose	LGTH = 4300 mm, Bulk Head Tee to Header Floatation Valve
19	AH173392	1	Hydraulic Hose	LGTH = 6625 mm, Contour-Master™, Retract
20	AXE48396	1	Hydraulic Hose	LGTH = 3650 mm, Return, Reel Drive
21	AH173391	1	Hydraulic Hose	LGTH = 6550 mm, Contour-Master™, Extend
22	AH169111	1	Hydraulic Hose	LGTH = 5640 mm, Retract W/ Multi Coupler
23	19M7868	1	Screw	M8 X 30
24	AXE48407	1	Hydraulic Hose	LGTH = 2635 mm, Main Return, ProDrive™
25	AH77884	1	Clip	-
26	AXE45028	1	Hydraulic Hose	LGTH = 4750 mm, Charging Valve to Accumulator
27	38H1415	1	Fitting	-
28	AH226446	2	Clamp	-
29	AXE21237	1	Hydraulic Hose	LGTH = 3005 mm, Header Lift
30	R49921	5	Clamp	-
31	AXE53730	1	Hydraulic Hose	LGTH = 8500 mm, Brake Valve to Tank, Return
32	AXE55284	1	Hydraulic Hose	LGTH = 2910 mm, Hydro Bypass Valve to Hydro Pump
33	T72393	1	Clamp	-
34	R112693	1	Clamp	-
35	38H1027	1	Tee Fitting	-
36	R29936	1	O-Ring	-
37	T76938	6	O-Ring	-
38	38H1002	1	Tee Fitting	-
39	38H1071	1	Adapter Fitting	-
40	AH232787	1	Check Valve	Hydro Cooler Bypass valve
41	38H1042	1	Tee Fitting	-
42	AXE48410	1	Hydraulic Hose	LGTH = 2800 mm, Return, Hydro Motor
43	AXE48409	1	Hydraulic Hose	LGTH = 2020 mm, Suction, Reel Drive W/ ProDrive™
44	38H1418	1	Fitting	-
45	AT129775	1	Oil Filter	-
46	HXE149076	1	Shim	TK = 4 mm

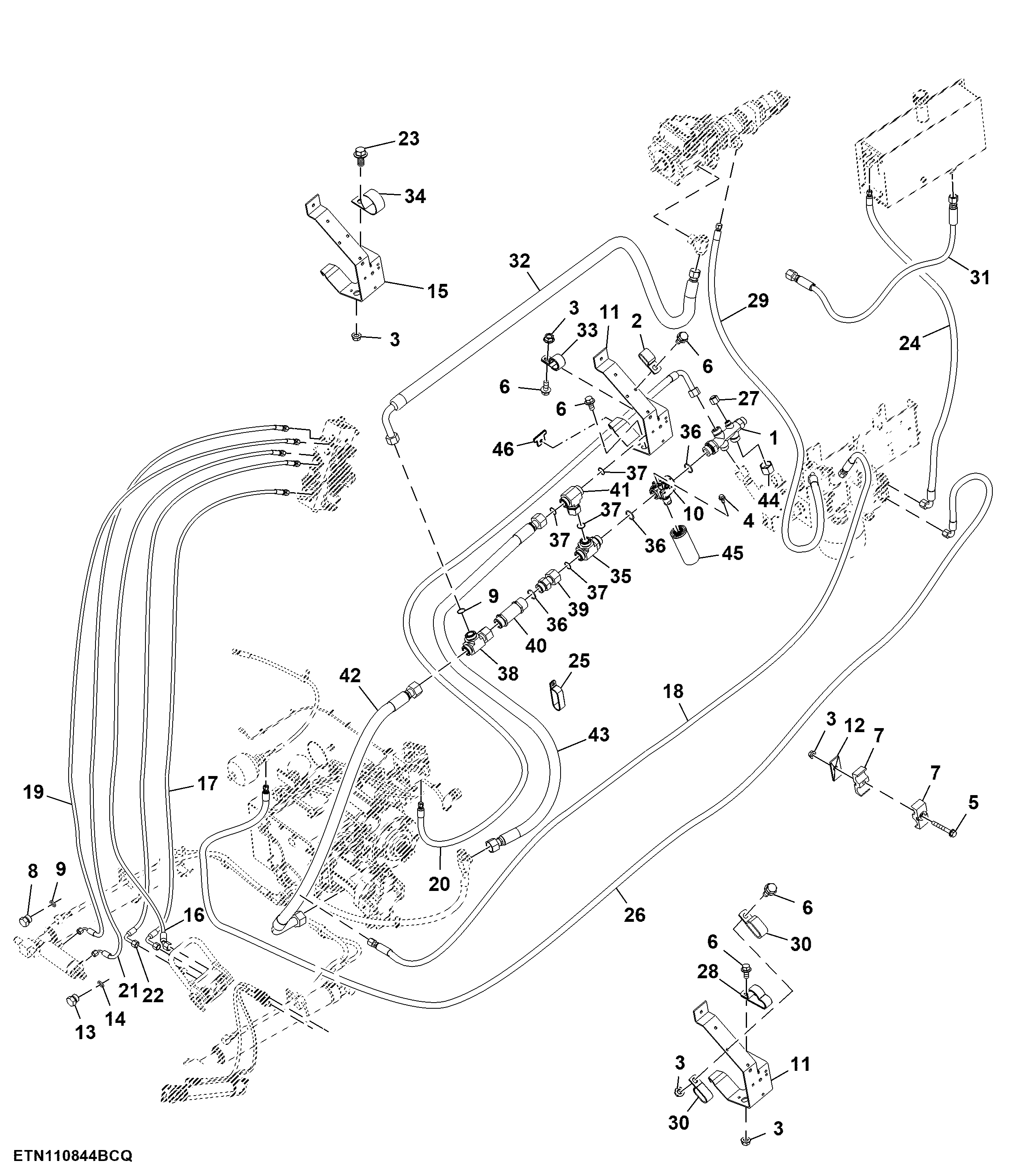

Main Hydraulic Filter Assembly, Hoses and Bundle Supports, W/ Contour-Master™ ProDrive™
