Открытый узел

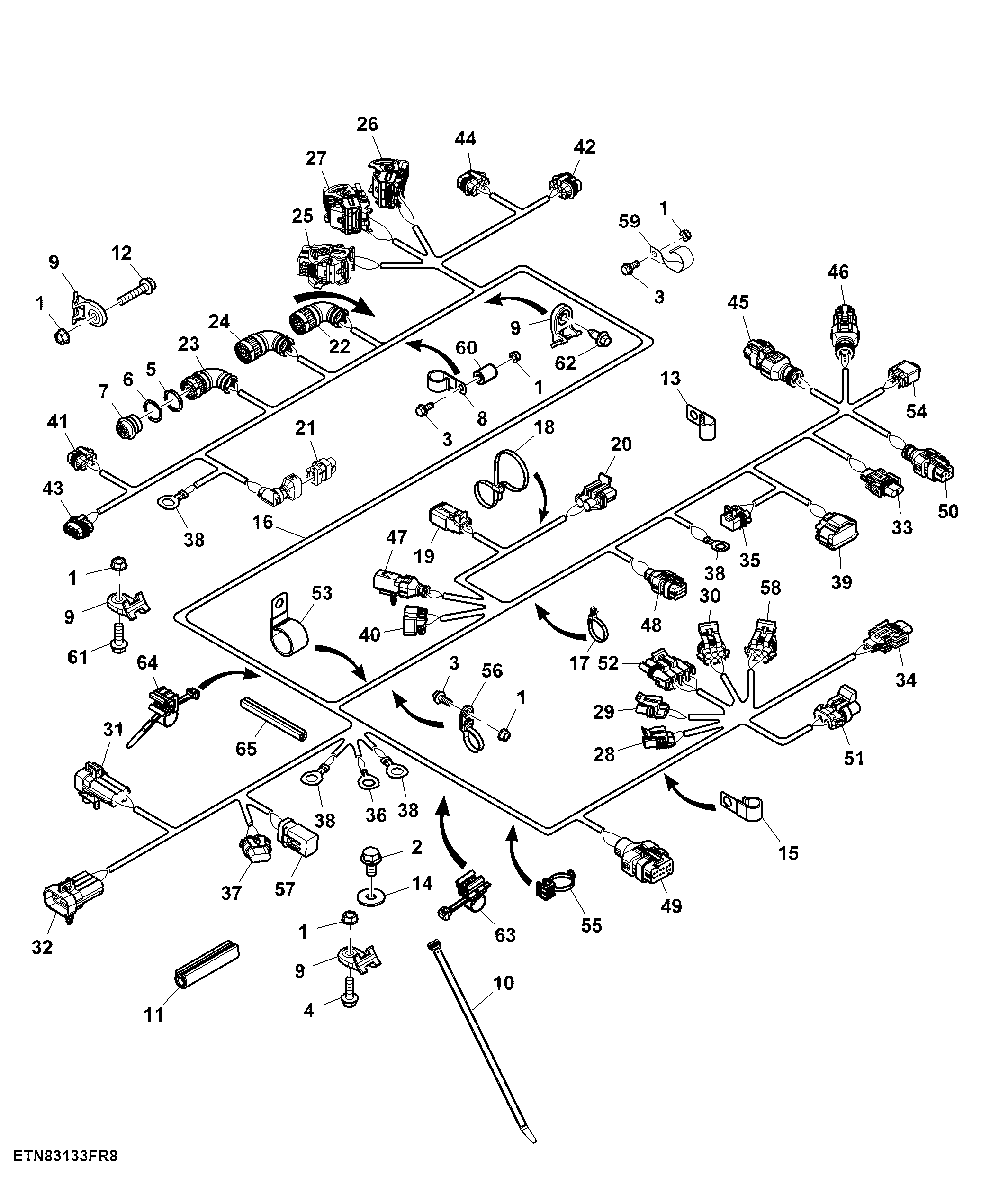

Wiring Harness, Left Control Unit 2 (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
43	57M7299	2	Elec. Connector Terminal	-
43	57M9547	1	Elec. Connector Terminal	-
43	57M9217	2	Elec. Connector Seal	-
43	57M9219	1	Elec. Connector Seal	-
43	57M9218	1	Elec. Connector Seal	-
43	57M9083	1	Elec. Connector Accessory	-
43	57M8986	1	Elec. Connector Housing	Left Power Module 2A
44	57M8986	1	Elec. Connector Housing	Left Power Module 2B
44	57M7491	3	Elec. Connector Terminal	-
44	57M7297	1	Elec. Connector Terminal	-
44	57M7491	1	Elec. Connector Terminal	-
44	57M9216	3	Elec. Connector Seal	-
44	57M9219	2	Elec. Connector Seal	-
44	57M9083	1	Elec. Connector Accessory	-
45	57M10663	2	Elec. Connector Terminal	-
45	57M9837	1	Elec. Connector Accessory	-
45	57M9728	1	Elec. Connector Housing	Left Rear Gullwing Service Light Harness
46	57M9775	1	Elec. Connector Housing	LH Light Arm Harness
46	57M10663	2	Elec. Connector Terminal	-
46	57M9837	1	Elec. Connector Accessory	-
47	57M9789	1	Elec. Connector Housing	Engine Platform Harness
47	57M9812	5	Elec. Connector Terminal	-
47	57M10322	1	Elec. Connector Terminal	-
47	57M9841	1	Elec. Connector Accessory	-
48	57M9792	1	Elec. Connector Housing	Premium Flex Residue Harness
48	57M9808	7	Elec. Connector Terminal	-
48	57M10336	1	Elec. Connector Cavity Plug	-
48	57M9842	1	Elec. Connector Accessory	-
49	57M9844	1	Elec. Connector Accessory	-
49	57M9808	9	Elec. Connector Terminal	-
49	57M9800	1	Elec. Connector Housing	Shoe Harness
49	57M10321	3	Elec. Connector Terminal	-
50	57M9817	1	Elec. Connector Housing	Left Rear Lights Extension Harness
50	57M10631	2	Elec. Connector Terminal	-
50	57M9809	1	Elec. Connector Terminal	-
50	57M10663	1	Elec. Connector Terminal	-
50	57M9839	1	Elec. Connector Accessory	-
51	57M9961	1	Elec. Connector Housing	Chopper Raised Lower Actuator
51	57M7299	2	Elec. Connector Terminal	-
51	57M9216	2	Elec. Connector Seal	-
51	57M9962	1	Elec.Connect Locking Device	-
52	RE12365	1	Electrical Connector Assy	Chopper Raised Lower Switch
52	57M7883	4	Elec. Connector Terminal	-
52	57M9217	4	Elec. Connector Seal	-
53	AH130222	2	Clamp	-
54	57M7955	3	Elec. Connector Seal	-
54	57M11548	3	Elec. Connector Terminal	-
54	57M11677	1	Elec. Connector Housing	Chopper Raised Lower Switch
55	AH225366	2	Clip	-
56	57M10528	5	Elec. Connector Accessory	-
57	57M10207	1	Elec. Connector Housing	Valve Block
57	57M8165	8	Elec. Connector Terminal	-
57	57M9552	1	Elec. Connector Accessory	-
57	57M8011	1	Elec.Connect Locking Device	-
58	57M7260	1	Elec. Connector Housing	-
59	H218743	1	Clip	-
60	H130269	1	Spacer	-
61	19M7868	1	Screw	M8 X 30
62	GX22456	2	Screw	-
63	AH225363	1	Clip	-
64	AH225366	1	Clip	-
65	-	1	Part 62	CTL 150 mm, MF AH122244

Wiring Harness, Left Control Unit 2 (3/3)

Нет текстового описания
