Открытый узел

Main Wiring Harness Left Control Unit 1 (4/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M10270	2	Elec. Connector Terminal	-
1	57M10751	1	Elec. Connector Housing	Threshing Clearance Actuator Motor
1	57M10753	1	Elec. Connector Accessory	-
1	57M10271	2	Elec. Connector Seal	-
2	57M8983	1	Elec. Connector Housing	Left Power Module 2B (J2 Black)
2	57M7299	2	Elec. Connector Terminal	-
2	57M7491	1	Elec. Connector Terminal	-
2	57M9217	2	Elec. Connector Seal	-
2	57M9218	1	Elec. Connector Seal	-
2	R78064	5	Elec. Connector Cavity Plug	-
2	57M9083	1	Elec. Connector Accessory	-
3	57M11697	4	Elec. Connector Terminal	-
3	57M11696	1	Elec. Connector Accessory	-
3	57M11316	10	Elec. Connector Seal	-
3	57M11438	3	Elec. Connector Seal	-
3	57M11303	2	Elec. Connector Terminal	-
3	57M11695	1	Elec. Connector Terminal	-
3	57M11656	1	Elec. Connector Housing	Main Harness Left Control Unit 2
4	57M11695	7	Elec. Connector Terminal	-
4	57M11696	1	Elec. Connector Accessory	-
4	57M11316	2	Elec. Connector Seal	-
4	57M11702	4	Elec. Connector Terminal	-
4	57M11303	10	Elec. Connector Terminal	-
4	57M11667	4	Elec. Connector Terminal	-
4	57M11697	6	Elec. Connector Terminal	-
4	57M11663	1	Elec. Connector Housing	Main Harness Left Control Unit 2
5	57M11654	1	Elec. Connector Housing	Main Harness Left Control Unit 2
5	57M11303	8	Elec. Connector Terminal	-
5	57M11302	3	Elec. Connector Terminal	-
5	57M11697	3	Elec. Connector Terminal	-
5	57M11695	6	Elec. Connector Terminal	-
5	57M11673	2	Elec. Connector Terminal	-
5	57M11316	1	Elec. Connector Seal	-
5	57M11696	1	Elec. Connector Accessory	-
6	57M9083	1	Elec. Connector Accessory	-
6	R78064	5	Elec. Connector Cavity Plug	-
6	57M7299	3	Elec. Connector Terminal	-
6	57M8983	1	Elec. Connector Housing	Left Power Module 2A (J2 Black)
6	57M9217	3	Elec. Connector Seal	-
7	AH225364	2	Clip	-
8	H94433	1	Grommet	-
9	57M7306	1	Elec.Connect Locking Device	-
9	57M9219	2	Elec. Connector Seal	-
9	57M8294	2	Elec. Connector Terminal	-
9	57M7309	1	Elec. Connector Housing	Left Separator Loss Sensor
10	57M9188	3	Clip	-
11	AXE22037	1	Electrical Connector Assy	LF Fuse Center (J8)
11	57M8543	12	Elec. Connector Terminal	-
11	57M8572	2	Elec. Connector Cavity Plug	-
12	57M11302	7	Elec. Connector Terminal	-
12	57M11316	1	Elec. Connector Seal	-
12	57M11702	4	Elec. Connector Terminal	-
12	57M11697	4	Elec. Connector Terminal	-
12	57M11303	8	Elec. Connector Terminal	-
12	57M11695	6	Elec. Connector Terminal	-
12	57M11694	1	Elec. Connector Accessory	-
12	57M11663	1	Elec. Connector Housing	Right Main Harness
12	57M11669	4	Elec. Connector Terminal	-
13	AXE22032	1	Electrical Connector Assy	LF Fuse Center (J7)
13	57M8543	4	Elec. Connector Terminal	-
13	57M8572	6	Elec. Connector Cavity Plug	-
14	AXE22034	1	Electrical Connector Assy	LF Fuse Center (J5)
14	57M8543	10	Elec. Connector Terminal	-
15	57M7299	3	Elec. Connector Terminal	-
15	57M7308	1	Elec. Connector Accessory	-
15	57M9218	1	Elec. Connector Seal	-
15	57M9217	4	Elec. Connector Seal	-
15	57M7491	1	Elec. Connector Terminal	-
15	57M7301	1	Elec. Connector Housing	Right Main Harness
16	AH225365	1	Clip	-
17	AH225363	1	Clip	-
18	57M10517	1	Elec. Connector Housing	Conveyor Auger Speed Sensor
18	57M8165	2	Elec. Connector Terminal	-
18	57M8022	1	Elec.Connect Locking Device	-
18	57M10486	1	Elec. Connector Accessory	-

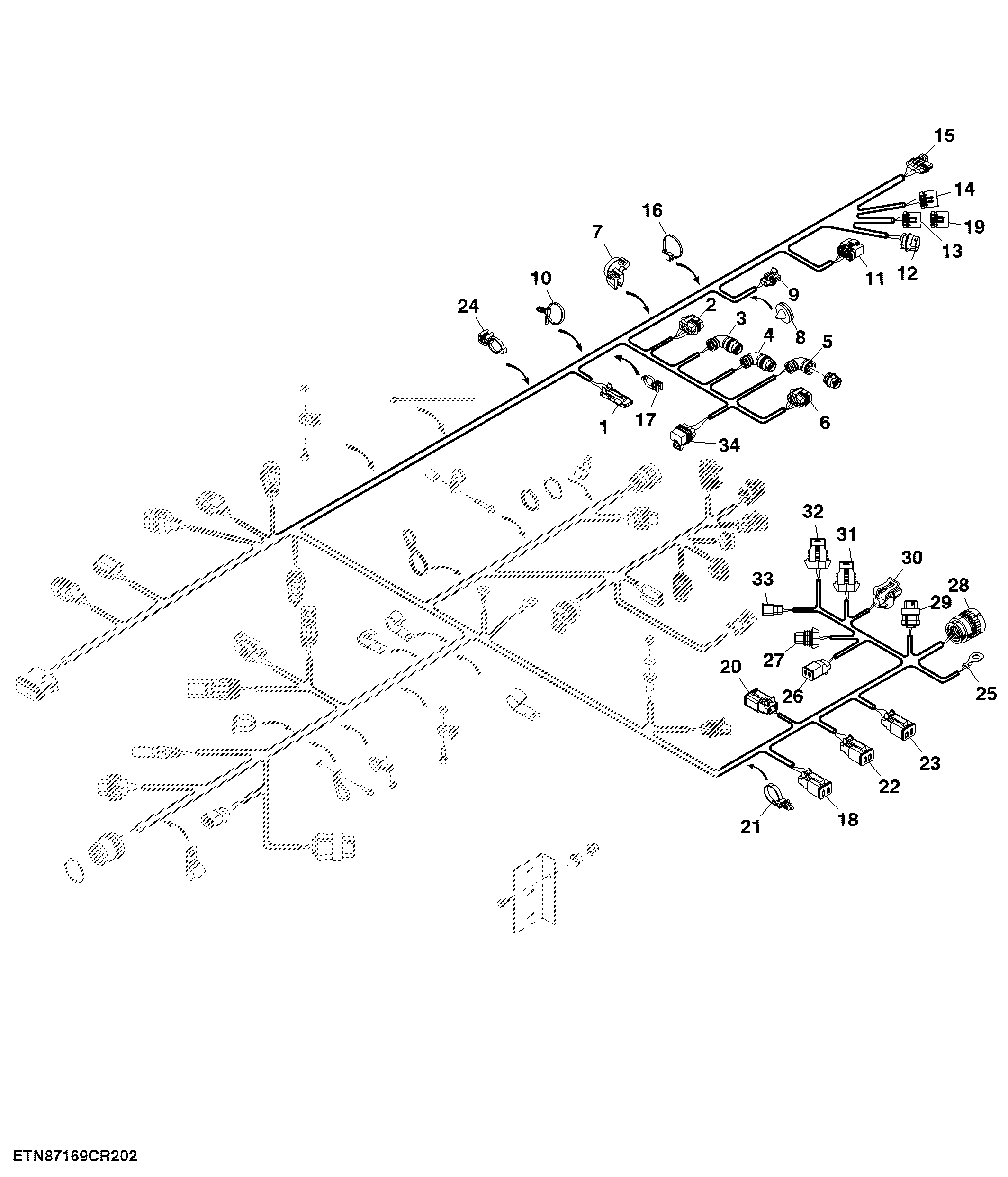

Main Wiring Harness Left Control Unit 1 (4/5)
