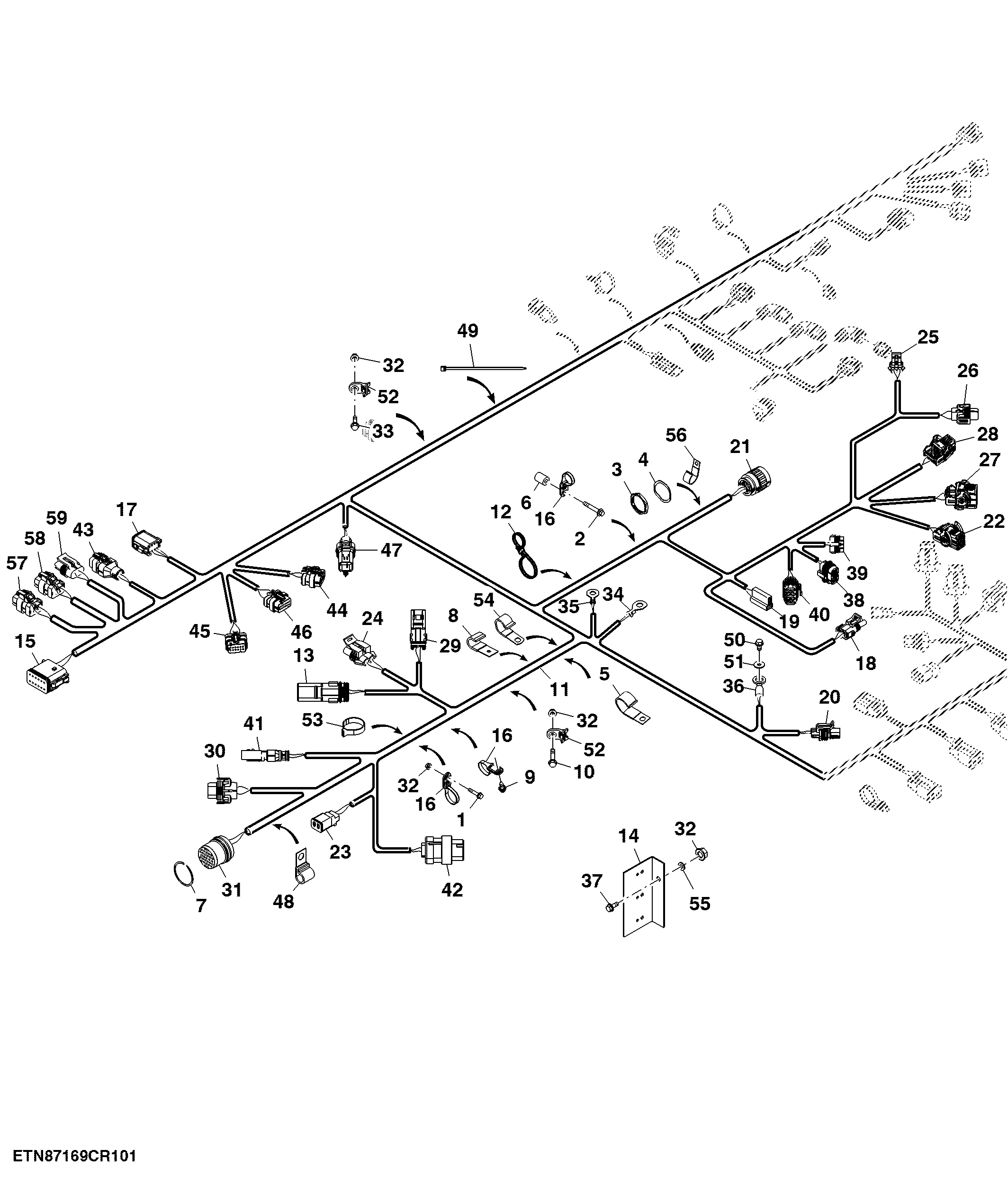

Main Wiring Harness Left Control Unit 1 (2/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
28	57M10333	5	Elec. Connector Cavity Plug	-
28	57M10612	1	Elec. Connector Housing	Left Control Unit 1 (J1)
28	57M10604	1	Elec. Connector Housing	-
28	57M10331	4	Elec. Connector Terminal	-
28	57M10488	3	Elec. Connector Terminal	-
28	57M10618	2	Elec. Connector Housing	-
29	57M8165	2	Elec. Connector Terminal	-
29	57M8022	1	Elec.Connect Locking Device	-
29	57M10486	1	Elec. Connector Accessory	-
29	57M10517	1	Elec. Connector Housing	Feeder House Reverse Solenoid
30	57M7371	1	Electrical Connector Assy	-
30	57M9219	1	Elec. Connector Seal	-
30	57M9216	1	Elec. Connector Seal	-
30	57M7297	1	Elec. Connector Terminal	-
30	57M7491	1	Elec. Connector Terminal	-
30	57M7344	1	Elec. Connector Housing	Left Stubble light
31	57M11370	1	Elec. Connector Housing	Header Harness
31	57M11368	29	Elec. Connector Terminal	-
31	57M11367	2	Elec. Connector Terminal	-
32	14M7298	24	Flange Nut	M8
33	19M7867	20	Screw	M8 X 25
34	57M8867	1	Elec. Connector Terminal	Left Front Chassis Ground 1 (0010U)
35	57M8867	1	Elec. Connector Terminal	Left Front Chassis Ground 1 (0010V)
36	57M8867	1	Elec. Connector Terminal	LC1 Electronics Ground (0020)
37	19M7866	1	Screw	M8 X 20
38	57M8983	1	Elec. Connector Housing	Left Power Module 1A (J2)
38	57M7299	6	Elec. Connector Terminal	-
38	57M9217	6	Elec. Connector Seal	-
38	R78064	2	Elec. Connector Cavity Plug	-
38	57M9083	1	Elec. Connector Accessory	-
39	57M8294	2	Elec. Connector Terminal	-
39	57M9217	3	Elec. Connector Seal	-
39	57M9216	3	Elec. Connector Seal	-
39	57M9083	1	Elec. Connector Accessory	-
39	57M7299	3	Elec. Connector Terminal	-
39	57M7491	3	Elec. Connector Terminal	-
39	57M8985	1	Elec. Connector Housing	Left Power Module 1A (J1)
40	57M9083	1	Elec. Connector Accessory	-
40	57M9217	1	Elec. Connector Seal	-
40	57M9219	1	Elec. Connector Seal	-
40	57M9218	2	Elec. Connector Seal	-
40	57M7299	1	Elec. Connector Terminal	-
40	57M9547	1	Elec. Connector Terminal	-
40	57M9216	3	Elec. Connector Seal	-
40	57M8986	1	Elec. Connector Housing	Left Power Module 1A (J3)
40	R78064	1	Elec. Connector Cavity Plug	-
40	57M7491	3	Elec. Connector Terminal	-
41	57M9784	1	Elec. Connector Housing	Left Front Lights Extension Harness
41	57M9939	1	Elec. Connector Accessory	-
41	57M9838	1	Elec. Connector Accessory	-
42	57M9786	1	Elec. Connector Housing	Feeder House Raise Lower Position Sensor
42	57M10321	3	Elec. Connector Terminal	-
42	57M10336	3	Elec. Connector Cavity Plug	-
42	57M10230	1	Elec. Connector Accessory	-
43	57M9792	1	Elec. Connector Housing	AutoTrac Harness
43	57M9843	1	Elec. Connector Accessory	-
43	57M9796	1	Elec. Connector Housing	-
43	57M10336	2	Elec. Connector Cavity Plug	-
43	57M9808	4	Elec. Connector Terminal	-
43	57M10321	2	Elec. Connector Terminal	-
44	57M10336	2	Elec. Connector Cavity Plug	-
44	57M10663	2	Elec. Connector Terminal	-
44	57M9809	8	Elec. Connector Terminal	-
44	57M9800	1	Elec. Connector Housing	Transmission Harnesses (Red)
44	57M9844	1	Elec. Connector Accessory	-
45	57M9802	1	Elec. Connector Housing	ProDrive™ Controller Harness (Yellow)
45	57M9809	1	Elec. Connector Terminal	-
45	57M10631	10	Elec. Connector Terminal	-
45	57M10336	1	Elec. Connector Cavity Plug	-
45	57M9825	1	Elec. Connector Housing	-
45	57M9940	1	Elec. Connector Accessory	-
45	57M9844	1	Elec. Connector Accessory	-
46	57M9803	1	Elec. Connector Housing	PBST Controller Harness (Green)
46	57M10336	1	Elec. Connector Cavity Plug	-
46	57M9844	1	Elec. Connector Accessory	-
46	57M9940	1	Elec. Connector Accessory	-
46	57M9826	1	Elec. Connector Housing	-
46	57M9809	11	Elec. Connector Terminal	-
47	57M9821	1	Elec. Connector Housing	Chassis Tilt Sensor Harness
47	57M9813	3	Elec. Connector Terminal	-
47	57M10336	1	Elec. Connector Cavity Plug	-
47	57M9939	1	Elec. Connector Accessory	-

Main Wiring Harness Left Control Unit 1 (2/5)
