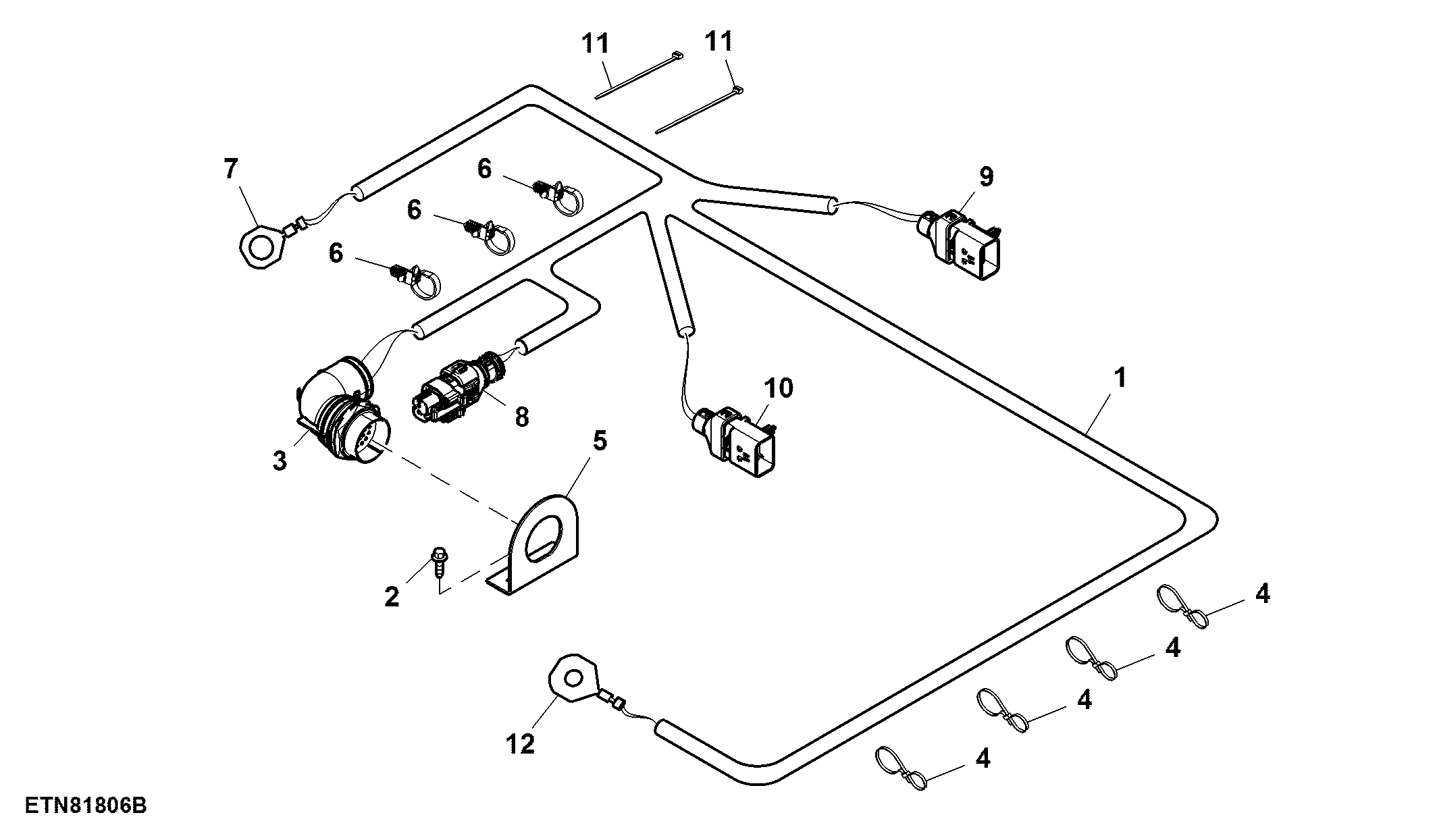

Push Button Shift Transmission Wiring Harness Jumper

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE21777	1	Wiring Harness	-
2	37M7131	2	Screw	M6 X 20
3	57M7750	1	Elec. Connector Housing	Push Button Shift Transmission Extension Harness / Push Button Shift Transmission Harness
3	57M9525	1	Elec. Connector Terminal	Cavity A
3	57M9812	12	Elec. Connector Terminal	Cavity B, C, D, E, F, J, M, N, O, P, R, S
3	57M8164	3	Elec. Connector Terminal	Cavity G, H, Q
3	Z78008	7	Elec. Connector Seal	Cavity K, L, T, U, V, W, X
3	57M8704	1	Elec. Connector Accessory	-
4	57M10421	8	Elec. Connector Accessory	-
5	H224063	1	Plate	-
6	57M10233	3	Tie Band	-
7	57M7083	1	Elec. Connector Terminal	Push Button Shift Transmission Chassis Ground
8	57M10663	1	Elec. Connector Terminal	Cavity 1
8	57M9837	1	Elec. Connector Accessory	-
8	57M9808	1	Elec. Connector Terminal	Cavity 2
8	57M9772	1	Elec. Connector Housing	Push Button Shift Transmission Extension Harness / Push Button Shift Transmission Harness (2-way)
9	57M9826	1	Elec. Connector Housing	LC1 Main Harness / Push Button Shift Transmission Controller Harness
9	57M9844	2	Elec. Connector Accessory	-
9	57M9940	1	Elec. Connector Accessory	-
9	57M9812	8	Elec. Connector Terminal	Cavity 1, 2, 5, 6, 7, 8, 9, 10
9	57M9813	3	Elec. Connector Terminal	Cavity 3, 4, 11
9	57M10336	1	Elec. Connector Cavity Plug	Cavity 12
10	57M9804	1	Elec. Connector Housing	LC1 Main Harness / Transmission Harnesses (Red)
10	57M9813	5	Elec. Connector Terminal	Cavity 5, 6, 10, 11, 12
10	57M10336	7	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 4, 7, 8, 9
11	H77698	2	Tie Band	-
12	57M11373	1	Elec. Connector Terminal	Push Button Shift Transmission Redundant Park Brake Ground

Push Button Shift Transmission Wiring Harness Jumper
