Открытый узел

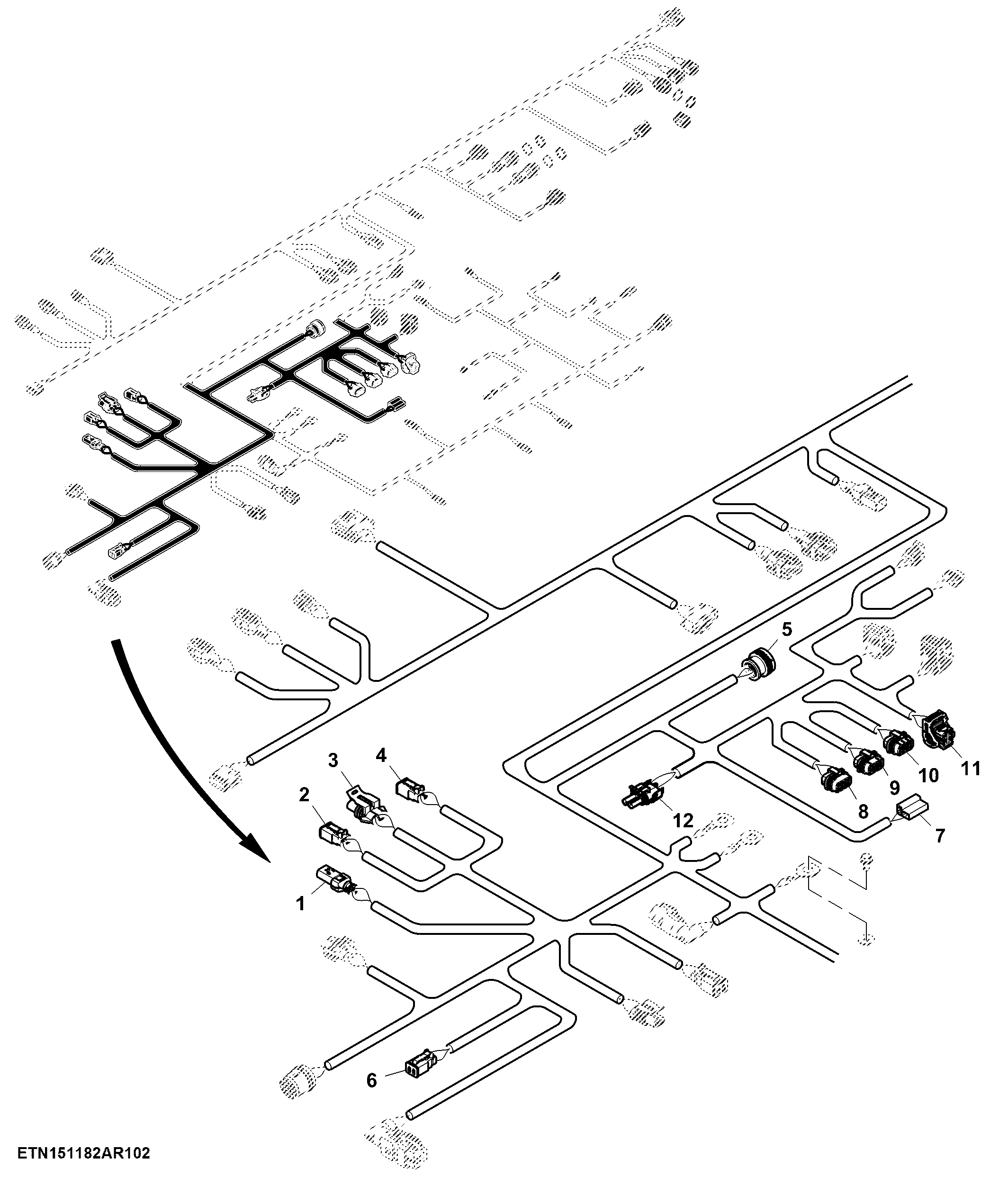

Left Control Unit 1 Main Wiring Harness (2 of 5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M11742	2	Elec. Connector Terminal	-
1	57M9813	1	Elec. Connector Terminal	-
1	57M9838	1	Elec. Connector Accessory	-
1	57M9939	1	Elec. Connector Accessory	-
1	57M9784	1	Elec. Connector Housing	LC1 Main Harness / Left Front Extension Harness (Lighting)
2	57M10517	1	Elec. Connector Housing	Reel Reverse Solenoid
2	57M8165	2	Elec. Connector Terminal	-
2	57M10486	1	Elec. Connector Accessory	-
2	57M8022	1	Elec.Connect Locking Device	-
3	R104846	2	Elec. Connector Terminal	-
3	57M9556	1	Elec. Connector Accessory	-
3	57M9215	2	Elec. Connector Seal	-
3	57M7254	1	Elec. Connector Housing	Reel Speed Adjust Solenoid
4	57M10517	1	Elec. Connector Housing	Feeder House Reverse Solenoid
4	57M8165	2	Elec. Connector Terminal	-
4	57M10486	1	Elec. Connector Accessory	-
4	57M8022	1	Elec.Connect Locking Device	-
5	57M7546	3	Elec. Connector Terminal	-
5	57M11694	1	Elec. Connector Accessory	-
5	R78069	6	Elec. Connector Cavity Plug	-
5	57M9526	1	Elec. Connector Terminal	-
5	57M8569	3	Elec. Connector Terminal	-
5	57M8165	2	Elec. Connector Terminal	-
5	57M9808	4	Elec. Connector Terminal	-
5	57M9513	1	Elec. Connector Housing	LC1 Main Harness / Left Grain Tank Harness
6	57M10517	1	Elec. Connector Housing	Feed Accelerator Speed Sensor
6	57M8165	2	Elec. Connector Terminal	-
6	57M10486	1	Elec. Connector Accessory	-
6	57M8022	1	Elec.Connect Locking Device	-
7	R77476	1	Electrical Connector Assy	Windshield Washer Pump Motor
7	57M9199	2	Elec. Connector Terminal	-
8	57M9547	1	Elec. Connector Terminal	-
8	57M9217	1	Elec. Connector Seal	-
8	57M9083	1	Elec. Connector Accessory	-
8	R78064	1	Elec. Connector Cavity Plug	-
8	57M9216	3	Elec. Connector Seal	-
8	57M9218	2	Elec. Connector Seal	-
8	57M7299	1	Elec. Connector Terminal	-
8	57M7491	3	Elec. Connector Terminal	-
8	57M8986	1	Elec. Connector Housing	Left Power Module 1A (J3)
8	57M9219	1	Elec. Connector Seal	-
9	57M8983	1	Elec. Connector Housing	Left Power Module 1A
9	57M7299	5	Elec. Connector Terminal	-
9	57M8294	1	Elec. Connector Terminal	-
9	57M9217	5	Elec. Connector Seal	-
9	57M9219	1	Elec. Connector Seal	-
9	R78064	2	Elec. Connector Cavity Plug	-
9	57M9083	1	Elec. Connector Accessory	-
10	57M8294	2	Elec. Connector Terminal	-
10	57M9083	1	Elec. Connector Accessory	-
10	57M9217	2	Elec. Connector Seal	-
10	57M9216	3	Elec. Connector Seal	-
10	57M7299	3	Elec. Connector Terminal	-
10	57M7491	3	Elec. Connector Terminal	-
10	57M8985	1	Elec. Connector Housing	Left Power Module 1A (J1)
11	57M10606	1	Elec. Connector Housing	Control Unit LC1
11	57M10488	9	Elec. Connector Terminal	-
11	57M10590	12	Elec. Connector Housing	-
11	57M10331	7	Elec. Connector Terminal	-
11	57M10333	3	Elec. Connector Cavity Plug	-
11	57M10334	1	Elec. Connector Cavity Plug	-
11	57M10604	1	Elec. Connector Housing	-
12	RE12363	1	Electrical Connector Assy	-
12	R78060	2	Elec. Connector Terminal	-
12	57M9219	2	Elec. Connector Seal	-
12	R78053	1	Electrical Connector Assy	-

Left Control Unit 1 Main Wiring Harness (2 of 5)

Нет текстового описания
