Открытый узел

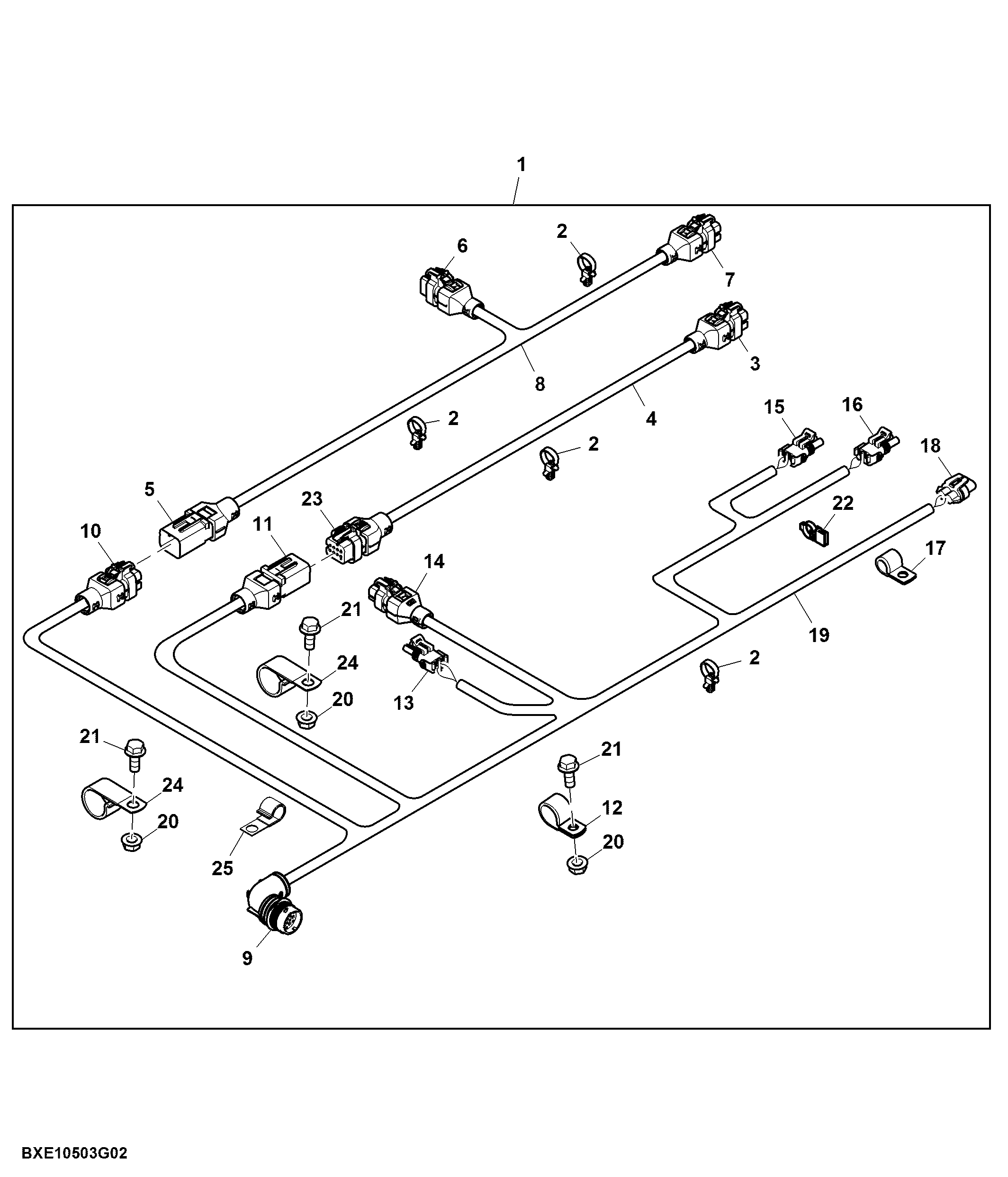

Grain Tank Wiring Harness, Active Yield™ Sensor Kit W/ Auger Covers, Attachment (2 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE10797	1	Sensor Kit	-
2	57M10233	19	Tie Band	-
3	57M9809	1	Elec. Connector Terminal	-
3	57M9786	1	Elec. Connector Housing	Rear Left Force Sensor
3	57M9841	1	Elec. Connector Accessory	-
3	57M10663	3	Elec. Connector Terminal	-
3	57M9808	2	Elec. Connector Terminal	-
4	AXE54398	1	Wiring Harness	Autocal Rear Force Sensor, STS
5	57M9796	1	Elec. Connector Housing	Grain Tank Harness / Autocal Jumper
5	57M10336	1	Elec. Connector Cavity Plug	-
5	57M10603	1	Elec. Connector Terminal	-
5	57M9812	4	Elec. Connector Terminal	-
5	57M9813	2	Elec. Connector Terminal	-
5	57M9843	1	Elec. Connector Accessory	-
6	57M9786	1	Elec. Connector Housing	Front Center Force Sensor
6	57M9808	2	Elec. Connector Terminal	-
6	57M9809	1	Elec. Connector Terminal	-
6	57M9814	1	Elec. Connector Cavity Plug	-
6	57M9841	1	Elec. Connector Accessory	-
7	57M9841	1	Elec. Connector Accessory	-
7	57M9808	2	Elec. Connector Terminal	-
7	57M9786	1	Elec. Connector Housing	Front Left Force Sensor
7	57M9809	4	Elec. Connector Terminal	-
8	AXE48321	1	Wiring Harness	Autocal Front Force Sensors, STS
9	57M9511	1	Elec. Connector Housing	Right Main Harness / Right Grain Tank Harness
9	57M8264	6	Elec. Connector Terminal	-
9	57M8704	1	Elec. Connector Accessory	-
9	57M9525	2	Elec. Connector Terminal	-
9	R78068	1	Elec. Connector Terminal	-
9	R78069	10	Elec. Connector Cavity Plug	-
10	57M9792	1	Elec. Connector Housing	Grain Tank Harness / Autocal Jumper
10	57M9843	1	Elec. Connector Accessory	-
10	57M9809	1	Elec. Connector Terminal	-
10	57M9808	4	Elec. Connector Terminal	-
10	57M10663	2	Elec. Connector Terminal	-
10	57M10336	1	Elec. Connector Cavity Plug	-
11	57M9843	1	Elec. Connector Accessory	-
11	57M9813	2	Elec. Connector Terminal	-
11	57M10603	1	Elec. Connector Terminal	-
11	57M10336	1	Elec. Connector Cavity Plug	-
11	57M9812	4	Elec. Connector Terminal	-
11	57M9796	1	Elec. Connector Housing	Grain Tank Harness / Autocal Jumper
12	AH78237	2	Clamp	-
13	RE12363	1	Electrical Connector Assy	Full Grain Tank Switch
13	57M10924	2	Elec. Connector Terminal	-
13	57M9219	2	Elec. Connector Seal	-
13	R78053	1	Electrical Connector Assy	-
13	R78064	2	Elec. Connector Cavity Plug	-
14	57M9817	1	Elec. Connector Housing	Chopper Speed Sensor
14	57M10319	2	Elec. Connector Terminal	-
14	57M9808	3	Elec. Connector Terminal	-
14	57M9840	1	Elec. Connector Accessory	-
15	RE12363	1	Electrical Connector Assy	Full Grain Tank Switch
15	57M10924	2	Elec. Connector Terminal	-
15	57M9219	2	Elec. Connector Seal	-
16	57M9219	2	Elec. Connector Seal	-
16	RE12363	1	Electrical Connector Assy	Full Grain Tank Switch
16	57M10924	2	Elec. Connector Terminal	-
17	AH80916	1	Clip	-
18	57M8128	1	Electrical Connector Assy	Right Row Finder Light
18	57M9216	1	Elec. Connector Seal	-
18	57M7491	1	Elec. Connector Terminal	-
18	57M9218	1	Elec. Connector Seal	-
18	57M8129	1	Elec. Connector Terminal	-
19	AXE73308	1	Wiring Harness	Grain Tank W/Autocal, Right STS
20	14M7298	4	Flange Nut	M8
21	19M7866	3	Screw	M8 X 20
22	57M10362	3	Clamp	-
23	57M9792	1	Elec. Connector Housing	Grain Tank Harness / Autocal Rear Left Force Sensor
23	57M10663	2	Elec. Connector Terminal	-
23	57M9808	4	Elec. Connector Terminal	-
23	57M9809	1	Elec. Connector Terminal	-
23	57M10336	1	Elec. Connector Cavity Plug	-
23	57M9843	1	Elec. Connector Accessory	-
24	AH90990	2	Clip	-
25	AH96317	1	Clip	-

Grain Tank Wiring Harness, Active Yield™ Sensor Kit W/ Auger Covers, Attachment (2 of 2)
