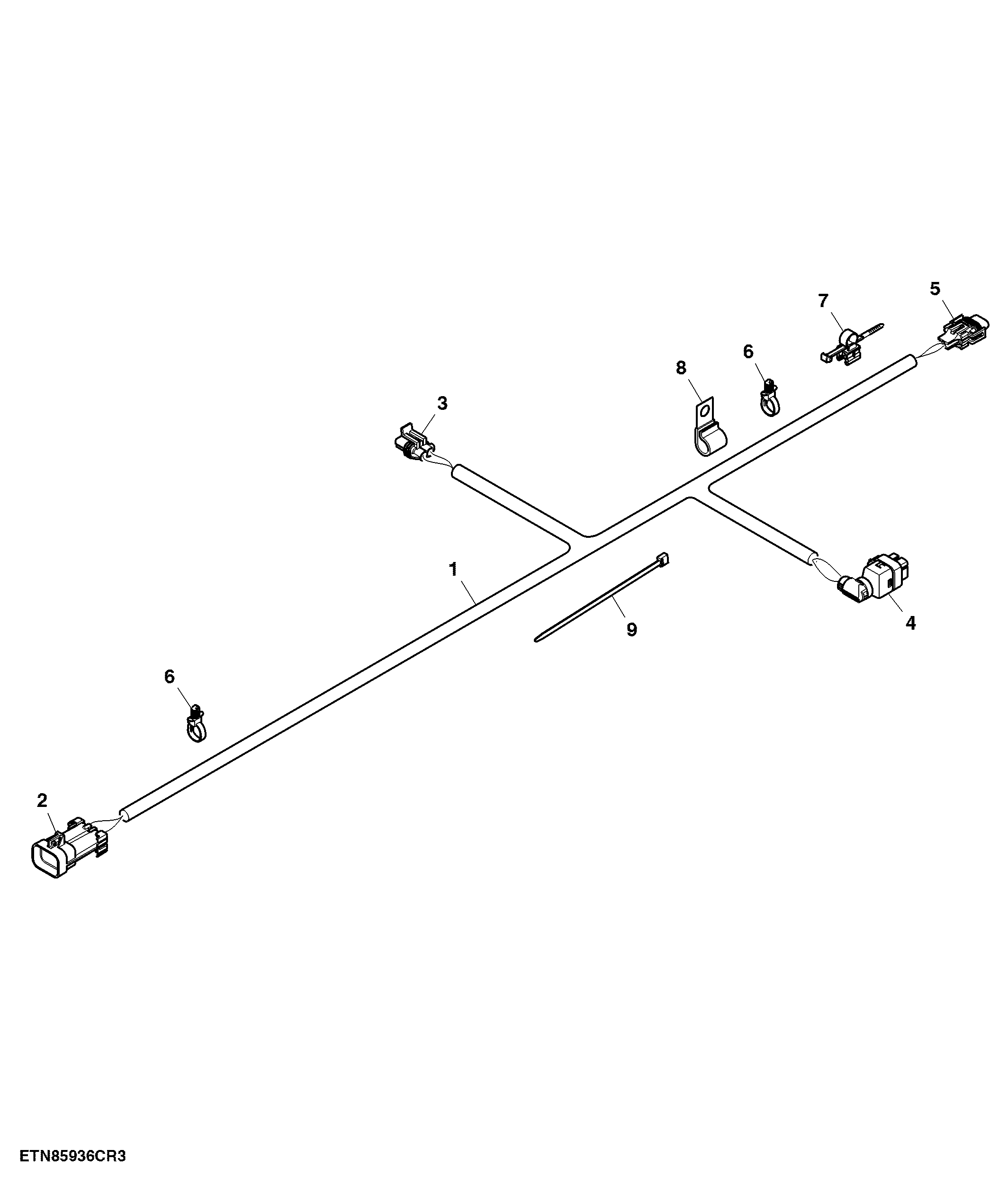

Folding Unloading Auger Wiring Harness

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE48356	1	Wiring Harness	SUB FOR AXE40876
2	57M7697	1	Electrical Connector Assy	Grain Tank / Unloading Harness
2	57M11342	2	Elec. Connector Terminal	-
2	57M10407	3	Elec. Connector Terminal	-
2	57M7582	2	Elec. Connector Terminal	-
2	57M7258	2	Elec. Connector Seal	-
2	57M9214	3	Elec. Connector Seal	-
2	57M7575	2	Elec. Connector Terminal	-
2	57M7699	1	Elec. Connector Terminal	-
2	57M9555	1	Clip	-
3	57M10737	1	Elec. Connector Accessory	-
3	57M9217	2	Elec. Connector Seal	-
3	57M7299	2	Elec. Connector Terminal	-
3	57M7309	1	Elec. Connector Housing	Folding Unloading Auger Actuator
4	57M9786	1	Elec. Connector Housing	Folding Unloading Auger Position Sensor
4	57M10229	1	Elec. Connector Accessory	-
4	57M9808	3	Elec. Connector Terminal	-
4	57M10336	3	Elec. Connector Cavity Plug	-
4	57M10230	1	Elec. Connector Accessory	-
5	57M7344	1	Elec. Connector Housing	Unloading Auger Light
5	57M7298	2	Elec. Connector Terminal	-
5	R78059	2	Elec. Connector Seal	-
5	57M7371	1	Electrical Connector Assy	-
6	57M10233	7	Tie Band	-
7	AH225363	1	Clip	-
8	AH96317	1	Clip	-
9	R44302	2	Tie Band	-

Folding Unloading Auger Wiring Harness

Нет текстового описания
