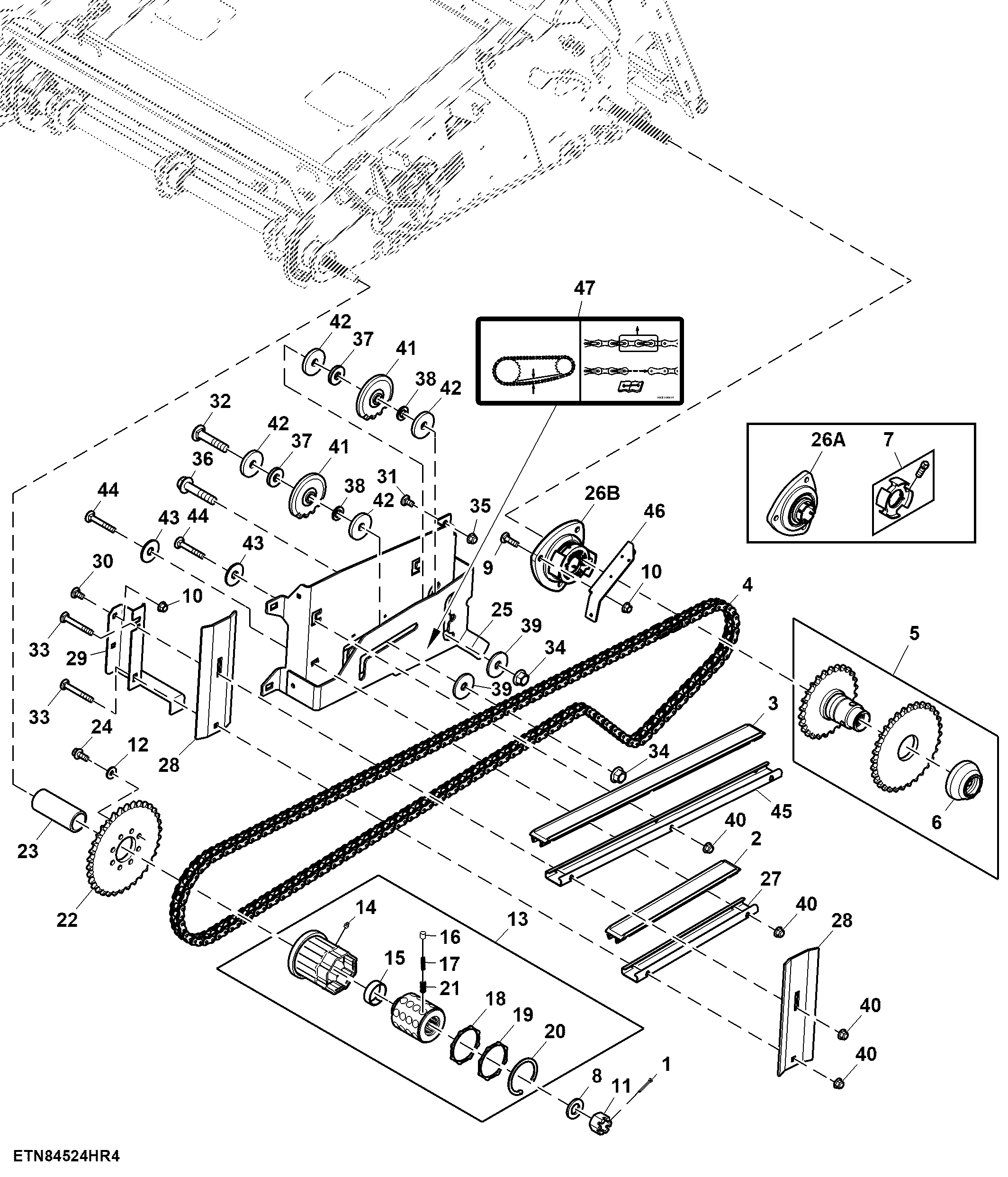

Feeder House Drives, W/ Fixed Speed, RH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7032	1	Cotter Pin	5 X 50 mm
2	H172475	1	Guide	-
3	H234587	1	Guide	-
4	AH232566	1	Link Chain	L = 189, ORDER AXE72709
4	AXE80366	1	Link Chain	L = 189, SUB FOR AXE72709
5	AH232426	1	Drive Sprocket	Z = 26/32
6	AH154743	1	Quick Coupler	-
7	AXE18703	1	Wheel	USE WITH AH231479
8	A58549	1	Washer	-
9	03M7193	3	Bolt	M10 X 35
10	14M7296	5	Flange Nut	M10
11	14M7189	1	Nut	M24
12	24H1308	8	Washer	13/32" X 1" X 0.134"
13	AXE22402	1	Slip Clutch	-
14	H168925	2	Lubrication Fitting	-
15	H228264	1	Bushing	-
16	M86290	32	Cam	-
17	M86292	32	Compression Spring	-
18	M86293	1	Ring	-
19	M86294	1	Ring	-
20	M86295	1	Ring	-
21	E77073	32	Compression Spring	-
22	H219634	1	Chain Sprocket	Z = 34
23	H219635	1	Spacer	-
24	H144962	8	Screw	-
25	AXE16328	1	Bracket	-
27	HXE111873	1	Support	SUB FOR H172472 APPL
28	H234585	2	Plate	-
29	H235021	1	Bracket	-
30	03M7190	2	Bolt	M10 X 20
31	03M7198	4	Bolt	M12 X 30
32	03M7212	1	Bolt	M16 X 80
33	03M7218	2	Bolt	M10 X 80
34	14M7291	2	Flange Nut	M16
35	14M7299	4	Flange Nut	M12
36	19M7827	1	Screw	M16 X 80
37	24H1698	2	Washer	21/32" X 1-5/8" X 1/4"
38	24M7053	2	Washer	17 X 30 X 3 mm
39	24M7103	2	Washer	17.500 X 56 X 5 mm
40	14M7400	5	Lock Nut	M10
41	AXE19940	2	Idler Sprocket	SUB FOR AE27909
42	H129716	4	Washer	-
43	24M7315	3	Washer	17 X 50 X 3 mm
44	03M7104	3	Bolt	M10 X 70
45	HXE111854	1	Support	SUB FOR H234586 APPL
46	HXE126411	1	Bracket	SUB FOR H229121
47	HXE146916	1	Label	Caution; Remove Connecting Links
26A	AH231479	1	Bearing With Housing	-
26B	AXE68018	1	Bearing With Housing	SUB FOR AH231479

Feeder House Drives, W/ Fixed Speed, RH
