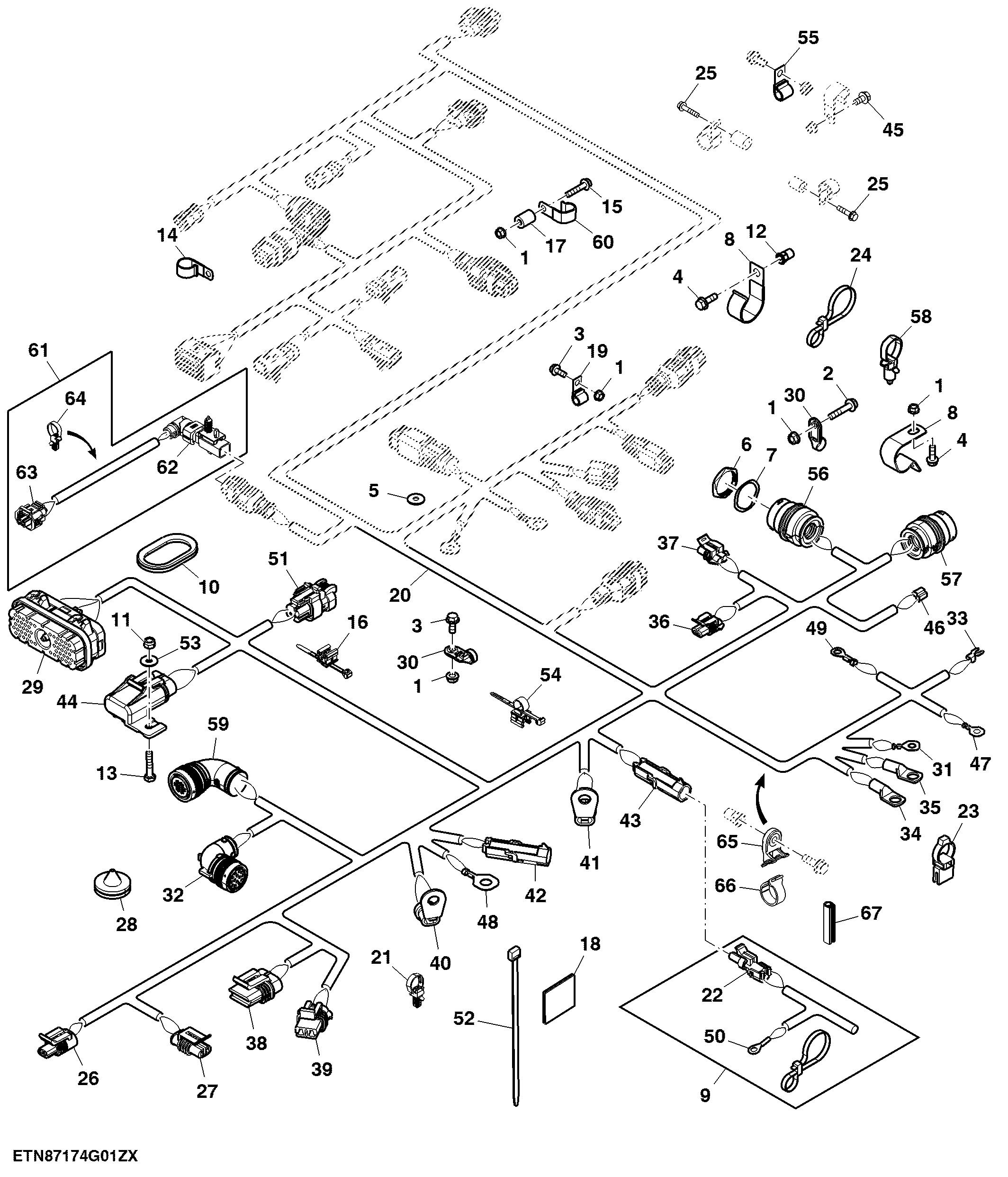

Engine Wiring Harness, Final Tier 4 (2 of 4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
51	57M9837	1	Elec. Connector Accessory	-
51	57M9806	2	Elec. Connector Terminal	-
51	57M9774	1	Elec. Connector Housing	In Line Engine Harness Final Tier 4
52	R44302	2	Tie Band	-
53	24M7146	1	Washer	4.300 X 12 X 1 mm
54	AH225363	1	Clip	-
55	AH89557	1	Clip	-
56	N282069	6	Elec. Connector Terminal	-
56	57M8164	1	Elec. Connector Terminal	-
56	57M10485	1	Elec. Connector Accessory	-
56	57M9810	1	Elec. Connector Terminal	-
56	57M8592	4	Elec. Connector Terminal	-
56	57M8260	1	Elec. Connector Terminal	-
56	R78069	2	Elec. Connector Cavity Plug	-
56	Z78008	4	Elec. Connector Seal	-
56	57M9511	1	Elec. Connector Housing	Engine Platfrom Harness
57	57M10322	2	Elec. Connector Terminal	-
57	57M10485	1	Elec. Connector Accessory	-
57	57M9525	1	Elec. Connector Terminal	-
57	57M9810	1	Elec. Connector Terminal	-
57	57M8164	1	Elec. Connector Terminal	-
57	N282069	3	Elec. Connector Terminal	-
57	Z78008	10	Elec. Connector Seal	-
57	57M11418	1	Elec. Connector Housing	Engine Platfrom Harness
57	57M9812	5	Elec. Connector Terminal	-
58	57M10492	1	Elec. Connector Accessory	-
59	57M9514	1	Elec. Connector Housing	Engine Harness (SCR & DEF), Final Tier 4
59	R78069	1	Elec. Connector Cavity Plug	-
59	57M7546	23	Elec. Connector Terminal	-
59	N282070	6	Elec. Connector Terminal	-
59	57M8704	1	Elec. Connector Accessory	-
60	AH96317	15	Clip	-
61	AXE41726	1	Wiring Harness	-
62	57M9776	1	Elec. Connector Housing	Engine Platfrom Harness / SCR Dosing Extention Harness
62	57M10322	2	Elec. Connector Terminal	-
62	57M10155	1	Elec. Connector Accessory	-
62	57M9940	1	Elec. Connector Accessory	-
63	57M10315	1	Elec. Connector Housing	Y5020 SCR Dosing Control Valve FT4
63	57M9832	2	Elec. Connector Terminal	-
63	57M9149	2	Elec. Connector Seal	-
64	57M10233	2	Tie Band	-
65	H224072	2	Clamp	-
66	H224073	2	Tie Band	-
67	H229171	1	Weatherstrip	-

Engine Wiring Harness, Final Tier 4 (2 of 4)
