Тип техники

Бренд

Машина

Открытый узел

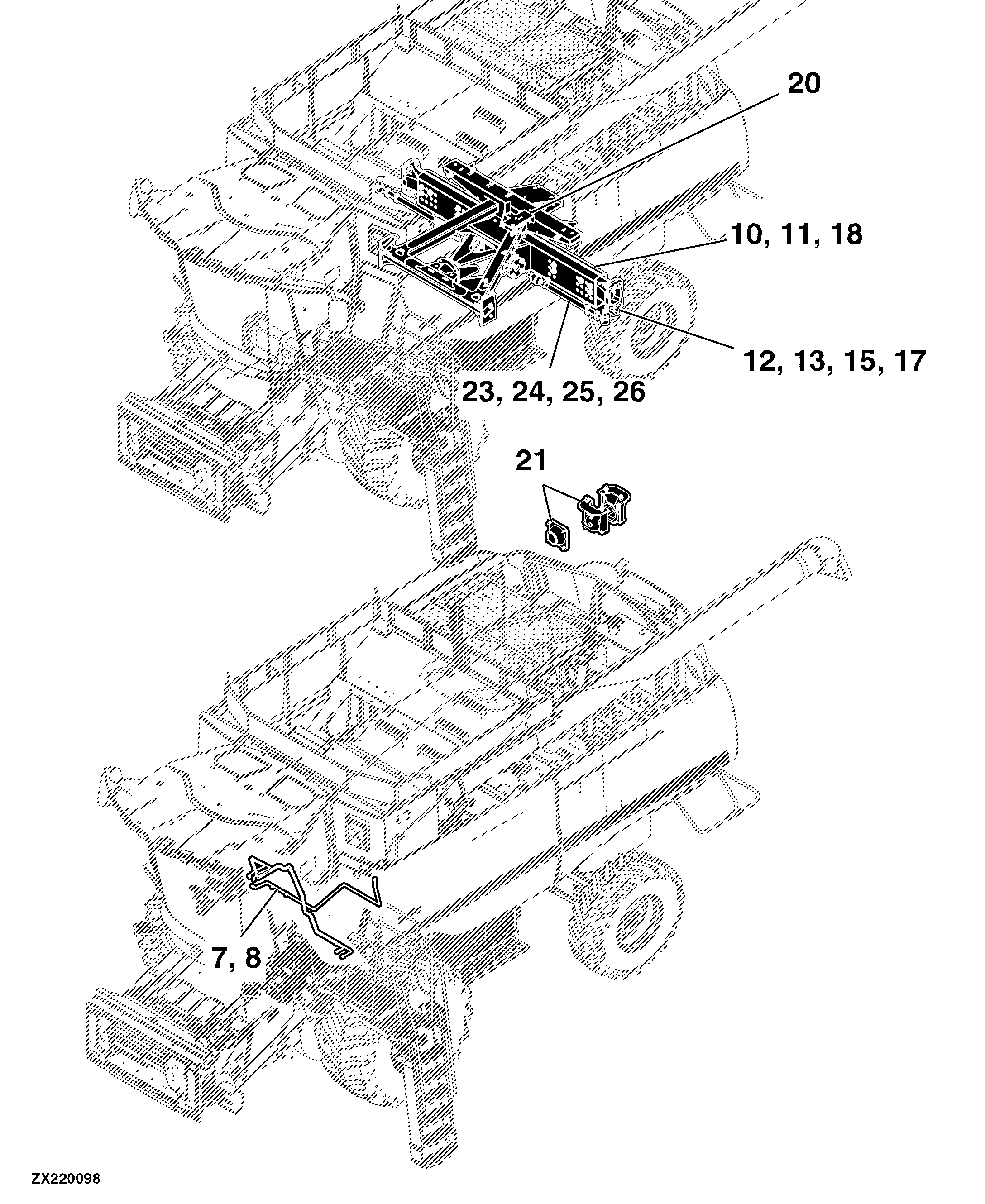

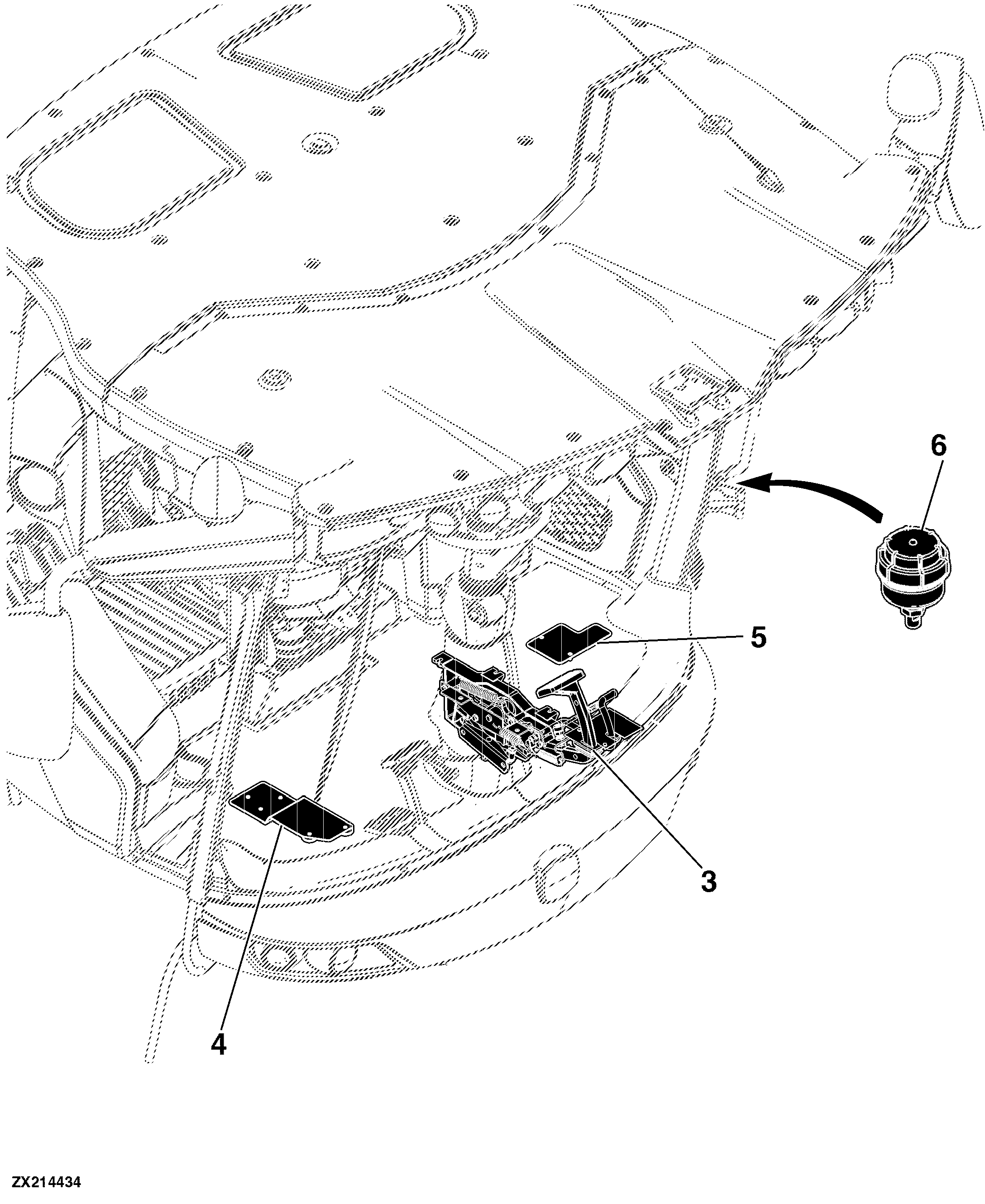

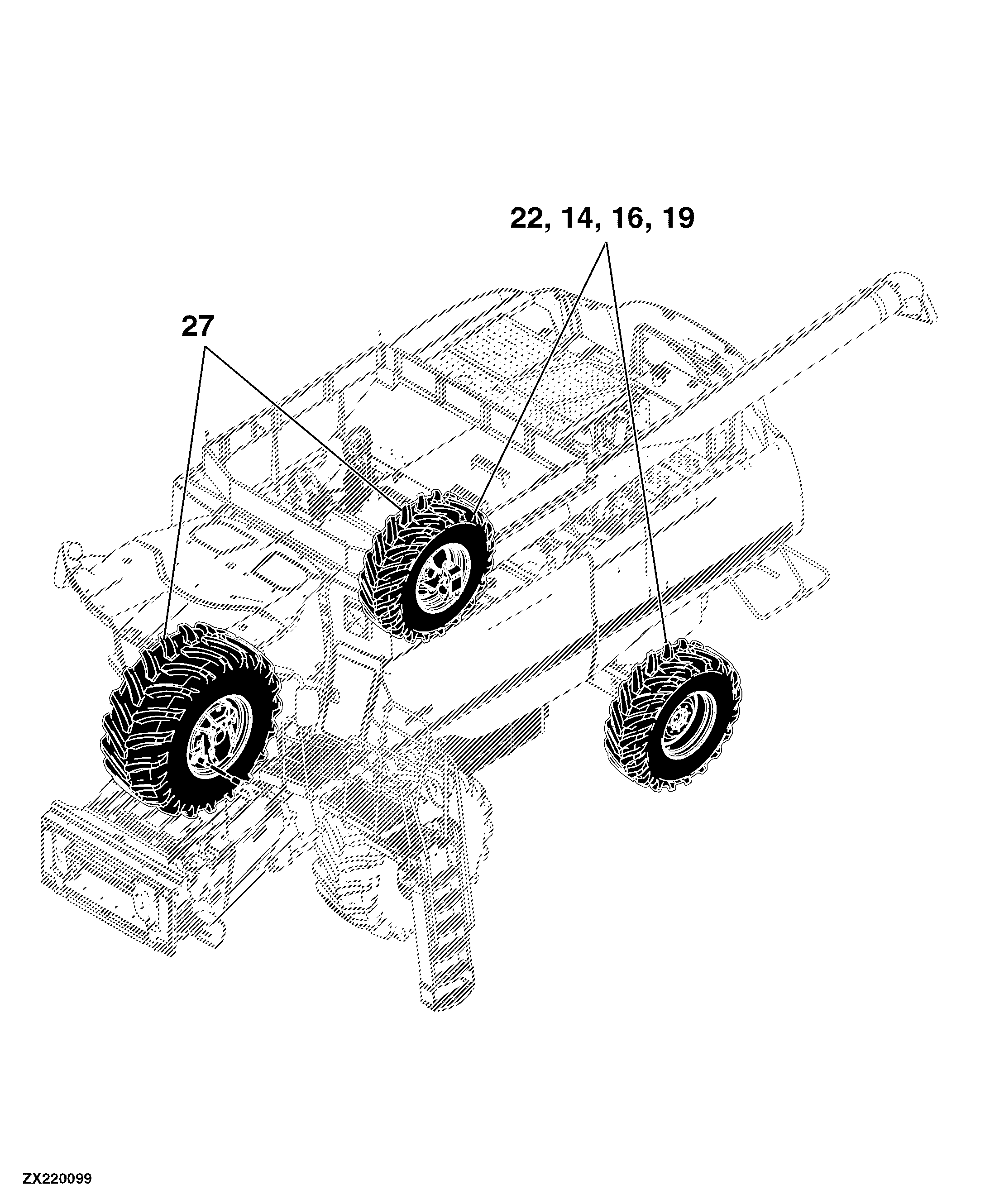

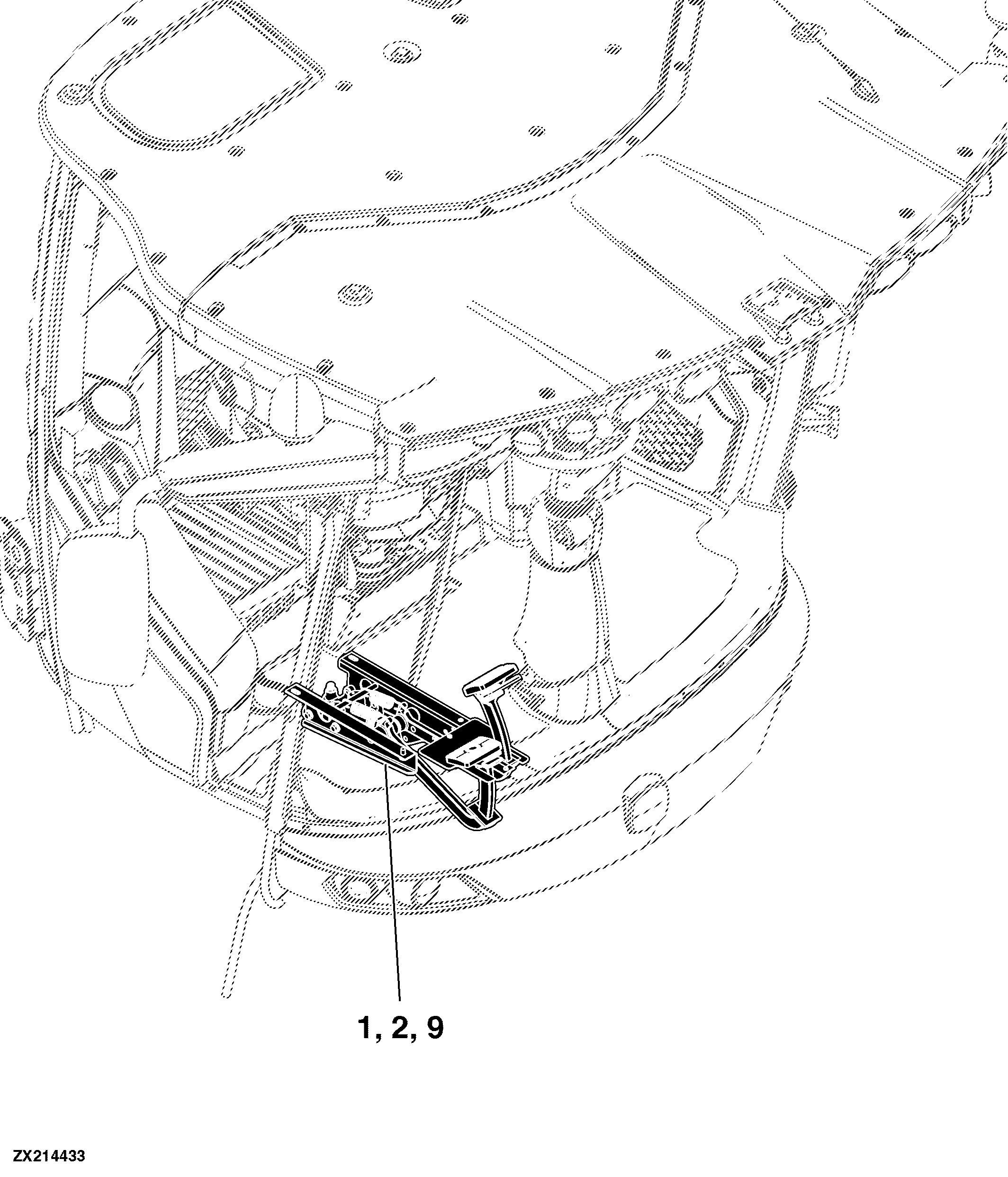

60 Steering, Brakes, Rear Axle Combine S660 - MY15

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Rear Axle Extension, Heavy Duty 3.5 m 2WD	-
-	-	1	Tie Rod, Extra Heavy Duty	-
-	-	1	Tie Rod, 4WD	-
-	-	1	Tie Rod, 2WD	-
-	-	1	Tie Rod Assembly, Standard 2WD	-
-	-	1	Rear Wheel Bolts and Spacers, Heavy Duty, 2WD	-
-	-	1	Rear Wheel Assembly	-
-	-	1	Rear Wheel Assembly	-
-	-	1	Rear Wheel Assembly	-
-	-	1	Rear Axle, Heavy Duty, 3.5 m Adjustable	-
-	-	1	Rear Axle, Heavy Duty Standard Adjustable, W/O 3rd Axle	-
-	-	1	Rear Axle, Frame Mounting Hardware, Standard, Level land Models	-
-	-	1	Rear Axle, 3.5 m Adjustable, Extra Heavy Duty, W/O 3rd Axle	-
-	-	1	Rear Axle Extension, Heavy Duty, Standard 2WD	-
-	-	1	Brake Fluid Reservoir	-
-	-	1	Rear Axle Extension, Extra Heavy Duty, 3.5 m 4WD	-
-	-	1	Rear Axle Extension, Extra Heavy Duty, 3.5 m 2WD	-
-	-	1	Park Brake Cover Plate	-
-	-	1	Master Brake Cylinder Yoke and Pushrod W/O ProDrive™	-
-	-	1	Main Frame, Wide Body Hardware	-
-	-	1	Hand Brake Assembly	-
-	-	1	Gearshift Lever Plate	-
-	-	1	Drive / Rear Wheel Bolts and Spacers	-
-	-	1	Brake Pedals, ProDrive™	-
-	-	1	Brake Pedals Assembly	-
-	-	1	Brake Lines	-
-	-	1	Brake Line Fitting	-

60 Steering, Brakes, Rear Axle Combine S660 - MY15

Нет текстового описания
