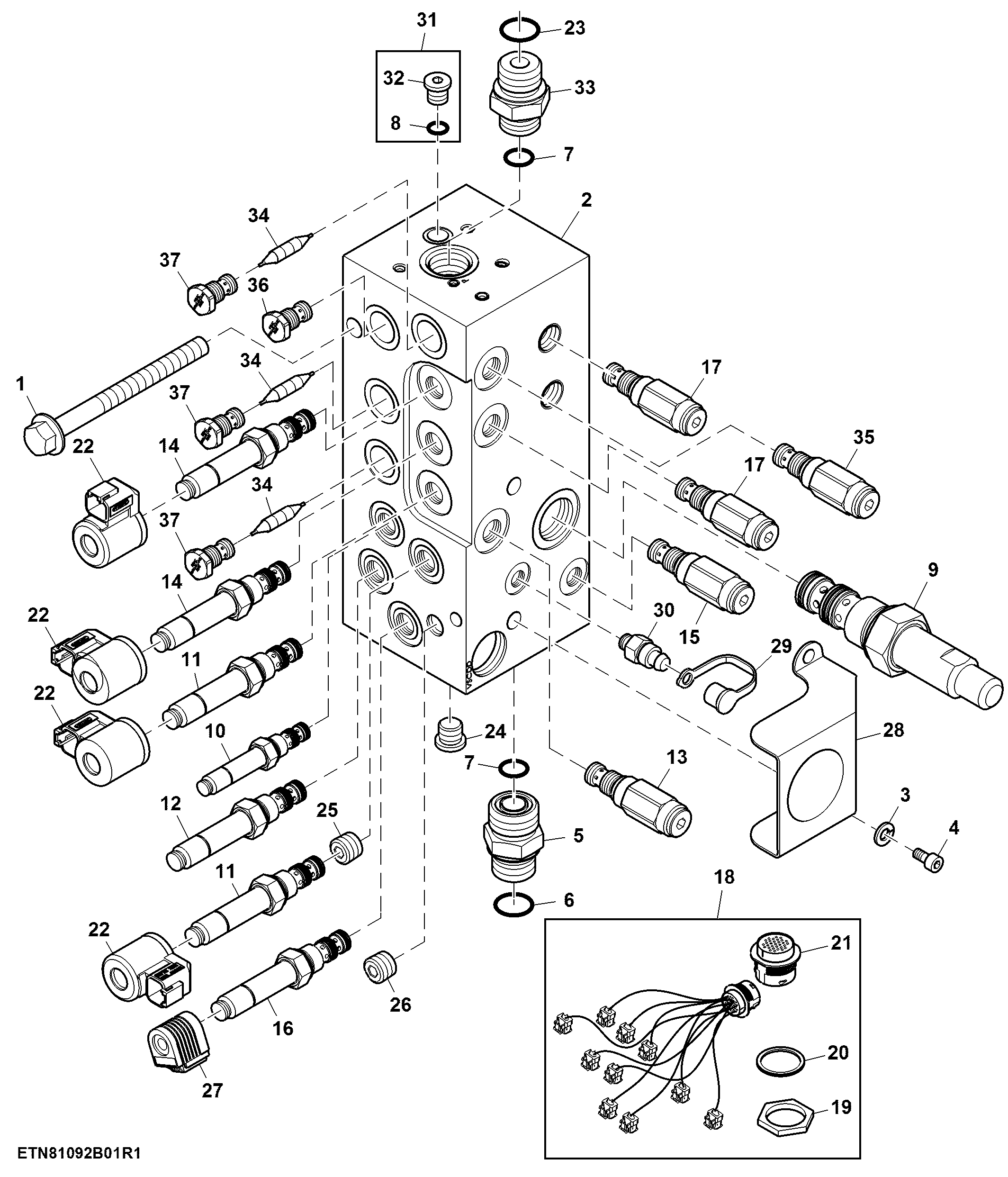

Control Valve, Valve Stack, W/ Counter Master, 7 Function (1 of 2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7836	2	Screw	M10 X 110
2	AXE62071	1	Flow Control Hyd. Valve	SUB FOR AXE27430
3	12H302	2	Lock Washer	1/4"
4	19M7887	2	Screw	M5 X 10
5	38H5004	1	Adapter Fitting	-
6	T77932	1	O-Ring	-
7	51M7045	2	O-Ring	19.300 X 2.200 mm
8	51M7041	1	O-Ring	11.300 X 2.200 mm
9	AXE27337	1	Pressure Relief Valve	-
9	AXE27426	1	Seal Kit	-
10	AXE27411	1	Solenoid Hydraulic Valve	-
10	AXE27424	1	Seal Kit	-
11	AXE27339	2	Solenoid Hydraulic Valve	-
11	AXE27414	2	Seal Kit	-
12	AXE27338	1	Solenoid Hydraulic Valve	-
12	AXE25429	1	Seal Kit	-
13	AXE27412	1	Pressure Relief Valve	-
14	AXE27415	3	Solenoid Hydraulic Valve	-
14	AXE27425	1	Seal Kit	-
15	AXE27417	1	Pressure Relief Valve	-
16	AXE27420	1	Solenoid Hydraulic Valve	-
17	AXE27417	2	Pressure Relief Valve	-
18	57M8165	1	Elec. Connector Terminal	-
18	57M7534	1	Elec. Connector Housing	-
18	57M7666	1	Elec. Connector Housing	-
18	AXE27422	1	Wiring Harness	-
18	57M7620	1	Electrical Connector Assy	-
19	57M8035	1	Nut	-
20	57M9061	1	Elec.Connect Locking Device	-
21	N282069	1	Elec. Connector Terminal	-
22	AXE27423	8	Solenoid Valve Coil	-
23	T77857	1	O-Ring	-
24	AXE27413	2	Orifice	-
25	HXE42664	1	Orifice	-
26	HXE42668	1	Orifice	-
27	AXE27435	1	Solenoid Valve Coil	-
28	HXE42669	1	Bracket	-
29	R77175	1	Cover	-
30	RE190805	1	Diagnostic Coupling	-
31	RE46684	1	Fitting Plug	-
32	R107768	1	Drain Plug	-
33	38H5076	1	Adapter Fitting	-
34	AXE27421	3	Piston	-
35	AXE27419	1	Pressure Relief Valve	-
35	AXE27424	1	Seal Kit	-
36	AXE27418	1	Check Valve	-
37	AXE27416	3	Check Valve	-
