Wiring Harness, Left Control unit 1, STS (3 of 4 )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE34180	1	Wiring Harness	SUB FOR AXE17400 AND AXE22364
2	57M11370	1	Elec. Connector Housing	Header Extesion
2	57M11369	3	Elec. Connector Terminal	-
2	57M9808	23	Elec. Connector Terminal	-
2	57M11368	5	Elec. Connector Terminal	-
3	57M9786	1	Elec. Connector Housing	Feeder House Position
3	57M9808	1	Elec. Connector Terminal	-
4	57M10517	1	Elec. Connector Housing	Feeder ACC Speed
4	57M8165	1	Elec. Connector Terminal	-
4	57M8022	1	Elec.Connect Locking Device	-
4	57M10486	1	Elec. Connector Accessory	-
5	57M10517	1	Elec. Connector Housing	Convey Auger Speed
5	57M8165	1	Elec. Connector Terminal	-
5	57M8022	1	Elec.Connect Locking Device	-
5	57M10486	1	Elec. Connector Accessory	-
6	57M8165	1	Elec. Connector Terminal	-
6	57M10486	1	Elec. Connector Accessory	-
6	57M8022	1	Elec.Connect Locking Device	-
6	57M10517	1	Elec. Connector Housing	Fan Speed
7	57M10517	1	Elec. Connector Housing	Clean Grain Speed
7	57M8165	1	Elec. Connector Terminal	-
7	57M8022	1	Elec.Connect Locking Device	-
7	57M10486	1	Elec. Connector Accessory	-
8	57M9514	1	Elec. Connector Housing	Valve Harness
8	57M8165	1	Elec. Connector Terminal	-
8	57M9526	1	Elec. Connector Terminal	-
8	57M10485	1	Elec. Connector Accessory	-
9	57M8866	1	Elec. Connector Terminal	Valve Ground
10	57M7496	1	Elec. Connector Terminal	-
10	57M7796	1	Elec. Connector Housing	Rotor Drive Pressure
11	57M7796	1	Elec. Connector Housing	Hydraulic Lift Cylinder Pressure
11	57M7496	1	Elec. Connector Terminal	-
12	57M7254	1	Elec. Connector Housing	Accumulator Shutoff
12	57M10770	1	Elec. Connector Terminal	-
12	57M9556	1	Elec. Connector Accessory	-
13	57M8021	1	Electrical Connector Assy	Header Raise
13	57M8165	1	Elec. Connector Terminal	-
13	57M8022	1	Elec.Connect Locking Device	-
13	57M10486	1	Elec. Connector Accessory	-
14	57M7254	1	Elec. Connector Housing	Header Lower
14	57M10770	1	Elec. Connector Terminal	-
14	57M9556	1	Elec. Connector Accessory	-
15	57M8165	1	Elec. Connector Terminal	-
15	57M8022	1	Elec.Connect Locking Device	-
15	57M10517	1	Elec. Connector Housing	Grain Tank Cover Open
16	57M7254	1	Elec. Connector Housing	Grain Tank Cover Close
16	57M10770	1	Elec. Connector Terminal	-
16	57M9712	1	Elec. Connector Accessory	-
17	57M7254	3	Elec. Connector Housing	Tailing Speed
17	57M10770	1	Elec. Connector Terminal	-
17	57M9712	1	Elec. Connector Accessory	-
18	57M11408	1	Elec. Connector Housing	Tresher Clear Sensor
18	57M9223	3	Elec. Connector Seal	-
18	57M8299	3	Elec. Connector Terminal	-
18	57M9474	1	Elec. Connector Terminal	-
19	57M9652	1	Elec. Connector Terminal	Trash Clear Sensor
19	57M8165	3	Elec. Connector Terminal	-
19	57M11285	1	Elec. Connector Accessory	-

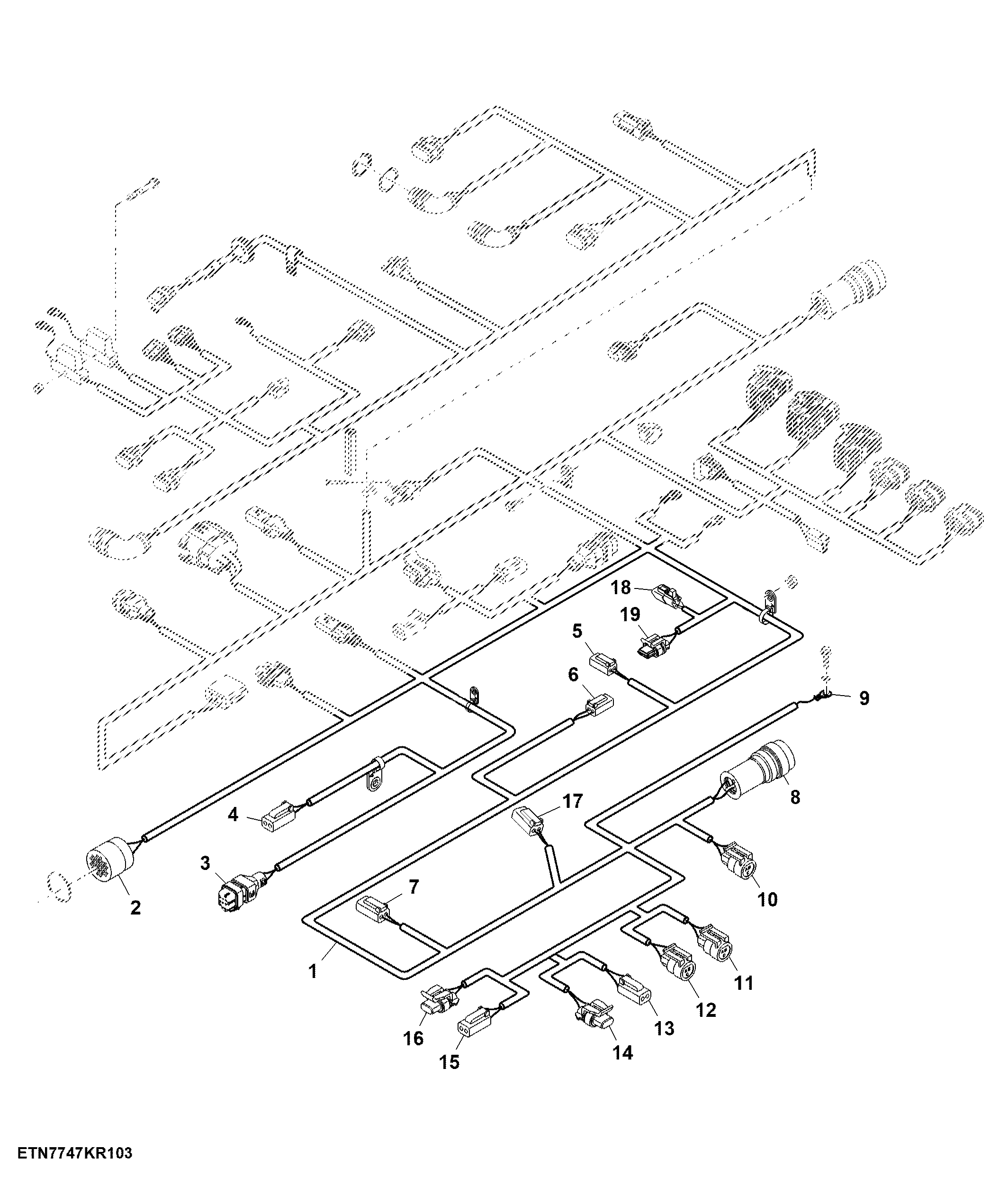

Wiring Harness, Left Control unit 1, STS (3 of 4 )
