Wiring Harness, Advanced PowerCast™ Attachment (3 of 4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE18015	1	Wiring Harness	-
2	57M9511	1	Elec. Connector Housing	Inline to Jumper, LH
2	57M9812	6	Elec. Connector Terminal	-
2	57M8260	4	Elec. Connector Terminal	-
2	57M8035	1	Nut	Panel Nut
2	57M9061	1	Elec.Connect Locking Device	-
3	AH225364	2	Clip	-
4	AH225363	3	Clip	-
5	57M10233	9	Tie Band	-
6	57M7494	4	Elec. Connector Terminal	-
6	57M9562	2	Elec. Connector Cable Seal	-
6	57M7377	4	Elec. Connector Seal	-
6	57M7698	1	Elec. Connector Terminal	Terminal Position Assurance
6	57M7581	2	Elec. Connector Terminal	-
6	57M7696	1	Elec. Connector Housing	Left Shroud Motor
7	AZ61547	1	Elec. Connector Housing	Spreader Speed
7	57M8165	2	Elec. Connector Terminal	-
7	57M8022	1	Elec.Connect Locking Device	Wedge Lock
8	57M7377	2	Elec. Connector Seal	-
8	57M7289	1	Elec.Connect Locking Device	Terminal Position Assurance
8	57M7254	1	Elec. Connector Housing	Lateral Tilt Spreader Speed
8	57M7494	2	Elec. Connector Terminal	-
9	H94433	2	Grommet	-
10	AZ61547	1	Elec. Connector Housing	Spreader Speed Sensor, LH
10	57M9808	2	Elec. Connector Terminal	-
10	57M8022	1	Elec.Connect Locking Device	Wedge Lock
10	57M10486	1	Elec. Connector Accessory	Back Shell
11	AZ61547	1	Elec. Connector Housing	Spreader Speed Sensor, RH
11	57M9808	2	Elec. Connector Terminal	-
11	57M8022	1	Elec.Connect Locking Device	Wedge Lock
11	57M10486	1	Elec. Connector Accessory	Back Shell
12	57M7696	1	Elec. Connector Housing	Right Shroud Motor
12	57M9562	2	Elec. Connector Cable Seal	-
12	57M7377	4	Elec. Connector Seal	-
12	57M7698	1	Elec. Connector Terminal	Terminal Position Assurance
12	57M7581	2	Elec. Connector Terminal	-
12	57M7494	4	Elec. Connector Terminal	-
13	57M7750	1	Elec. Connector Housing	Inline to Jumper, RH
13	57M8164	4	Elec. Connector Terminal	-
13	57M9812	3	Elec. Connector Terminal	-
13	57M8035	1	Nut	Panel Nut
13	57M9061	1	Elec.Connect Locking Device	Lock Washer

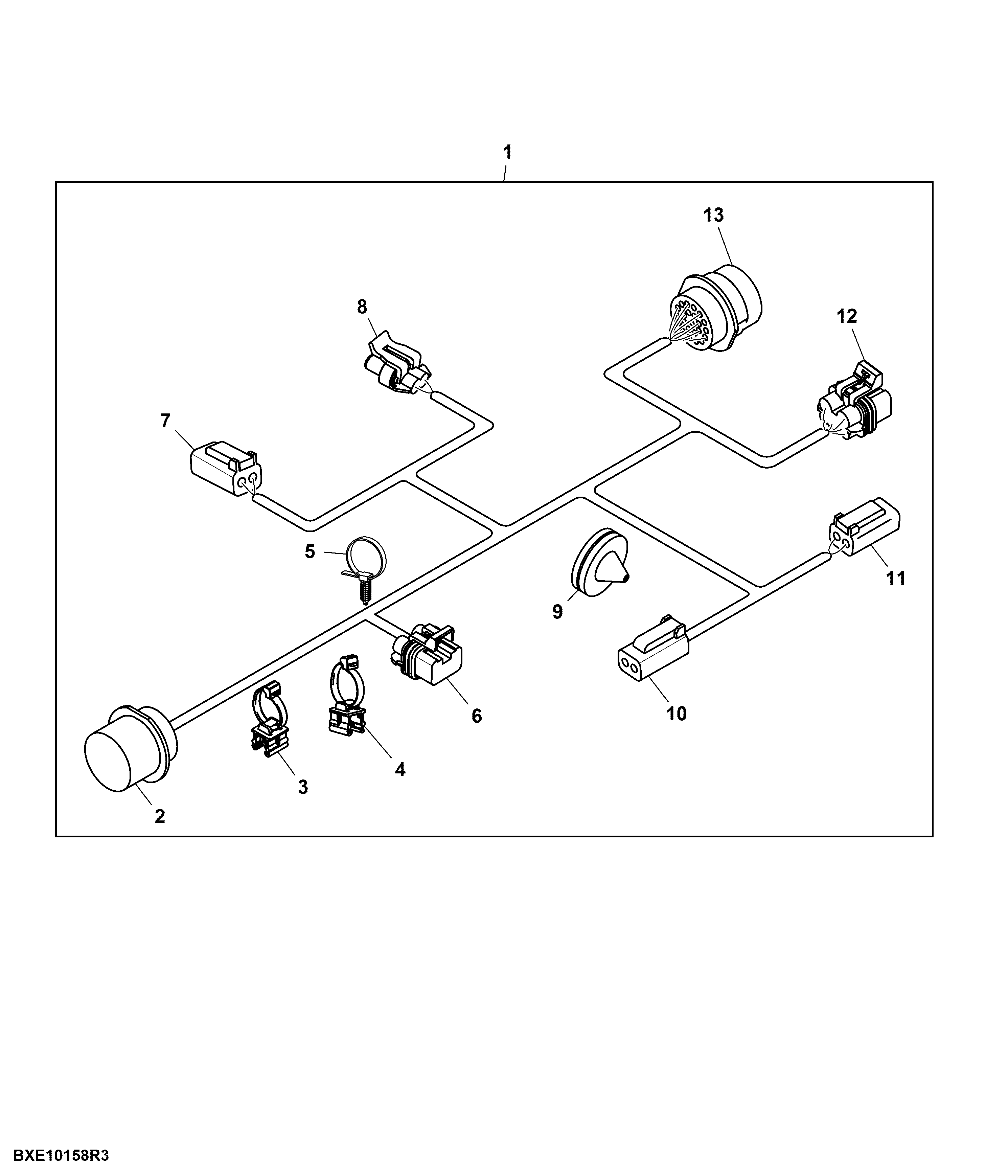

Wiring Harness, Advanced PowerCast™ Attachment (3 of 4)
