Two - Speed C-Frame, Pivots and Caps-Motor

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

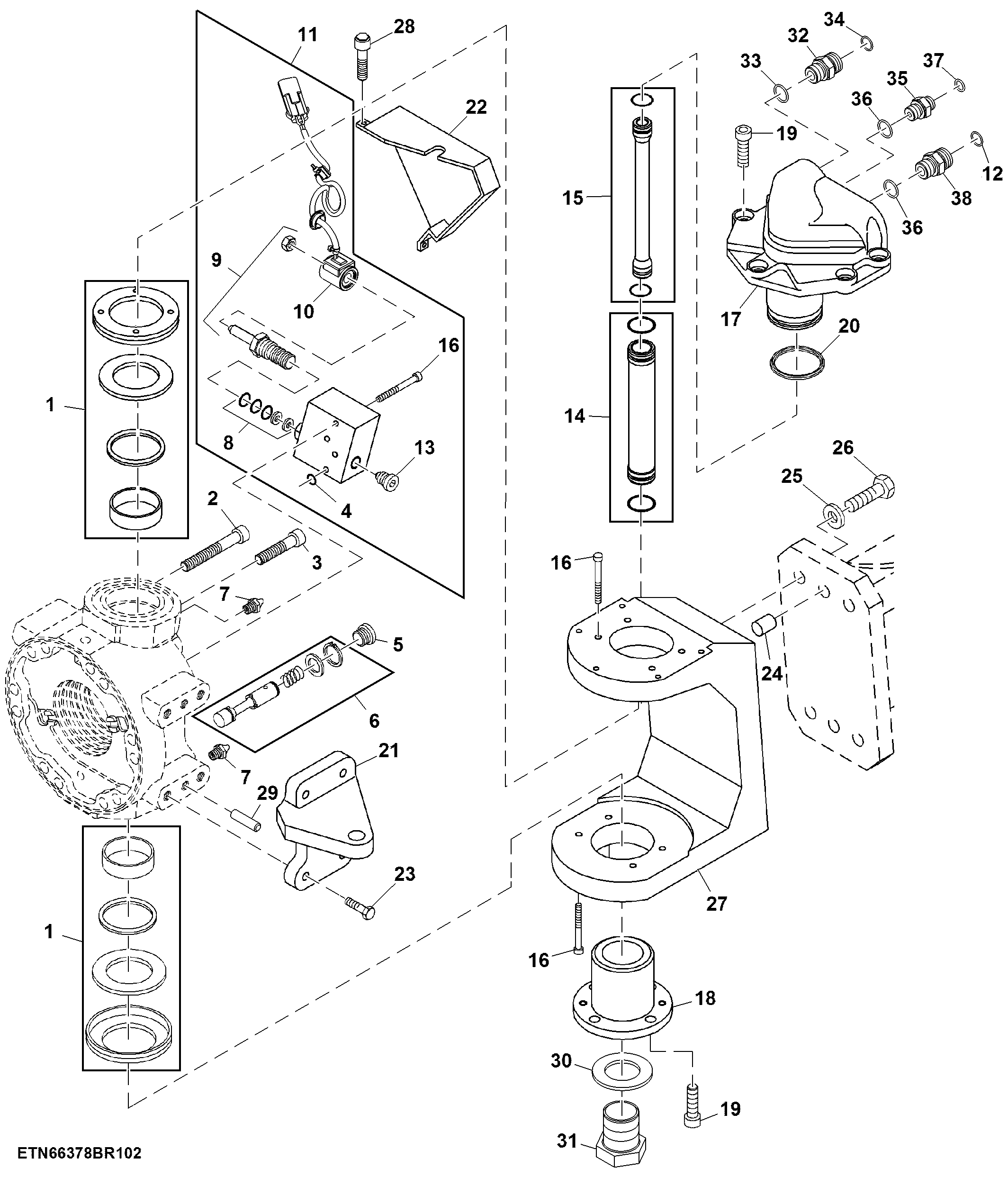

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE12312	2	Bushing Kit	-
2	H175439	8	Screw	-
2	H232626	8	Socket Head Screw	-
3	H175441	12	Screw	-
3	H232631	8	Socket Head Screw	-
4	T77613	4	O-Ring	-
5	AH169194	2	Plug	-
6	AH169195	2	Valve Spool	-
7	JD7806	2	Lubrication Fitting	-
8	AH209121	2	Seal Kit	-
9	AH209120	2	Valve	-
10	AH219822	2	Electrical Coil	ORDER AXE45240
10	AXE45240	2	Solenoid Valve Coil	-
11	AH219807	2	Valve	ORDER AXE46088
11	AXE46088	2	Valve	-
12	T77932	1	O-Ring	-
13	64M1019	2	Drain Plug	-
14	AH169200	2	Oil Tube	-
15	AH169201	2	Oil Tube	-
16	19M8513	8	Screw	M6 X 40
17	AXE19557	2	Pivot	(Upper LH and RH Motor)
18	HXE18195	1	Pivot	(Lower LH Motor)
18	HXE18196	1	Pivot	(Lower RH Motor)
19	19M8440	10	Screw	M10 X 25
20	AXE12311	2	Seal	-
21	H227051	1	Steering Arm	(LH Motor) 1886CC
21	H227050	1	Steering Arm	(RH Motor) 1886CC
21	HXE28386	1	Steering Arm	(RH Motor) 2096CC
21	HXE28387	1	Steering Arm	(LH Motor) 2096CC
22	H175446	2	Valve Cover	-
23	19M8532	16	Screw	M6 X 35
24	H75423	4	Pin Fastener	-
25	H210869	8	Spacer	-
26	19M7946	8	Cap Screw	M20 X 40
27	HXE28385	1	Yoke	2096CC
27	HXE14302	1	Yoke	1886CC
28	19M9492	4	Screw	M8 X 12
29	AH169196	2	Dowel Pin	-
30	24H1452	1	Washer	(LH Motor Only) 1-1/32" X 1-3/4" X 0.105"
31	N375572	1	Bolt	(LH Motor Only)
32	38H5003	1	Adapter Fitting	-
33	51M7043	1	O-Ring	15.300 X 2.200 mm
34	T77857	1	O-Ring	-
35	38H5005	1	Adapter Fitting	-
36	51M7047	2	O-Ring	23.600 X 2.900 mm
37	T77858	1	O-Ring	-
38	38H5152	1	Adapter Fitting	-
