Main Wiring Harness, RH, STS (3/3)

Main Wiring Harness, RH, STS (3/3)

Main Wiring Harness, RH, STS (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

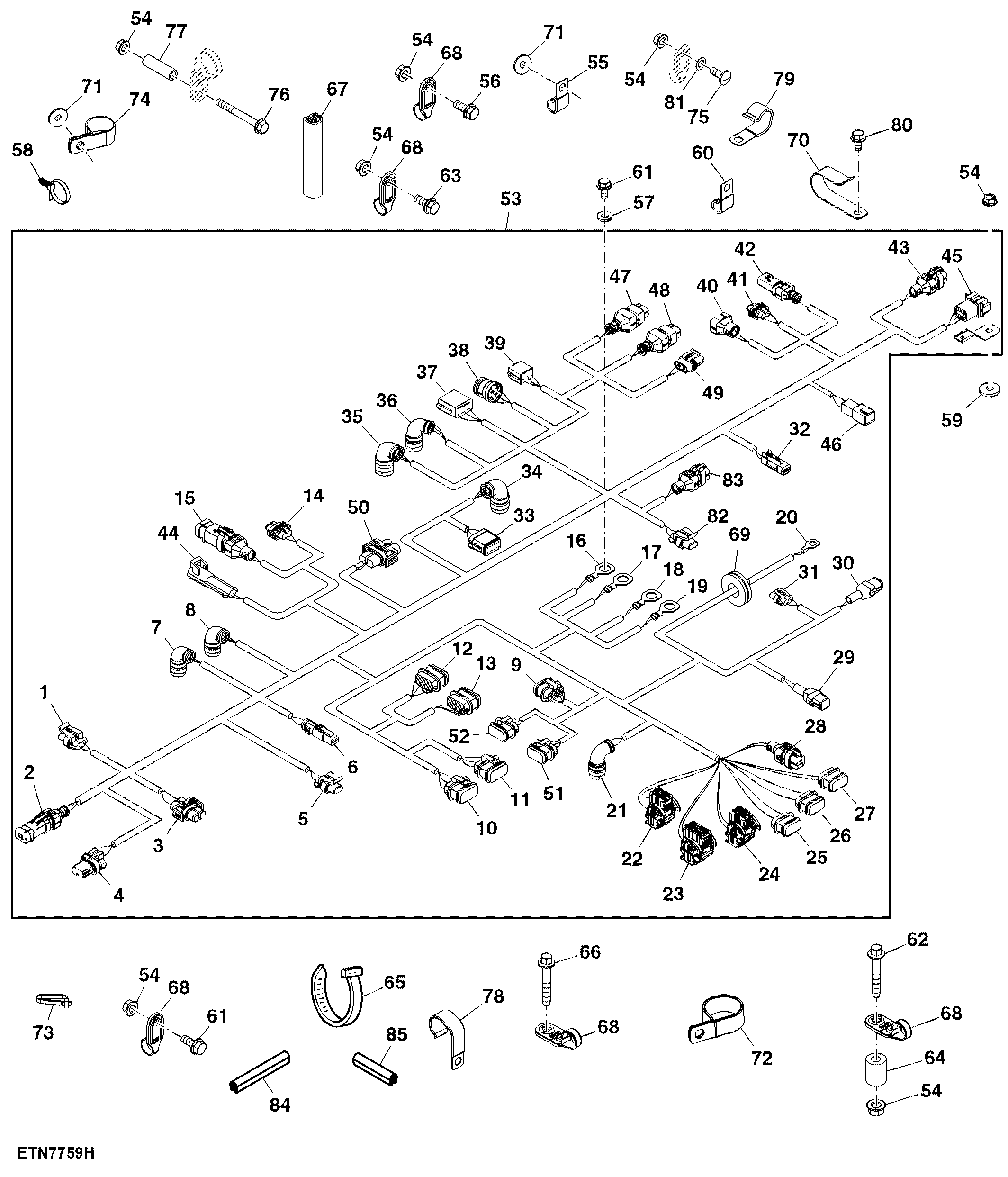

Main Wiring Harness, RH, STS (3/3)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
41	57M7297	2	Elec. Connector Terminal	-
41	57M7344	1	Elec. Connector Housing	Right Stubble Light
41	57M7371	1	Electrical Connector Assy	-
42	57M9792	1	Elec. Connector Housing	Tracks
42	57M9796	1	Elec. Connector Housing	-
42	57M9843	1	Elec. Connector Accessory	-
42	57M9809	1	Elec. Connector Terminal	-
42	57M9808	4	Elec. Connector Terminal	-
42	57M10631	1	Elec. Connector Terminal	-
42	57M10663	2	Elec. Connector Terminal	-
43	57M10868	1	Elec. Connector Housing	Autotrack
43	57M8164	3	Elec. Connector Terminal	-
43	N282069	1	Elec. Connector Terminal	-
43	57M9812	4	Elec. Connector Terminal	-
43	57M9384	1	Elec. Connector Accessory	-
43	57M10207	1	Elec. Connector Housing	-
43	57M8011	1	Elec.Connect Locking Device	-
44	57M7293	1	Elec. Connector Housing	RMH To LCI Power
44	57M7295	2	Elec.Connect Locking Device	-
45	57M9841	1	Elec. Connector Accessory	-
45	57M9786	1	Elec. Connector Housing	Backshaft Lateral Tilt
45	57M9808	7	Elec. Connector Terminal	-
46	AZ50831	1	Electrical Connector Assy	Threshing Speed Sensor Extension
46	57M8164	2	Elec. Connector Terminal	-
46	57M10625	1	Elec. Connector Accessory	-
47	57M9817	1	Elec. Connector Housing	GS2
47	57M9808	4	Elec. Connector Terminal	-
47	57M9839	1	Elec. Connector Accessory	-
47	57M9821	1	Elec. Connector Housing	-
48	57M9808	4	Elec. Connector Terminal	-
48	57M9821	1	Elec. Connector Housing	-
48	57M9839	1	Elec. Connector Accessory	-
48	57M9817	1	Elec. Connector Housing	SDU
49	R104570	1	Electrical Connector Assy	Fuse Inline SDU TO GS2
49	R104933	2	Elec. Connector Terminal	-
49	57M8487	1	Electrical Connector Cap	-
50	57M9786	1	Elec. Connector Housing	Grain Tank Cover
50	57M9841	1	Elec. Connector Accessory	-
50	57M9789	1	Elec. Connector Housing	-
51	57M9083	1	Elec. Connector Accessory	-
51	57M8985	7	Elec. Connector Housing	Single VEC Green
51	57M7299	1	Elec. Connector Terminal	-
52	57M7083	2	Elec. Connector Terminal	-
52	57M8986	7	Elec. Connector Housing	Single VEC Blue
53	AXE17401	1	Wiring Harness	SUB FOR AXE15085,Main Wiring Harness
54	14M7298	13	Flange Nut	M8
55	H224072	2	Clamp	-
56	19M7867	3	Screw	M8 X 25
57	24M7207	4	Washer	8.400 X 24 X 2 mm
58	57M10233	3	Tie Band	-
59	24H1887	1	Washer	11/32" X 1" X 0.134"
60	AH89557	2	Clip	-
61	19M7866	5	Screw	M8 X 20
62	19M7800	2	Screw	M8 X 50
63	19M7868	1	Screw	M8 X 30
64	H130269	3	Spacer	9 X 20 X 26 mm (0.354" X 0.787" X 1.024")
65	H224073	1	Tie Band	-
66	37M7233	1	Screw	M6 X 70
67	-	1	Part 59	CTL 90 mm, MF AH122244
68	57M10528	7	Elec. Connector Accessory	-
69	H94433	1	Grommet	-
70	H225365	7	Clip	-
71	24M7298	4	Washer	8.400 X 25 X 2 mm
72	N205415	1	Clamp	-
73	R44302	1	Tie Band	-
74	T26955	1	Clamp	-
75	03M7184	1	Bolt	M8 X 20
76	19M7803	1	Screw	M8 X 70
77	28H3419	1	Spacer	0.364" X 0.540" X 1-3/4"
78	AH90990	4	Clip	-
79	AH96317	1	Clip	-
80	GX22456	9	Screw	-
81	M84309	1	Nut	-
82	57M9786	1	Elec. Connector Housing	Transport Separator Vane Sensor
82	57M9808	3	Elec. Connector Terminal	-
82	57M10229	1	Elec. Connector Accessory	-
82	57M9789	1	Elec. Connector Housing	-
83	R78053	1	Electrical Connector Assy	Transport Separator Vane Actuator
83	57M9544	2	Elec. Connector Terminal	-
83	RE12363	1	Electrical Connector Assy	-
84	-	3	Part 81	CTL 150 mm, MF AH122244
85	-	1	Part 82	CTL 85 mm, MF AH122244
