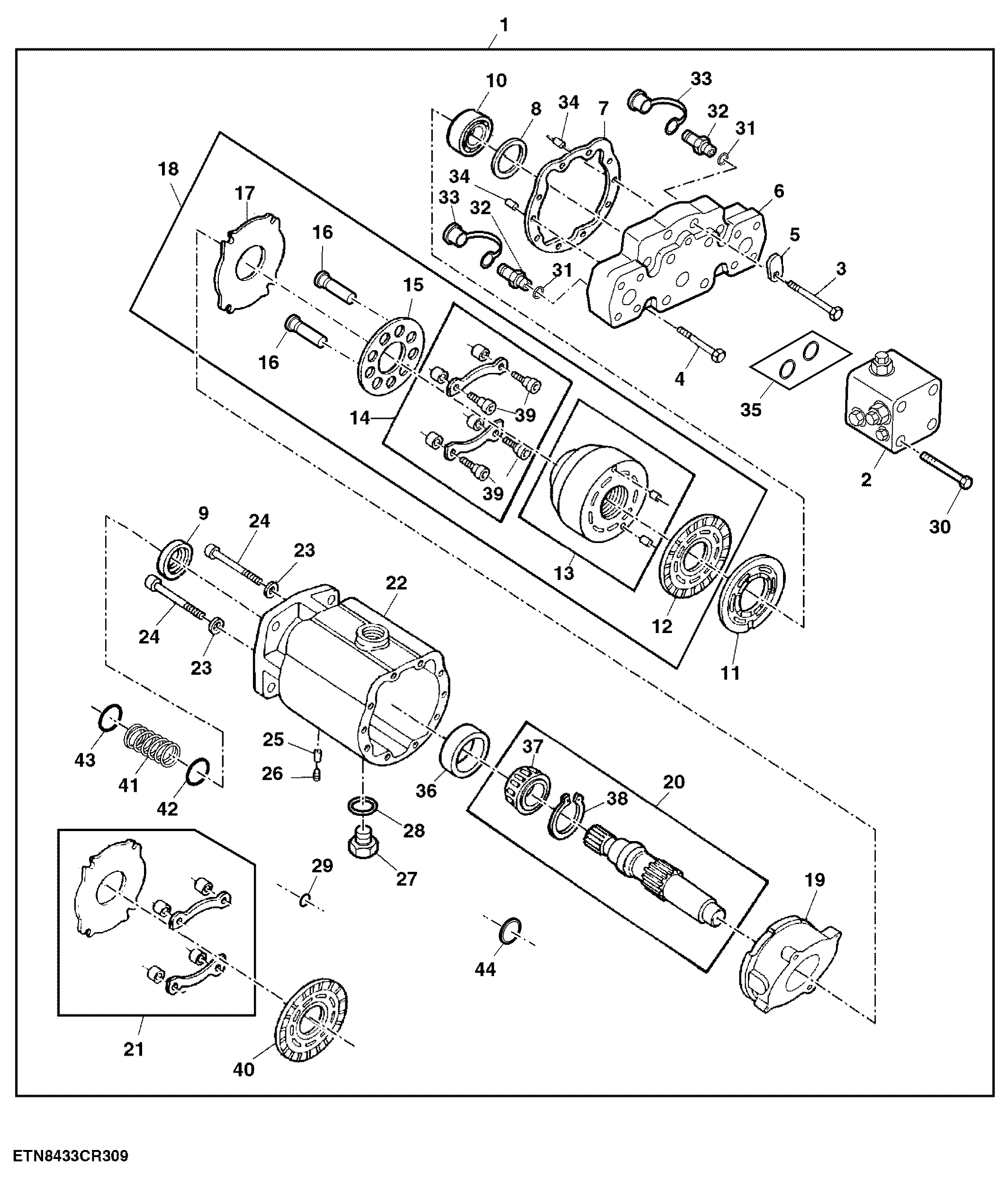

Hydrostatic Drive Motor, Transmission, 20 km/h (12 mph)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG203341	1	Hydraulic Motor Reman	REMAN FOR AXE15826
1	AXE15826	1	Motor	-
2	AH141811	1	Flow Control Hyd. Valve	-
3	19H2347	6	Cap Screw	7/16" X 3"
4	19H1899	2	Cap Screw	7/16" X 2"
5	Z65083	2	Adjusting Strap	-
6	-	1	Part 7	(ORD AH169693)
7	H135702	1	Gasket	-
8	AH112678	1	Shim	Includes 6 Shims of Thickness 0.003", 0.005", 0.010", 0.015", 0.020" And 0.030"
9	AZ56795	1	Seal	-
10	AH65358	1	Bearing	-
11	H138901	1	Plate	-
12	Z65106	1	Plate	-
13	AZ51529	1	Hydraulic Cylinder Kit	-
14	AZ42076	1	Support	-
15	Z65079	1	Plate	-
16	AZ51528	9	Piston	-
17	Z53122	1	Gasket	-
18	AZ51527	1	Piston	-
19	-	1	Part 20	(ORD AH169693)
20	AZ56818	1	Drive Shaft	-
21	AH131392	1	Plate Kit	-
22	-	1	Part 23	(ORD AH169693)
23	H135571	2	Sealing Washer	-
24	19H3192	2	Screw	5/16" X 3"
25	H64813	1	Dowel Pin	-
26	15H558	1	Pipe Plug	1/8"
27	R27175	1	Drain Plug	-
28	U12547	1	O-Ring	-
29	A4728R	1	O-Ring	-
30	19H2228	4	Cap Screw	3/8" X 4"
31	R26448	2	O-Ring	-
32	AH125760	2	Hyd. Quick-Connect Coupler	-
33	R77175	2	Cover	-
34	H63271	5	Pin	-
35	AN272356	1	Seal Kit	-
36	-	1	Part 37	(ORD AZ42073)
37	JD7297	1	Bearing Cup	INCL KEY 36 (KIT AZ56818)
38	H117461	1	Ring	(KIT AZ56818)
39	19H3352	4	Screw	5/16" X 1-1/4"
40	H135700	1	Plate	-
41	N191174	1	Compression Spring	-
42	N196034	1	O-Ring	-
43	U15415	1	O-Ring	-
44	T187712	1	Snap Ring	-

Hydrostatic Drive Motor, Transmission, 20 km/h (12 mph)
