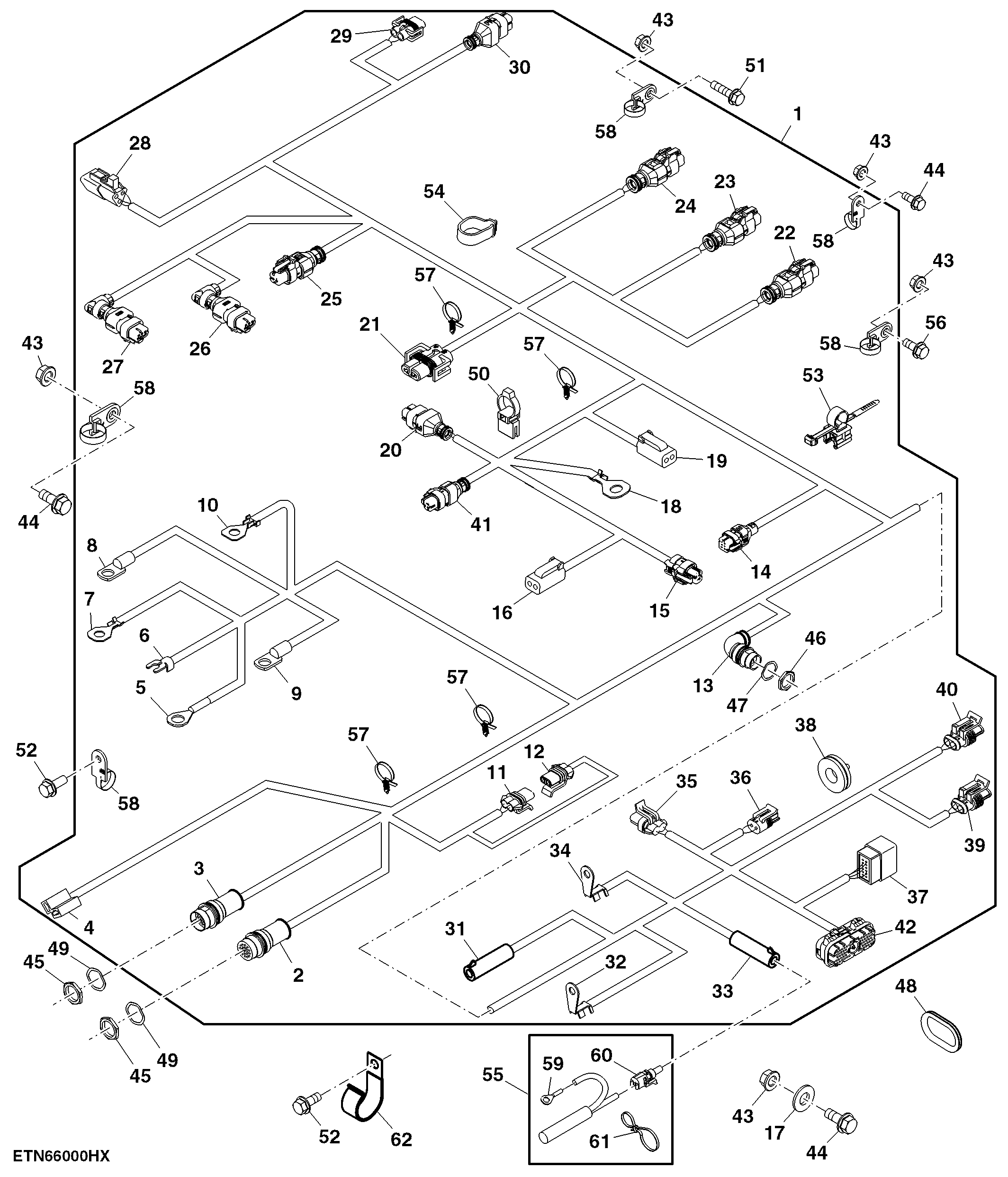

Engine Wiring Harness, Interim Tier 4 (1 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE17405	1	Wiring Harness	-
2	57M10485	1	Elec. Connector Accessory	-
2	57M9525	1	Elec. Connector Terminal	-
2	57M9812	1	Elec. Connector Terminal	-
2	57M10322	1	Elec. Connector Terminal	-
2	57M9810	1	Elec. Connector Terminal	-
2	57M8164	1	Elec. Connector Terminal	-
2	N282069	1	Elec. Connector Terminal	-
2	57M7750	1	Elec. Connector Housing	Right Main 1
3	57M8113	1	Electrical Connector Assy	Right Main 2
3	N282069	1	Elec. Connector Terminal	-
3	57M9812	1	Elec. Connector Terminal	-
3	57M8260	1	Elec. Connector Terminal	-
3	57M8592	1	Elec. Connector Terminal	-
3	57M8164	1	Elec. Connector Terminal	-
3	57M9810	1	Elec. Connector Terminal	-
4	57M9200	1	Elec. Connector Terminal	-
4	57M8812	1	Elec. Connector Housing	Enter Start Aid
5	57M8875	1	Elec. Connector Terminal	Relay Coil
6	-	1	Part 20	Start Relay Ground
7	57M8867	1	Elec. Connector Terminal	Power
8	-	1	Part 22	Starter
9	-	1	Part 23	Starter
10	57M10533	1	Elec. Connector Terminal	Start Relay
11	57M7501	1	Elec. Connector Terminal	-
11	57M9712	1	Elec. Connector Accessory	-
11	57M7254	1	Elec. Connector Housing	Fan Speed Decrease
12	57M7254	1	Elec. Connector Housing	Fan Speed Increase
12	57M9712	1	Elec. Connector Accessory	-
13	-	1	Part 30	IT 4 Power In Line
13	57M8592	1	Elec. Connector Terminal	-
13	57M10429	1	Elec. Connector Accessory	-
14	57M9841	1	Elec. Connector Accessory	-
14	57M9809	1	Elec. Connector Terminal	-
14	57M9786	1	Elec. Connector Housing	Can Bus To LC2
14	57M9808	1	Elec. Connector Terminal	-
15	57M9773	1	Elec. Connector Housing	Separator Drive Temperature
15	57M9808	1	Elec. Connector Terminal	-
15	57M9837	1	Elec. Connector Accessory	-
16	AZ61547	1	Elec. Connector Housing	Unloading Auger Engine (OCH)
16	57M8165	1	Elec. Connector Terminal	-
16	57M8022	1	Elec.Connect Locking Device	-
16	57M10530	1	Elec. Connector Housing	-
16	57M7533	1	Elec. Connector Housing	-
17	24M7298	1	Washer	8.400 X 25 X 2 mm
18	57M8867	1	Elec. Connector Terminal	Main Engine Ground
19	AZ61547	1	Elec. Connector Housing	Main Gear Case Filter Switch
19	57M7546	1	Elec. Connector Terminal	-
19	57M8022	1	Elec.Connect Locking Device	-
19	57M10530	1	Elec. Connector Housing	-
20	57M9837	1	Elec. Connector Accessory	-
20	57M9773	1	Elec. Connector Housing	Separator Drive Switch
20	57M9808	1	Elec. Connector Terminal	-
21	57M7344	1	Elec. Connector Housing	Engine Service Light
21	57M7491	1	Elec. Connector Terminal	-
21	57M7371	1	Electrical Connector Assy	-
22	57M9780	1	Elec. Connector Housing	HYD Oil Level SW 2
22	57M9808	1	Elec. Connector Terminal	-
22	57M9738	1	Elec. Connector Housing	-
22	57M9838	1	Elec. Connector Accessory	-
23	57M9808	1	Elec. Connector Terminal	-
23	57M9838	1	Elec. Connector Accessory	-
23	57M9738	1	Elec. Connector Housing	-
23	57M9780	1	Elec. Connector Housing	HYD Oil Level SW 1
24	57M9773	1	Elec. Connector Housing	Hydro Oil Temp
24	57M9806	1	Elec. Connector Terminal	-
24	57M9837	1	Elec. Connector Accessory	-
25	57M9773	1	Elec. Connector Housing	Filter Bypass Switch
25	57M9808	1	Elec. Connector Terminal	-
25	57M9731	1	Elec. Connector Housing	-
25	57M9837	1	Elec. Connector Accessory	-
