Wiring Harness, Straw Spreader W/ Wind Compensation

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE37627	1	Wiring Harness	-
2	57M10517	1	Elec. Connector Housing	Y102 Right Spreader Speed Solenoid
2	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
2	57M10486	1	Elec. Connector Accessory	-
2	57M8022	1	Elec.Connect Locking Device	-
3	57M7254	1	Elec. Connector Housing	Y101 Left Spreader Speed Solenoid
3	57M7494	2	Elec. Connector Terminal	Cavity A, B
3	57M9214	2	Elec. Connector Seal	Cavity A, B
3	57M9556	1	Elec. Connector Accessory	-
4	H94433	1	Grommet	-
5	57M9940	1	Elec. Connector Accessory	-
5	57M9844	1	Elec. Connector Accessory	-
5	57M9813	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8
5	57M9804	1	Elec. Connector Housing	Right Main Harness / Residue Harnesses
5	57M10336	4	Elec. Connector Cavity Plug	Cavity 9, 10, 11, 12
6	RE12364	1	Electrical Connector Assy	B60 Right Straw Spreader Speed Sensor
6	57M10924	3	Elec. Connector Terminal	Cavity A, B, C
6	57M9549	3	Elec. Connector Seal	Cavity A, B, C
7	R44302	2	Tie Band	-
8	AH96317	2	Clip	-
9	57M10233	3	Tie Band	-
10	AH225363	3	Clip	-
11	RE12364	1	Electrical Connector Assy	B50 Left Straw Spreader Speed Sensor
11	57M10924	3	Elec. Connector Terminal	Cavity A, B, C
11	57M9549	3	Elec. Connector Seal	Cavity A, B, C
12	AXE25732	1	Electrical Connector Cap	Environmentally Sealed 8 Way Connector
12	57M9940	1	Elec. Connector Accessory	-
13	AXE45421	1	Electrical Connector Cap	2 Way Male Connector
13	57M9960	1	Elec. Connector Housing	-

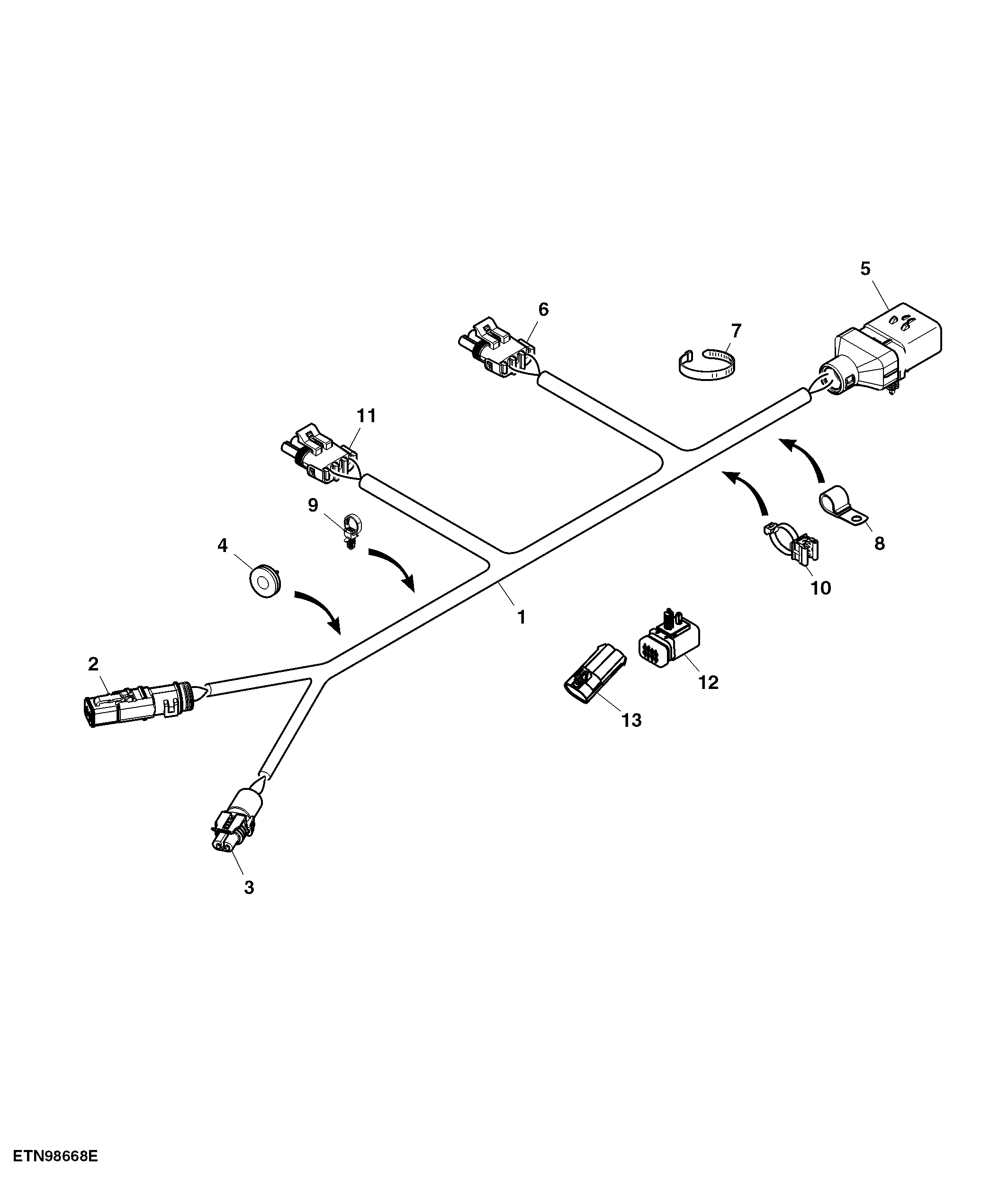

Wiring Harness, Straw Spreader W/ Wind Compensation
