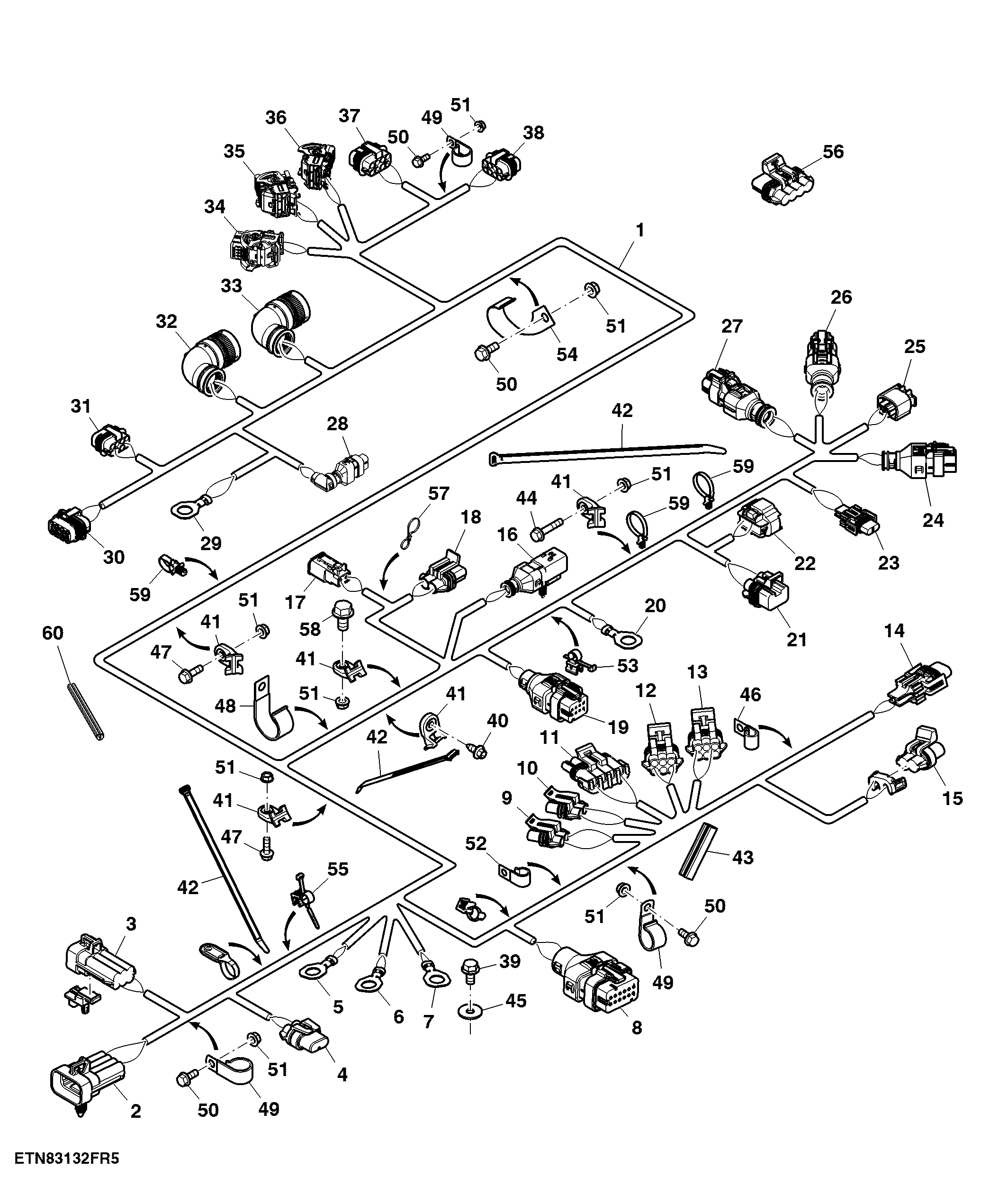

Main Wiring Harness, Left Control Unit 2 (4/4)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
37	57M9083	1	Elec. Connector Accessory	-
37	57M8986	1	Elec. Connector Housing	Left Power Module 2B (J3 Blue)
37	57M9219	2	Elec. Connector Seal	-
37	57M9216	3	Elec. Connector Seal	-
37	57M7491	1	Elec. Connector Terminal	-
37	57M7298	1	Elec. Connector Terminal	-
37	57M7297	1	Elec. Connector Terminal	-
37	57M7491	2	Elec. Connector Terminal	-
38	57M8985	1	Elec. Connector Housing	Left Power Module 2B (J1 Green)
38	57M9083	1	Elec. Connector Accessory	-
38	57M7491	3	Elec. Connector Terminal	-
38	57M8294	2	Elec. Connector Terminal	-
38	57M9216	2	Elec. Connector Seal	-
38	57M7368	2	Elec. Connector Cable Seal	-
38	R78064	2	Elec. Connector Cavity Plug	-
39	19M7865	3	Screw	M8 X 16
40	GX22456	2	Screw	-
41	H224072	5	Clamp	-
42	H224073	5	Tie Band	-
43	H229171	1	Weatherstrip	-
44	19M7798	1	Screw	M8 X 40
45	24M7207	3	Washer	8.400 X 24 X 2 mm
46	AH89557	1	Clip	-
47	19M7867	2	Screw	M8 X 25
48	AH130222	2	Clamp	-
49	AH90990	9	Clip	-
50	19M7866	11	Screw	M8 X 20
51	14M7298	15	Flange Nut	M8
52	AH96317	3	Clip	-
53	AH225363	1	Clip	-
54	H218743	1	Clip	-
55	AH225366	1	Clip	-
56	57M7808	1	Elec. Connector Housing	-
57	57M10421	6	Elec. Connector Accessory	-
58	19M7868	1	Screw	M8 X 30
59	57M10233	1	Tie Band	-
60	-	3	Part 37	CTL 150 mm, MF AH122244

Main Wiring Harness, Left Control Unit 2 (4/4)
