Открытый узел

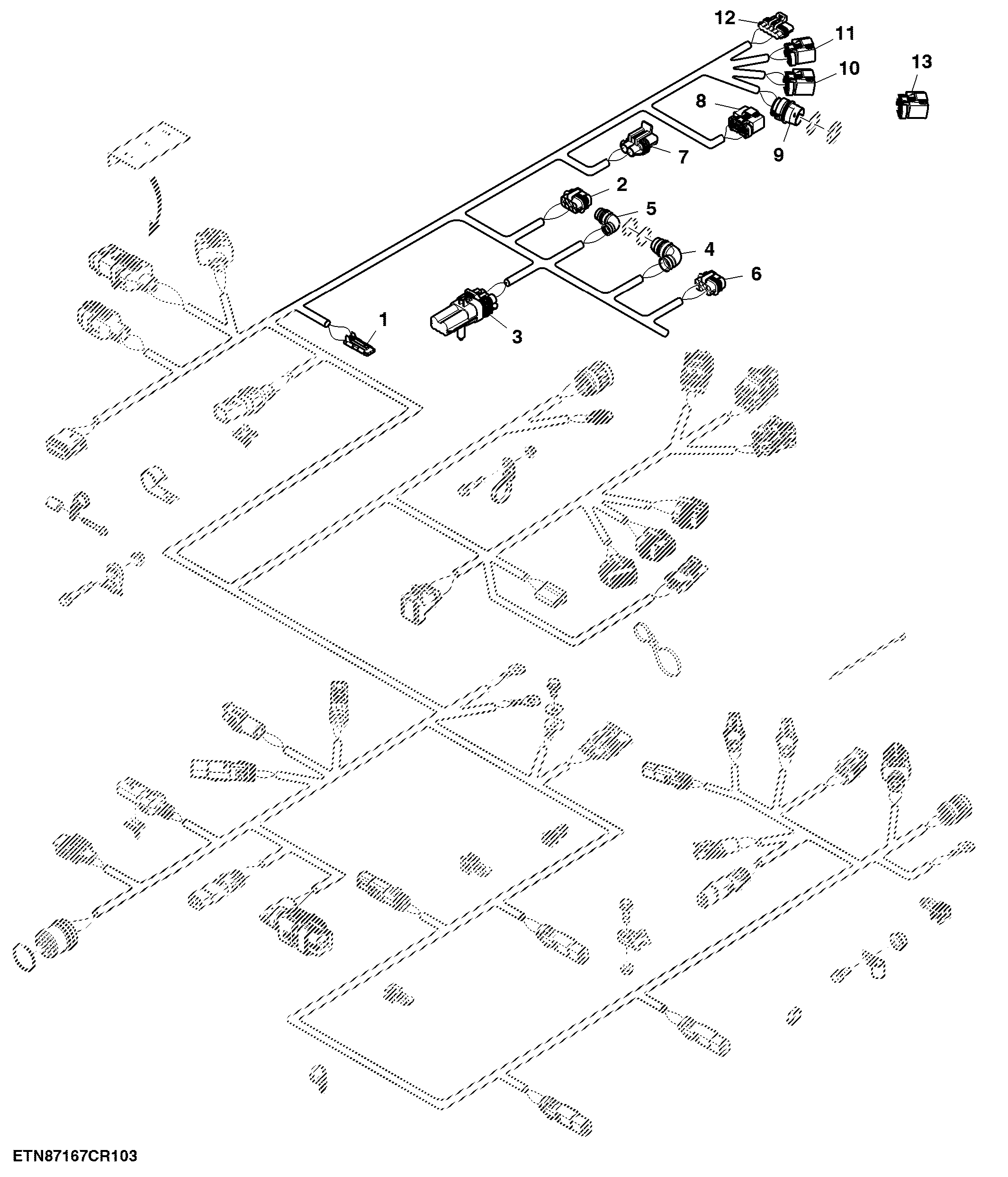

Left Control unit 1 Wiring Harness (3/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M10270	2	Elec. Connector Terminal	-
1	57M10751	1	Elec. Connector Housing	Threshing Clearance Actuator Motor
1	57M10753	1	Elec. Connector Accessory	-
1	57M10271	2	Elec. Connector Seal	-
2	57M8983	1	Elec. Connector Housing	Left Power Module 2B (J2 Black)
2	57M7299	2	Elec. Connector Terminal	-
2	57M7491	1	Elec. Connector Terminal	-
2	57M9217	2	Elec. Connector Seal	-
2	57M9218	1	Elec. Connector Seal	-
2	R78064	5	Elec. Connector Cavity Plug	-
2	57M9083	1	Elec. Connector Accessory	-
3	57M7706	2	Elec. Connector Terminal	-
3	57M7699	1	Elec. Connector Terminal	-
3	57M7698	1	Elec. Connector Terminal	-
3	57M7697	1	Electrical Connector Assy	-
3	57M7377	3	Elec. Connector Seal	-
3	57M7588	2	Elec. Connector Terminal	-
3	57M9920	2	Elec. Connector Terminal	-
3	57M8910	1	Clip	-
3	57M7494	1	Elec. Connector Terminal	-
3	57M7696	1	Elec. Connector Housing	Smart Unload Harness
4	57M11654	1	Elec. Connector Housing	Left Control Unit 2 Main Harness
4	57M11696	2	Elec. Connector Accessory	-
4	57M11697	2	Elec. Connector Terminal	-
4	57M11673	1	Elec. Connector Terminal	-
4	57M11302	2	Elec. Connector Terminal	-
4	57M11695	5	Elec. Connector Terminal	-
4	57M11303	7	Elec. Connector Terminal	-
4	57M11316	1	Elec. Connector Seal	-
5	57M11316	2	Elec. Connector Seal	-
5	57M11702	3	Elec. Connector Terminal	-
5	57M11303	9	Elec. Connector Terminal	-
5	57M11697	5	Elec. Connector Terminal	-
5	57M11695	7	Elec. Connector Terminal	-
5	57M11663	1	Elec. Connector Housing	Left Control Unit 2 Main Harness
5	57M11667	3	Elec. Connector Terminal	-
6	57M8983	1	Elec. Connector Housing	Left Power Module 2A (J2_Black)
6	57M7299	3	Elec. Connector Terminal	-
6	57M9217	3	Elec. Connector Seal	-
6	57M9083	1	Elec. Connector Accessory	-
7	57M9219	2	Elec. Connector Seal	-
7	57M7306	1	Elec.Connect Locking Device	-
7	57M8294	2	Elec. Connector Terminal	-
7	57M7309	1	Elec. Connector Housing	Left Separator Loss Sensor
8	AXE22037	1	Electrical Connector Assy	LF Fuse Center (J8)
8	57M8543	12	Elec. Connector Terminal	-
8	57M8572	3	Elec. Connector Cavity Plug	-
9	57M11695	5	Elec. Connector Terminal	-
9	57M11316	1	Elec. Connector Seal	-
9	57M11702	3	Elec. Connector Terminal	-
9	57M11303	7	Elec. Connector Terminal	-
9	57M11302	6	Elec. Connector Terminal	-
9	57M11697	3	Elec. Connector Terminal	-
9	57M11669	3	Elec. Connector Terminal	-
9	57M11694	1	Elec. Connector Accessory	-
9	57M11663	1	Elec. Connector Housing	Right Main Harness
10	AXE22032	1	Electrical Connector Assy	LF Fuse Center (J7)
10	57M8543	4	Elec. Connector Terminal	-
10	57M8572	6	Elec. Connector Cavity Plug	-
11	AXE22034	1	Electrical Connector Assy	LF Fuse Center (J5)
11	57M8543	10	Elec. Connector Terminal	-
12	57M7301	1	Elec. Connector Housing	Right Main Harness
12	57M7299	4	Elec. Connector Terminal	-
12	57M7491	1	Elec. Connector Terminal	-
12	57M7308	1	Elec. Connector Accessory	-
13	AXE43544	1	Electrical Connector Cap	-

Left Control unit 1 Wiring Harness (3/4)
