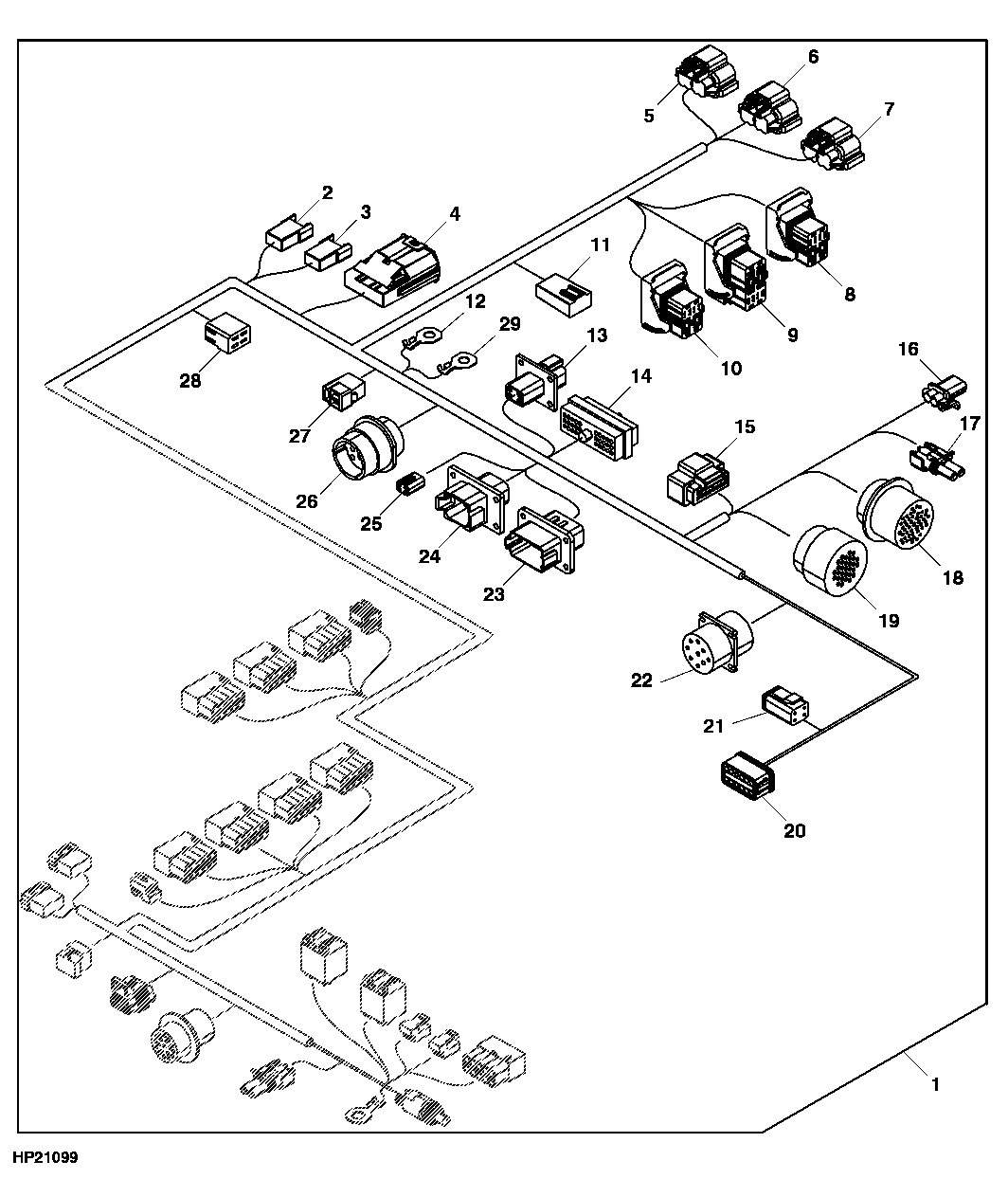

Main Cab Wiring Harness (1/2) (730101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE10107	1	Wiring Harness	(SUB FOR AH230960)
2	-	1	Part 2	RIGHT SPEAKER
3	-	1	Part 3	LEFT SPEAKER
4	57M7851	1	Electrical Connector Assy	DIODE MODULE
5	-	1	Part 5	CPU GREEN
6	-	1	Part 6	CPU BLACK
7	-	1	Part 7	CPU BLUE
8	57M8521	1	Elec. Connector Housing	CCU J3
8	57M8528	1	Electrical Connector Cap	-
9	57M8526	1	Elec. Connector Housing	CCU J2
9	57M8529	1	Electrical Connector Cap	-
10	57M8518	1	Elec. Connector Housing	CCU J1
10	57M8528	1	Electrical Connector Cap	-
11	57M8829	1	Elec. Connector Accessory	FUSE HOLDER
12	57M8866	1	Elec. Connector Terminal	CAB GROUND
13	-	1	Part 16	RIGHT MAIN 3
14	57M9168	1	Elec. Connector Housing	FEEDRATE CONTROLLER
15	-	1	Part 18	AIR CONDITIONING
16	57M7289	1	Elec.Connect Locking Device	-
16	57M7254	1	Elec. Connector Housing	AIR SEAT
17	RE12363	1	Electrical Connector Assy	SEAT SWITCH
18	57M8791	1	Elec. Connector Housing	ARMREST HARNESS 1
19	57M7751	1	Elec. Connector Housing	ARMREST HARNESS 2
20	-	1	Part 24	STEERING COLUMN 2
21	-	1	Part 25	STEERING COLUMN 1
22	57M7919	1	Elec. Connector Housing	DIAGNOSTIC PORT
23	57M9228	1	Elec. Connector Housing	LEFT MAIN HARNESS
23	57M7682	1	Elec.Connect Locking Device	-
24	-	1	Part 29	RIGHT MAIN 1
25	57M7789	1	Elec. Connector Housing	AUXILIARY ARMREST HARNESS
25	57M7724	1	Electrical Connector Assy	-
26	57M8461	1	Elec. Connector Housing	RIGHT MAIN 2
27	-	1	Part 33	CONVENIENCE OUTLET
28	57M7060	1	Elec. Connector Housing	DOME LAMP SWITCH
29	-	1	Part 35	LIGHT EXT. GROUND

Main Cab Wiring Harness (1/2) (730101 - )
