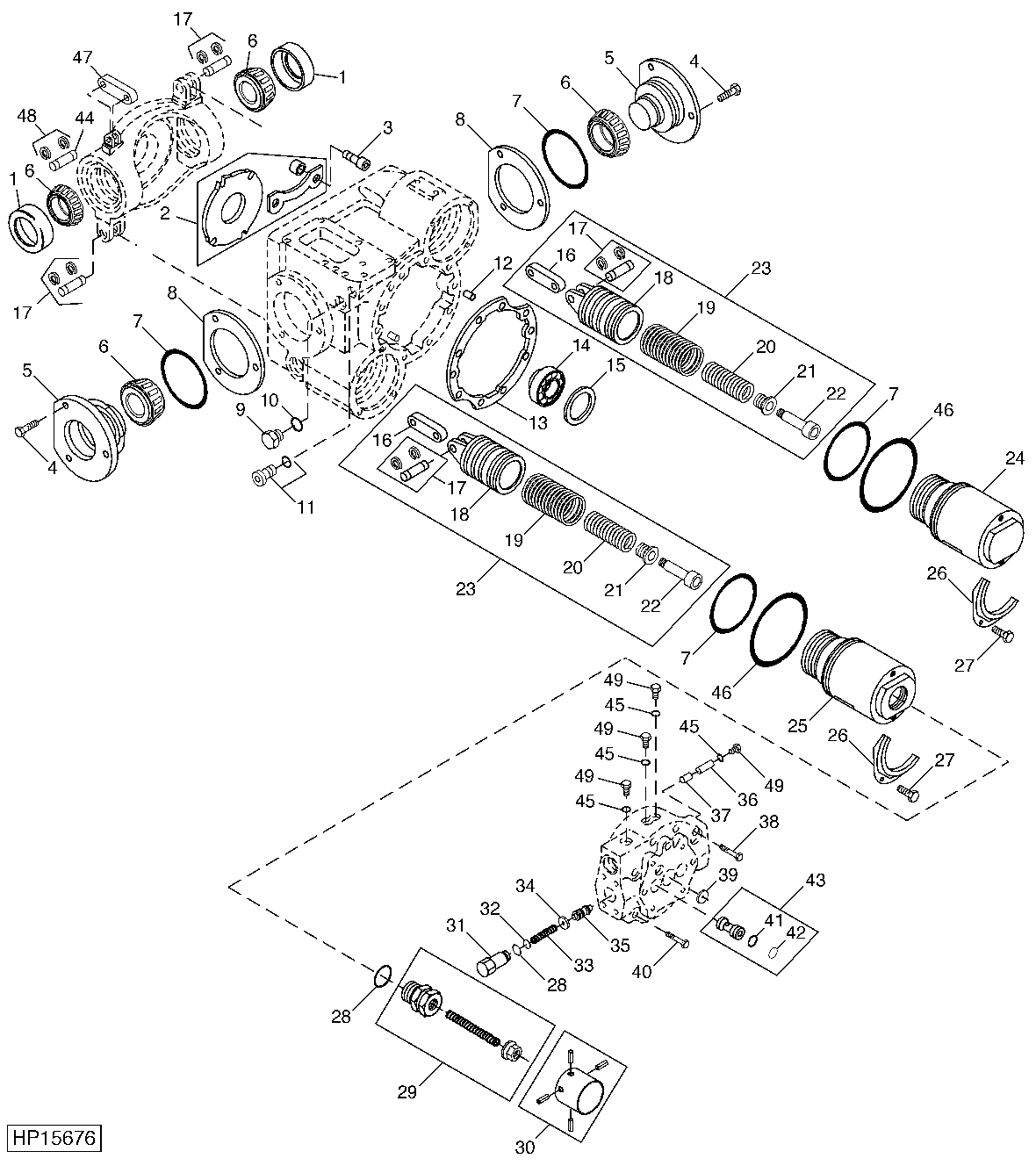

Hydrostatic Drive Pump, Housing, Swashplate And Servo Cylinders

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD9133	2	Bearing Cup	-
2	AH131392	1	Plate Kit	(Holddown)
3	19H3352	4	Screw	5/16" X 1-1/4"
4	19H2666	6	Cap Screw	7/16" X 7/8"
5	-	2	Part 5	-
6	JD9076	4	Bearing Cone	-
7	M4237T	4	O-Ring	-
8	AH112680	2	Shim	SIX, .002", FOUR, .005", .010, .015" AND .025"
9	R51031	1	Fitting	-
10	R28782	5	O-Ring	-
11	AN122518	1	Fitting Plug	-
12	H63271	9	Pin	-
13	H214563	1	Gasket	-
14	AH65358	1	Bearing	-
15	AH112678	1	Shim	-
16	N126600	2	Link	-
17	AN274375	4	Pin Fastener	-
18	-	2	Part 18	-
19	-	2	Part 19	-
20	-	2	Part 20	-
21	-	2	Part 21	-
22	-	2	Part 22	-
23	AH112675	2	Piston	-
24	AH112668	1	Sleeve	-
25	AZ42198	1	Sleeve	-
26	H115052	2	Retainer	-
27	19H3176	6	Screw	0.164" X 0.380"
28	R26906	2	O-Ring	-
29	AZ44859	1	Strap	-
30	AZ49846	1	Cap	-
31	H135215	1	Holder	-
32	-	1	Part 32	-
33	H135211	1	Compression Spring	-
34	H135213	1	Washer	-
35	H135214	1	Valve Spool	-
36	H135695	1	Needle Roller	-
37	H135212	1	Needle Roller	-
38	19H2347	6	Cap Screw	7/16" X 3"
39	N126644	1	Orifice	-
40	19H1899	6	Cap Screw	7/16" X 2"
41	R152879	1	O-Ring	-
42	W23690	1	Back-Up Ring	-
43	AN122502	1	Check Valve	-
44	N126603	1	Pin Fastener	-
45	R30903	4	O-Ring	-
46	P48403	2	O-Ring	-
47	H229135	2	Link	-
48	M48000	2	Snap Ring	-
49	X2HP5ON-5	1	Fitting Plug	-
..	AXE10220	1	Pump	(W/ Auto Feedrate) SUB FOR AH222647
..	PG201015	1	Hydraulic Pump Reman	REMAN FOR AXE10220
..	AXE10219	1	Pump	(W/O Auto Feedrate) (Hydrostatic Pump (REMANUFACTURED)) SUB FOR AH221232 OR AH221230
..	PG200760	1	Hydraulic Pump Reman	REMAN FOR AXE10219

Hydrostatic Drive Pump, Housing, Swashplate And Servo Cylinders
