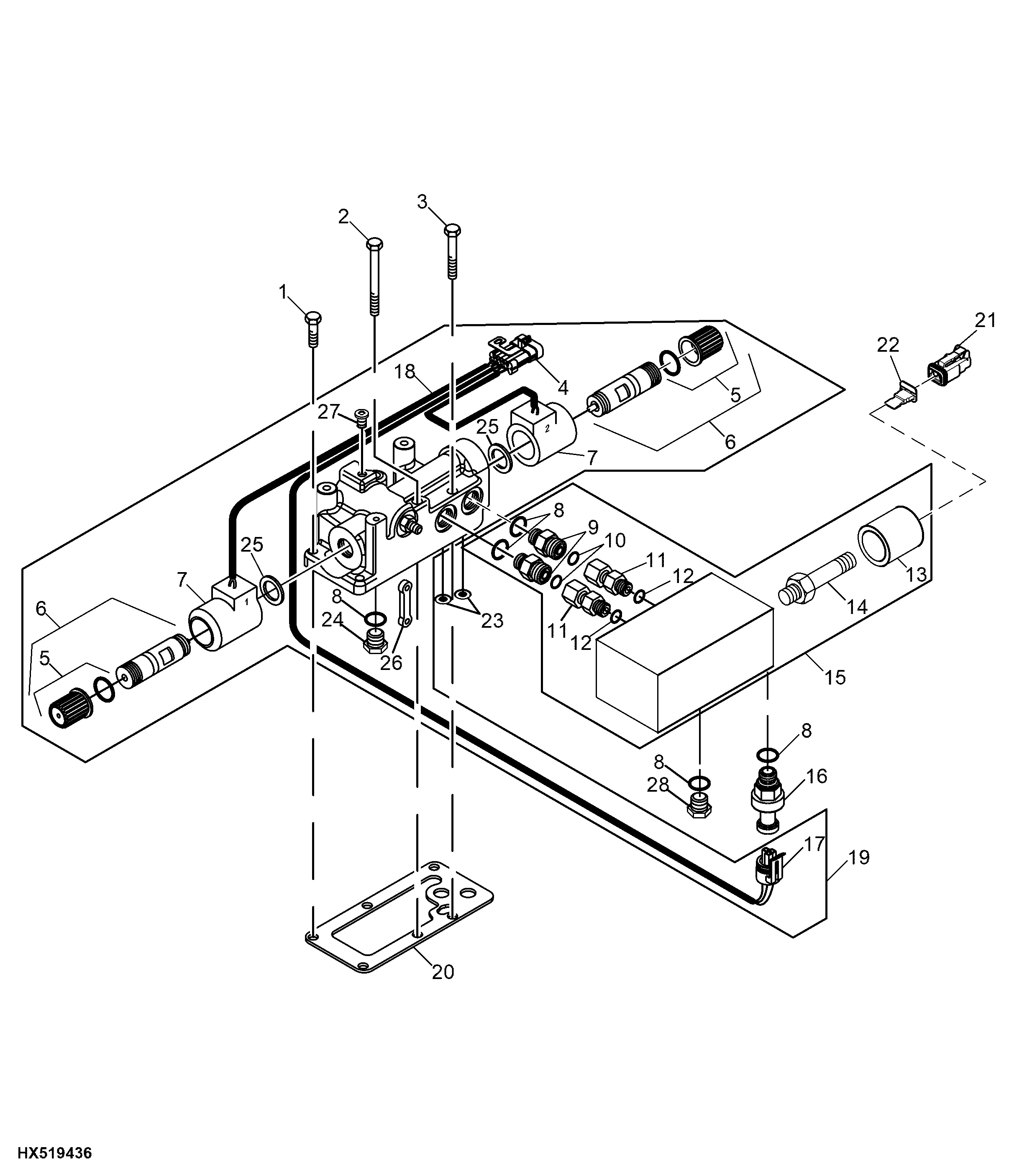

Flow Control Valve, W/ Automatic Feed Rate

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1905	3	Cap Screw	5/16" X 1"
2	19H1907	2	Cap Screw	5/16" X 2-3/4"
3	19H1913	1	Cap Screw	5/16" X 2-1/4"
4	57M7264	1	Elec. Connector Housing	-
4	57M8631	1	Elec. Connector Accessory	-
4	R104919	7	Elec. Connector Terminal	-
4	57M7258	7	Elec. Connector Seal	-
4	57M8632	1	Clamp	-
5	AH214887	2	Coil Kit	Nut and O-Ring
6	AH214153	2	Valve Kit	Stem Tube, Nut and O-Ring ORDER H215580
7	H215580	2	Solenoid Valve Coil	-
8	51M7041	5	O-Ring	11.300 X 2.200 mm
9	38H5002	2	Adapter Fitting	-
10	T77613	2	O-Ring	-
11	38H1067	2	Adapter Fitting	-
12	R26448	2	O-Ring	-
13	AH217866	1	Solenoid Valve Coil	-
14	AE73079	1	Solenoid Valve	-
14	AE71183	1	O-Ring Kit	-
15	AH218057	1	Solenoid Valve	-
16	RE154966	1	Pressure Sensor	Pressure
17	57M7796	1	Elec. Connector Housing	-
17	R104701	3	Elec. Connector Terminal	-
18	AH215102	1	Wiring Harness	-
19	AH222653	1	Control Valve	-
20	H224139	1	Gasket	-
21	57M7534	1	Elec. Connector Housing	-
22	57M7620	1	Electrical Connector Assy	-
23	AH222960	2	Screen	-
24	AH222964	1	Fitting Plug	-
25	H224550	2	Gasket	-
26	H229135	1	Link	-
27	R108038	1	Drain Plug	-
28	15M7076	1	Drain Plug	-

Flow Control Valve, W/ Automatic Feed Rate
