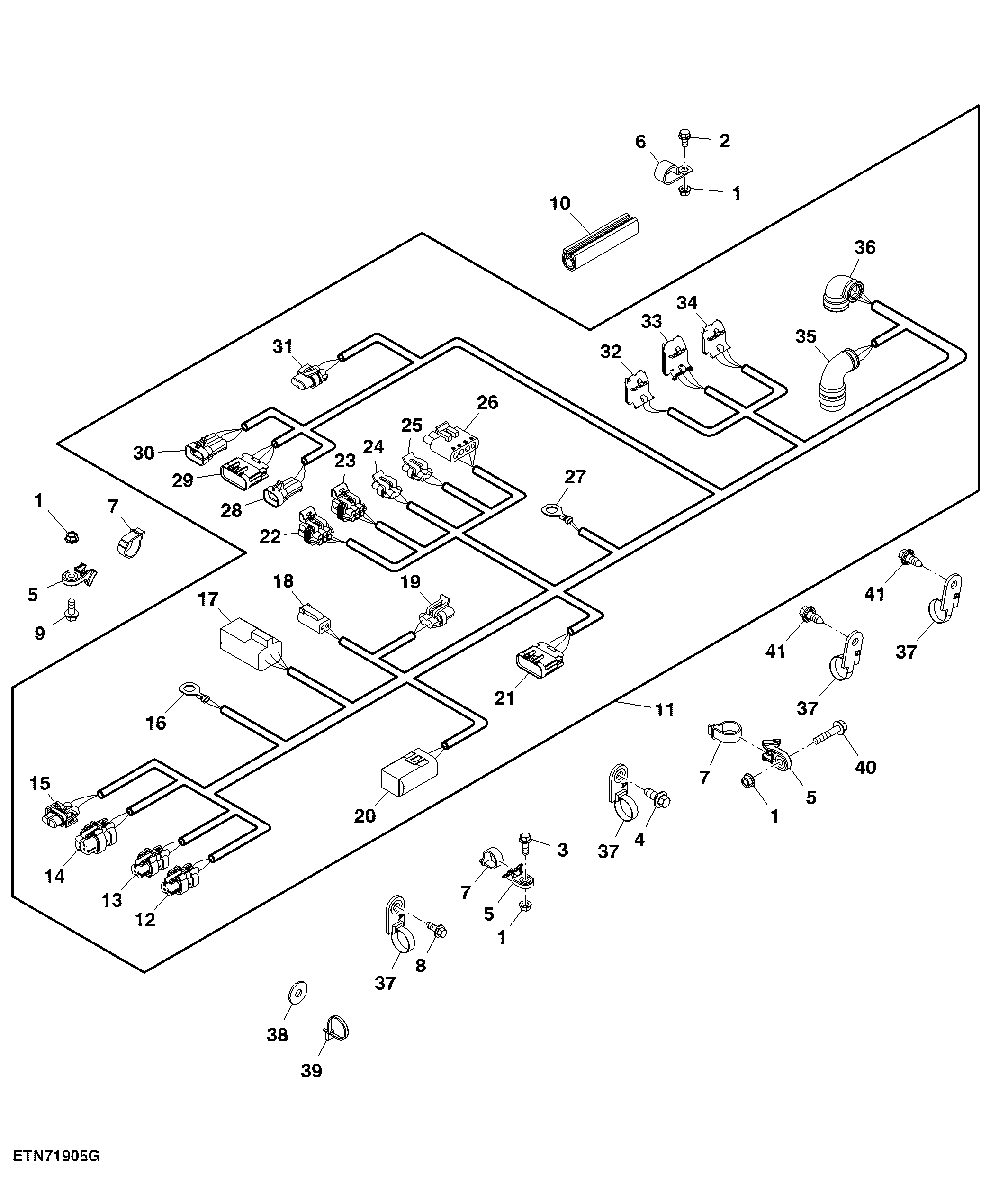

Left Control Unit 2 Wiring Harness (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
21	57M9808	1	Elec. Connector Terminal	-
21	57M9800	1	Elec. Connector Housing	RSA Harness
22	57M7260	1	Elec. Connector Housing	Sleeve Switch
22	57M7494	1	Elec. Connector Terminal	-
22	57M7291	1	Electrical Connector Assy	-
23	57M7260	1	Elec. Connector Housing	Chaffer Switch
23	57M7494	1	Elec. Connector Terminal	-
23	57M10770	1	Elec. Connector Terminal	-
23	57M7291	1	Electrical Connector Assy	-
24	57M7494	1	Elec. Connector Terminal	-
24	57M9556	1	Elec. Connector Accessory	-
24	57M7254	1	Elec. Connector Housing	Gulwing Switch
25	57M7254	1	Elec. Connector Housing	Shoe Switch
25	57M7494	1	Elec. Connector Terminal	-
25	57M9712	1	Elec. Connector Accessory	-
26	RE12365	1	Electrical Connector Assy	Chopper Fold SW
26	57M9542	1	Elec. Connector Terminal	-
27	57M8865	1	Elec. Connector Terminal	CIRS
28	57M7264	1	Elec. Connector Housing	2 Speed 4 Wheels
28	57M7296	1	Elec. Connector Accessory	-
28	57M8220	1	Elec. Connector Accessory	-
28	57M9555	1	Clip	-
28	57M9546	1	Elec. Connector Terminal	-
28	57M7495	1	Elec. Connector Terminal	-
29	57M9522	1	Elec. Connector Housing	SLS Harness
29	57M8308	1	Elec. Connector Terminal	-
29	57M9539	1	Elec. Connector Terminal	-
29	57M8301	1	Elec. Connector Terminal	-
29	57M8920	1	Elec. Connector Housing	-
29	57M10627	1	Elec. Connector Accessory	-
30	57M7263	1	Elec. Connector Housing	Trailer Exit
30	57M7252	1	Elec. Connector Terminal	-
30	57M7495	1	Elec. Connector Terminal	-
30	57M7291	1	Electrical Connector Assy	-
30	57M7260	1	Elec. Connector Housing	-
31	57M8128	1	Electrical Connector Assy	Shoe Light
31	57M8129	1	Elec. Connector Terminal	-
31	57M7491	1	Elec. Connector Terminal	-
32	57M10606	1	Elec. Connector Housing	LCU2 J3 Blue
32	57M10488	1	Elec. Connector Terminal	-
32	57M10330	1	Elec. Connector Terminal	-
32	57M10514	1	Elec. Connector Terminal	-
32	57M8528	1	Electrical Connector Cap	-
33	57M10514	1	Elec. Connector Terminal	-
33	57M10613	1	Elec. Connector Housing	-
33	57M10330	1	Elec. Connector Terminal	-
33	57M10488	1	Elec. Connector Terminal	-
33	57M10420	1	Elec. Connector Housing	LCU2 J2 Gray
34	57M10609	1	Elec. Connector Housing	LCU2 J1 Black
34	57M10488	1	Elec. Connector Terminal	-
34	57M10330	1	Elec. Connector Terminal	-
34	57M10514	1	Elec. Connector Terminal	-
34	57M8528	1	Electrical Connector Cap	-
35	57M8795	1	Elec. Connector Housing	LCU1 2
35	57M8704	1	Elec. Connector Accessory	-
35	57M9225	1	Elec. Connector Terminal	-
35	57M8165	1	Elec. Connector Terminal	-
35	57M8569	1	Elec. Connector Terminal	-
35	57M8593	1	Elec. Connector Terminal	-
36	57M9513	1	Elec. Connector Housing	LC1
36	57M9808	1	Elec. Connector Terminal	-
36	57M8165	1	Elec. Connector Terminal	-
36	57M7546	1	Elec. Connector Terminal	-
36	57M8569	1	Elec. Connector Terminal	-
36	57M8704	1	Elec. Connector Accessory	-
37	57M10528	1	Elec. Connector Accessory	-
38	24M7207	1	Washer	8.400 X 24 X 2 mm
39	R44302	1	Tie Band	-
40	19M7798	1	Screw	M8 X 40
41	GX22456	3	Screw	-
