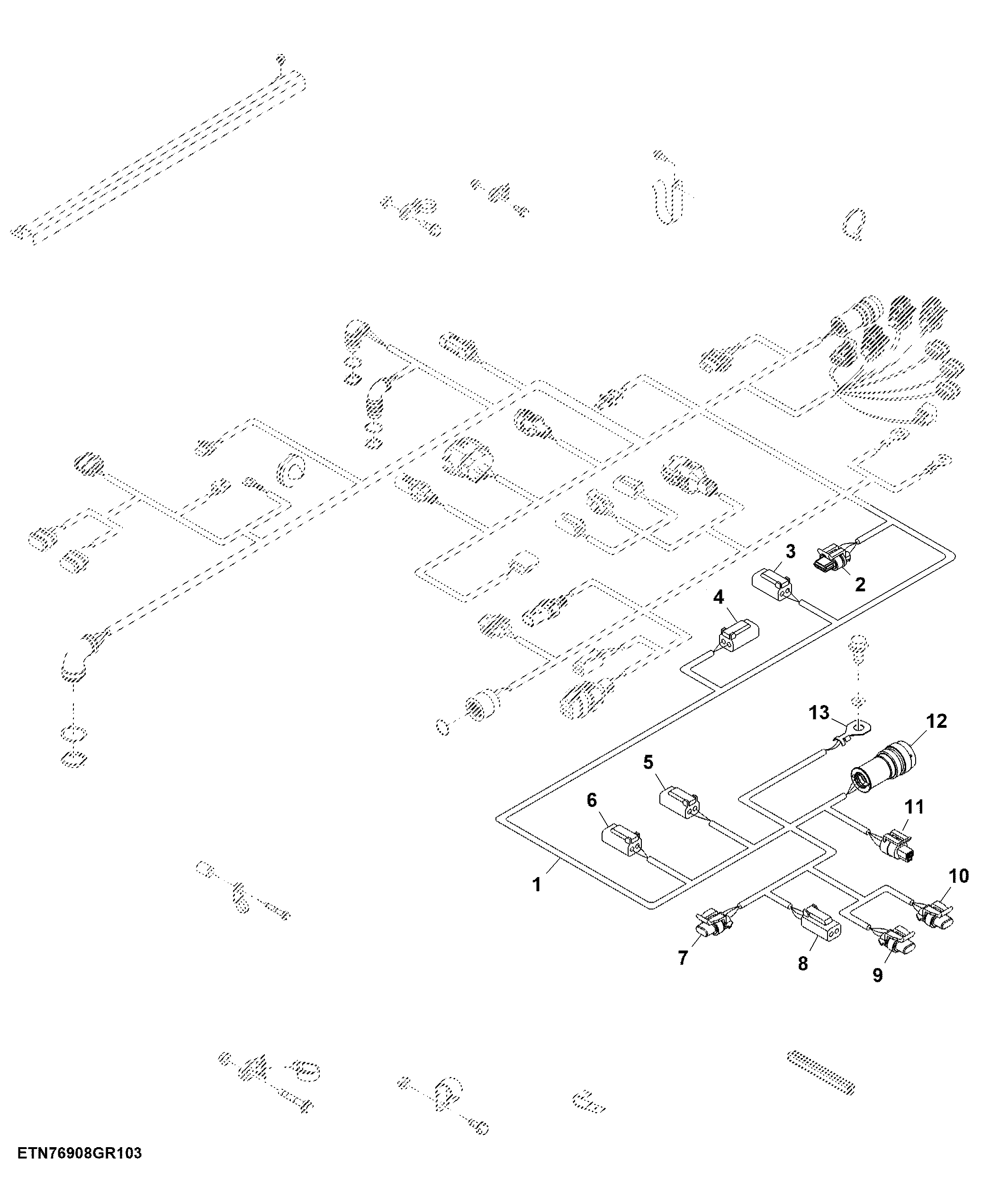

Left Control Unit 1 Wiring Harness (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE34184	1	Wiring Harness	Main Wiring Harness; SUB FOR AXE19397
2	57M11408	1	Elec. Connector Housing	Trash Clear Sensor
2	57M9474	1	Elec. Connector Terminal	-
2	57M8299	3	Elec. Connector Terminal	-
2	57M9523	3	Elec.Connect Locking Device	-
3	57M10517	1	Elec. Connector Housing	Convey Auger Speed
3	57M8165	1	Elec. Connector Terminal	-
3	57M8022	1	Elec.Connect Locking Device	-
3	57M10486	1	Elec. Connector Accessory	-
4	57M10517	1	Elec. Connector Housing	Fan Speed
4	57M8165	1	Elec. Connector Terminal	-
4	57M8022	1	Elec.Connect Locking Device	-
4	57M10486	1	Elec. Connector Accessory	-
5	57M10517	1	Elec. Connector Housing	Tailing Speed
5	57M8165	1	Elec. Connector Terminal	-
5	57M8022	1	Elec.Connect Locking Device	-
5	57M10486	1	Elec. Connector Accessory	-
6	57M10486	1	Elec. Connector Accessory	-
6	57M8022	1	Elec.Connect Locking Device	-
6	57M10517	1	Elec. Connector Housing	Clean Grain Speed
6	57M8165	1	Elec. Connector Terminal	-
7	57M7254	1	Elec. Connector Housing	Header Lower
7	57M7491	1	Elec. Connector Terminal	-
7	57M9712	1	Elec. Connector Accessory	-
8	57M8021	1	Electrical Connector Assy	Header Rise
8	57M8165	1	Elec. Connector Terminal	-
8	57M10486	1	Elec. Connector Accessory	-
9	57M9712	1	Elec. Connector Accessory	-
9	57M7491	1	Elec. Connector Terminal	-
9	57M7254	1	Elec. Connector Housing	Accumulator Shutoff
10	57M7796	1	Elec. Connector Housing	HDR Lift Cycle Press
10	57M7496	1	Elec. Connector Terminal	-
11	57M7796	1	Elec. Connector Housing	Rotor Drive Press
11	57M7496	1	Elec. Connector Terminal	-
12	57M9514	1	Elec. Connector Housing	Valve Harness
12	57M8165	1	Elec. Connector Terminal	-
12	57M9526	1	Elec. Connector Terminal	-
12	57M10485	1	Elec. Connector Accessory	-
13	57M8866	1	Elec. Connector Terminal	Valve Ground

Left Control Unit 1 Wiring Harness (3/3)
