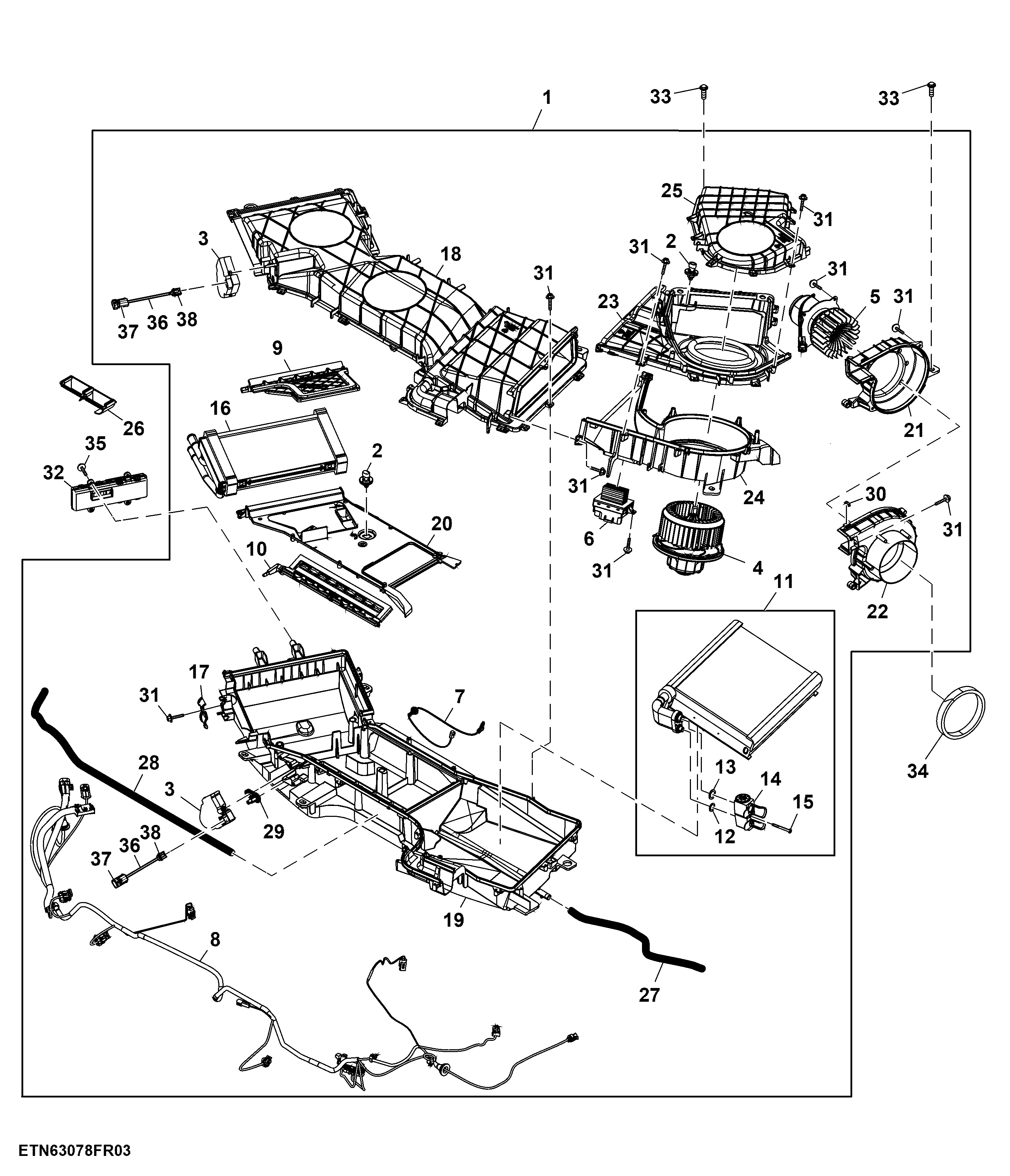

Heating Ventilation and Air Conditioning Module W/ Controller

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE53834	1	Air Conditioner	SUB FOR AXE39924
2	AH219847	2	Sensor	Temperature
3	AXE86617	1	Actuator	-
3	AH219855	2	Actuator	ORDER AXE86617
4	AH235218	1	Blower	-
5	AH235219	1	Blower	-
6	AH235220	1	Module	-
7	AH235223	1	Sensor	-
8	AH235643	1	Wiring Harness	HVAC
9	AL203084	1	Valve	-
10	AL203085	1	Valve	-
11	AL203086	1	Evaporator	-
12	AH220424	1	Sealing Washer	-
13	AH220426	1	Sealing Washer	-
14	AL203088	1	Valve	-
15	H220863	2	Screw	-
16	AL207333	1	Heater	-
17	H220874	1	Clamp	-
18	HXE95568	1	Case	SUB FOR L203214; HVAC UP
19	L203215	1	Case	HVAC Low
20	L203216	1	Case	Separator
21	L203217	1	Case	Pressurizer Blower, Motor Side
22	L203218	1	Case	Pressurizer Blower, Fan Side
23	L203219	1	Case	Main Blower, Upper
24	L203220	1	Case	Main Blower, Lower
25	AXE39925	1	Case	Air Inlet, Cover Mixchamber SUB FOR L203221
26	L210120	1	Guide	-
27	L207192	1	Hose	Short LH
28	L207193	1	Hose	Long RH
29	L203228	1	Lever	-
30	L204984	2	Clamp	-
31	L205030	68	Screw	-
32	AXE67276	1	Vehicle Controller	SUB FOR AXE10671
33	R216839	12	Screw	-
34	HXE63518	1	Seal	-
35	L207160	4	Screw	-
36	AXE86619	1	Wiring Harness	USE WITH AXE86617
37	57M7263	1	Elec. Connector Housing	A
37	57M7252	5	Elec. Connector Terminal	Cavity A, C, D, E, F
37	57M9214	5	Elec. Connector Seal	-
37	57M7259	1	Elec. Connector Seal	Cavity B
37	57M7291	1	Electrical Connector Assy	Terminal Position Assurance
38	57M16475	1	Elec. Connector Housing	-
38	57M13491	5	Elec. Connector Terminal	Cavity 5, 6, 8, 9, 10

Heating Ventilation and Air Conditioning Module W/ Controller

Нет текстового описания
