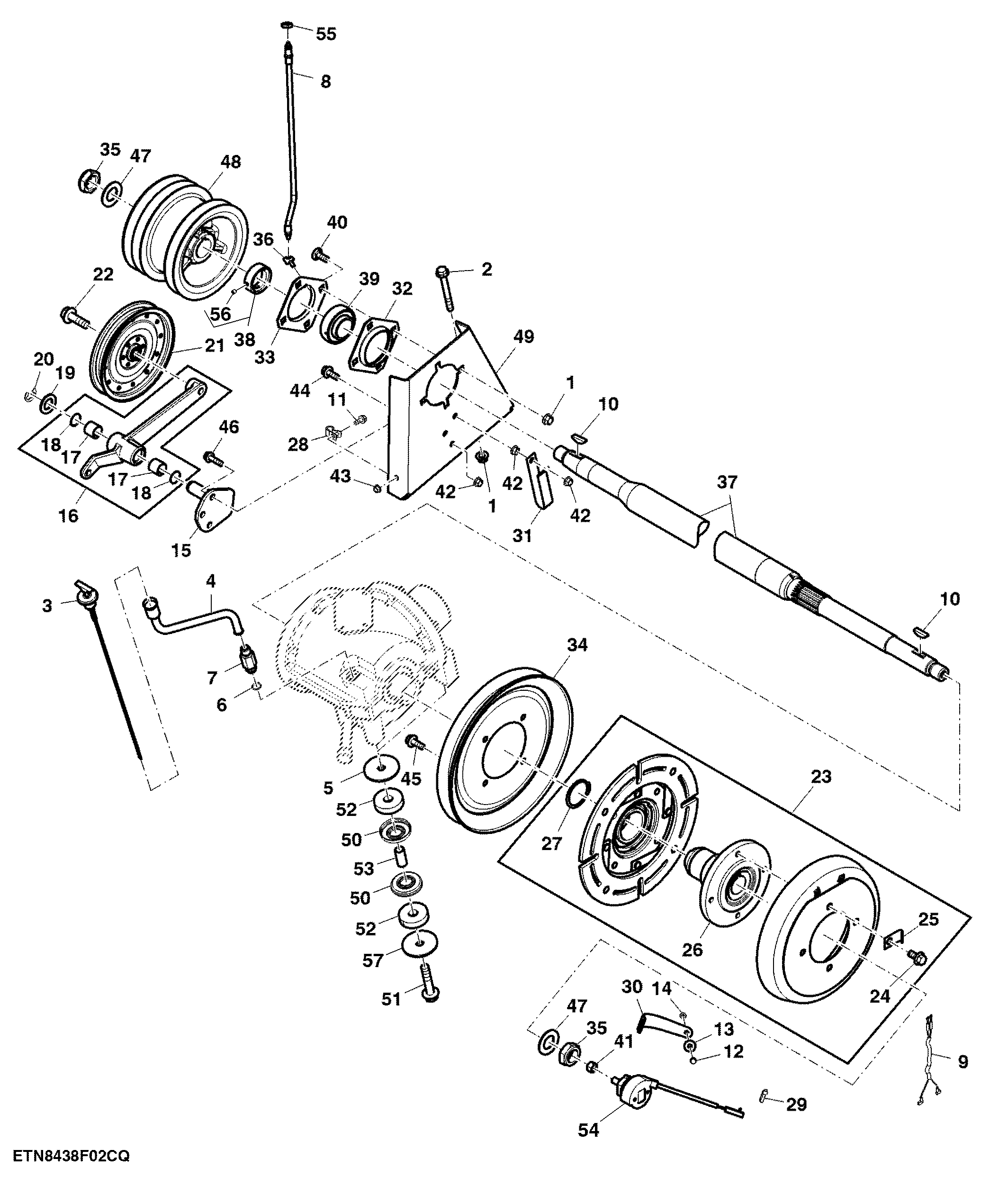

Primary Countershaft Drive, Low HP, Standard Capacity

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7299	6	Flange Nut	M12
2	19M7837	2	Screw	M12 X 110
3	AXE23429	1	Dipstick	-
4	AH214987	1	Dipstick Tube	-
5	H163726	2	Washer	-
6	R26375	1	O-Ring	-
7	H164518	1	Adapter Fitting	-
8	AH121005	1	Hose	LGTH = 1200 mm
9	AH134207	1	Wiring Harness	-
10	26H105	2	Shaft Key	3/8" X 2-1/8"
11	19M7868	1	Screw	M8 X 30
12	19M7775	1	Screw	M6 X 16
13	24M7207	1	Washer	8.400 X 24 X 2 mm
14	14M7303	1	Flange Nut	M6
15	AH212002	1	Pin	-
16	AH202631	1	Arm	-
17	H171061	2	Bushing	-
18	AA5607R	2	Seal	-
19	24M7091	1	Washer	26 X 44 X 4 mm
20	P46402	1	Snap Ring	-
21	AH97031	1	Idler	-
22	19M7794	1	Screw	M16 X 50
23	AH234499	1	Clutch	-
24	19M7788	4	Screw	M12 X 25
25	AH77279	1	Clip	-
26	H236500	1	Hub	-
27	T44824	1	Snap Ring	-
28	AH80916	1	Clip	-
29	A78364	2	Tie Band	-
30	H134773	1	Strap	-
31	H158691	1	Clip	-
32	H160465	1	Pressed Flanged Housing	-
33	H160466	1	Pressed Flanged Housing	-
34	H161270	1	Pulley	-
35	H165447	2	Lock Nut	-
36	H171472	1	Adapter Fitting	-
37	H202801	1	Shaft	-
38	JD8579	1	Eccentric Locking Collar	-
39	JD9339	1	Ball Bearing	-
40	03M7198	4	Bolt	M12 X 30
41	14H809	1	Nut	1/2"
42	14M7296	4	Flange Nut	M10
43	14M7298	1	Flange Nut	M8
44	19M7785	2	Screw	M10 X 25
45	19M7789	4	Screw	M12 X 30
46	19M7835	1	Screw	M10 X 35
47	24H1668	2	Washer	1-17/64" X 2-1/4" X 0.134"
48	HXE10397	1	Pulley	-
49	HXE24692	1	Bracket	-
50	H148133	4	Retainer	-
51	19M7827	2	Screw	M16 X 80
52	H148132	4	Bushing	-
53	Z64078	2	Spacer	-
54	AH161012	1	Carbon Brush Holder	-
55	E12379	1	Nut	-
56	22H979	1	Set Screw	3/8" X 3/8"
57	HXE93085	2	Washer	-

Primary Countershaft Drive, Low HP, Standard Capacity
