Открытый узел

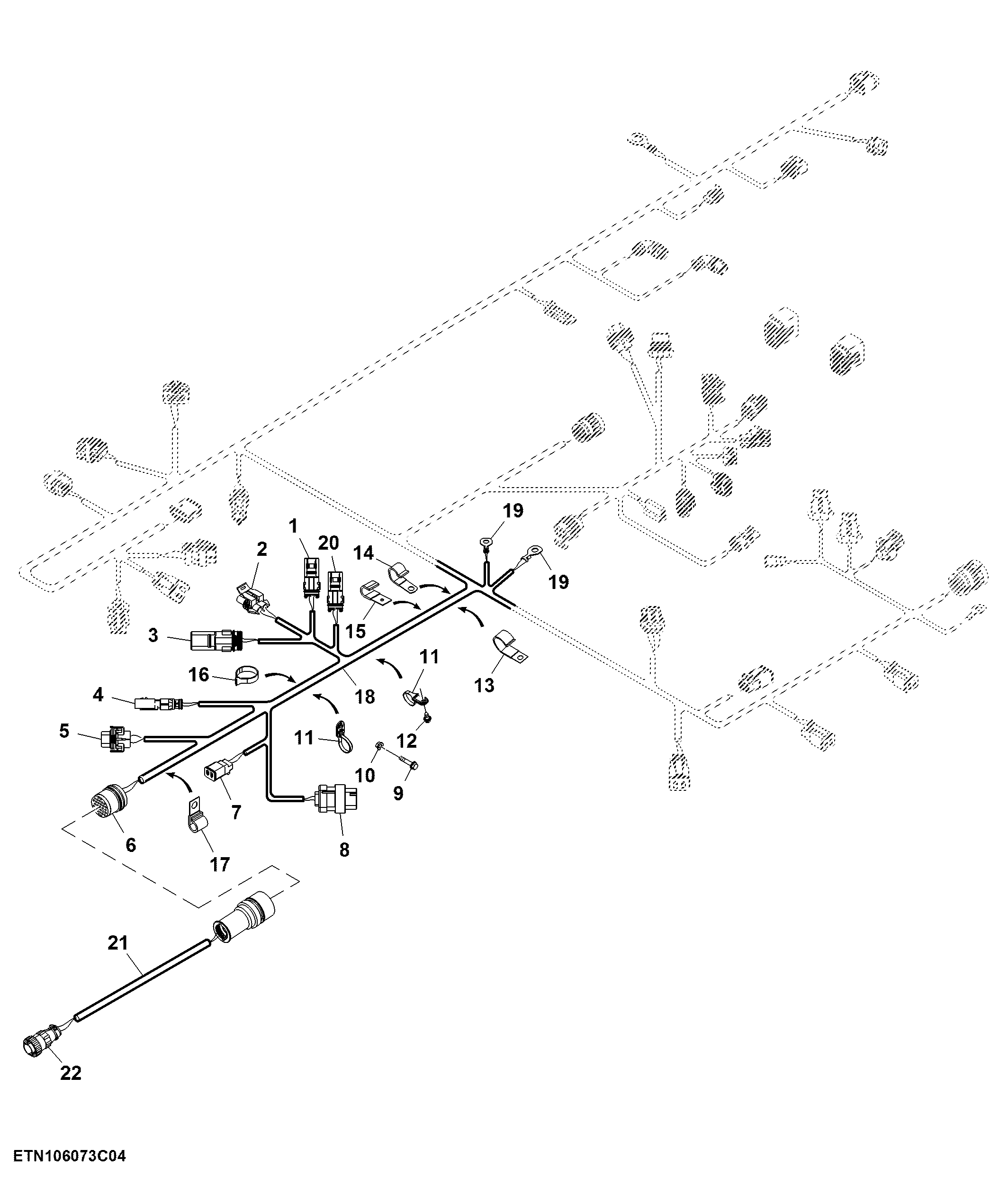

Left Control Unit 1, Wiring Harness, Jumper (4/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8165	2	Elec. Connector Terminal	-
1	57M10486	1	Elec. Connector Accessory	-
1	57M8022	1	Elec.Connect Locking Device	-
1	57M10517	1	Elec. Connector Housing	Y95 Reel Reverse Solenoid
2	57M7254	1	Elec. Connector Housing	Y114 Reel Speed Adjust Solenoid
2	57M9215	2	Elec. Connector Seal	-
2	R104846	2	Elec. Connector Terminal	-
2	57M9556	1	Elec. Connector Accessory	-
3	57M10517	1	Elec. Connector Housing	Y34 Feeder House Reverse Solenoid
3	57M8165	2	Elec. Connector Terminal	-
3	57M10486	1	Elec. Connector Accessory	-
3	57M8022	1	Elec.Connect Locking Device	-
4	57M9784	1	Elec. Connector Housing	LC1 Main / Left Front Light Ext
4	57M9939	1	Elec. Connector Accessory	-
4	57M9838	1	Elec. Connector Accessory	-
4	57M9813	1	Elec. Connector Terminal	-
4	57M10602	2	Elec. Connector Terminal	-
5	57M7344	1	Elec. Connector Housing	E30 Left Stubble Light
5	57M7491	1	Elec. Connector Terminal	-
5	57M7297	1	Elec. Connector Terminal	-
5	57M9216	1	Elec. Connector Seal	-
5	57M9219	1	Elec. Connector Seal	-
5	57M7371	1	Electrical Connector Assy	-
6	57M10485	1	Elec. Connector Accessory	-
6	57M11367	2	Elec. Connector Terminal	-
6	57M10940	1	Elec. Connector Housing	LC1 Main Harness / Header Multicoupler
6	57M11368	29	Elec. Connector Terminal	-
7	57M10517	1	Elec. Connector Housing	B49 Feed Accelerator Speed Sensor
7	57M8165	2	Elec. Connector Terminal	-
7	57M10486	1	Elec. Connector Accessory	-
7	57M8022	1	Elec.Connect Locking Device	-
8	57M9786	1	Elec. Connector Housing	B49 Feed Accelerator Speed Sensor
8	57M10336	3	Elec. Connector Cavity Plug	-
8	57M10321	3	Elec. Connector Terminal	-
8	57M10230	1	Elec. Connector Accessory	-
9	19M7867	17	Screw	M8 X 25
10	14M7298	23	Flange Nut	M8
11	57M10528	32	Elec. Connector Accessory	-
12	GX22456	20	Screw	-
13	AH130222	1	Clamp	-
14	AH90990	3	Clip	-
15	M81210	1	Clamp	-
16	H224073	14	Tie Band	-
17	AH89557	1	Clip	-
18	AXE43343	1	Wiring Harness	-
19	57M8867	2	Elec. Connector Terminal	-
20	57M7796	1	Elec. Connector Housing	-
21	AH235184	1	Wiring Harness	Hidraflex Cutting Platform
21	AH235185	1	Wiring Harness	Corn Head
21	AH235186	1	Wiring Harness	Rigid Cutting Platform
22	57M7822	1	Electrical Connector Assy	Header Extenssion
22	57M8947	1	Elec. Connector Accessory	-
22	57M7391	1	Elec. Connector Seal	-

Left Control Unit 1, Wiring Harness, Jumper (4/5)

Нет текстового описания
