Control Valve, Valve Stack, W/ Counter-Master™, 7 Function (110100 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE27433	1	Pressure Relief Valve	Left Tilt Function V93
1	AXE27433	1	Pressure Relief Valve	Right Tilt Function V92
1	AXE27424	2	Seal Kit	-
2	AXE70320	1	Pressure Relief Valve	Reel Raise / Lower V22, SUB FOR AXE27417
2	AXE70320	1	Pressure Relief Valve	Reel Fore SUB FOR AXE27417
2	AXE70320	1	Pressure Relief Valve	Reel Aft SUB FOR AXE27417
2	AXE27424	3	Seal Kit	-
3	AXE27337	1	Pressure Relief Valve	Reel Raise and Lower V56
3	AXE27426	1	Seal Kit	-
4	RE190805	1	Diagnostic Coupling	-
5	R77175	1	Cover	-
6	AXE27424	1	Seal Kit	-
6	AXE49309	1	Control Valve	Threshing Speed V61, SUB FOR AXE27412
7	AXE27422	1	Wiring Harness	Hydraulic Integrated Control Valve Harness
7	57M7534	1	Elec. Connector Housing	-
7	57M7620	1	Electrical Connector Assy	-
7	57M7666	2	Elec. Connector Housing	-
7	57M8165	1	Elec. Connector Terminal	-
8	HXE42669	1	Bracket	-
9	12H302	3	Lock Washer	1/4"
10	AXE27416	2	Check Valve	Reel Fore / Aft D4
10	AXE27424	6	Seal Kit	-
10	AXE27416	2	Check Valve	Lateral Tilt LH / RH D6
10	AXE27416	2	Check Valve	Reel Fore / Aft D5
11	AXE27421	3	Piston	-
12	AXE27415	3	Solenoid Hydraulic Valve	Unloading Auger Swing, Orange Y8
12	AXE27415	3	Solenoid Hydraulic Valve	Unloading Auger Extend, Red Y9
12	AXE27415	3	Solenoid Hydraulic Valve	Reel Fore / Aft, Blue Y10
12	AXE27415	3	Solenoid Hydraulic Valve	Reel Extend, Light Blue Y11
12	AXE27415	3	Solenoid Hydraulic Valve	Feeder House Lateral Tilt Y12
12	AXE27415	3	Solenoid Hydraulic Valve	Feeder House Lateral Tilt Right Y13
12	AXE27425	3	Seal Kit	-
13	AXE27423	8	Solenoid Valve Coil	-
14	AXE27339	1	Solenoid Hydraulic Valve	Reel Raise Y5
14	AXE27414	1	Seal Kit	-
15	HXE42664	1	Orifice	-
16	HXE42668	1	Orifice	-
17	AXE27420	1	Solenoid Hydraulic Valve	Threshing Speed Increase Y6
17	AXE25429	1	Seal Kit	-
18	AXE27435	2	Solenoid Valve Coil	-
19	AXE25429	1	Seal Kit	-
19	AXE27338	1	Solenoid Hydraulic Valve	Pressure Supply Y1
20	AXE27411	1	Solenoid Hydraulic Valve	Reel Lower Y4
20	AXE27424	1	Seal Kit	-
21	AXE27413	2	Orifice	-
22	38H5037	7	Adapter Fitting	-
23	T77613	7	O-Ring	-
24	51M7042	7	O-Ring	13.300 X 2.200 mm
25	HXE42663	1	Orifice	-
26	38H5011	1	Adapter Fitting	-
27	T77814	2	O-Ring	-
28	51M7041	3	O-Ring	11.300 X 2.200 mm
29	HXE42666	1	Orifice	-
30	HXE42667	1	Orifice	-
31	H170527	1	Washer	Yellow
32	H170523	1	Washer	Green
33	H170526	1	Washer	Red
34	38H5004	1	Adapter Fitting	-
35	T77932	1	O-Ring	-
36	51M7045	1	O-Ring	19.300 X 2.200 mm
37	19M7887	3	Screw	M5 X 10
38	57M8035	2	Nut	-
39	57M9061	1	Elec.Connect Locking Device	-
40	AXE26862	1	Flow Control Hyd. Valve	ORDER AXE62069
40	AXE62069	1	Flow Control Hyd. Valve	-
41	N282069	1	Elec. Connector Terminal	-
42	RE46684	1	Fitting Plug	-
43	R107768	1	Drain Plug	-
44	19M7836	2	Screw	M10 X 110
45	AXE27418	2	Check Valve	Right Function D15
45	AXE27424	1	Seal Kit	-
46	AXE67945	1	Control Valve	SUB FOR AXE62078
47	R109691	2	Nut	-
48	R28782	4	O-Ring	-
49	AKK18724	4	Fitting Plug	-

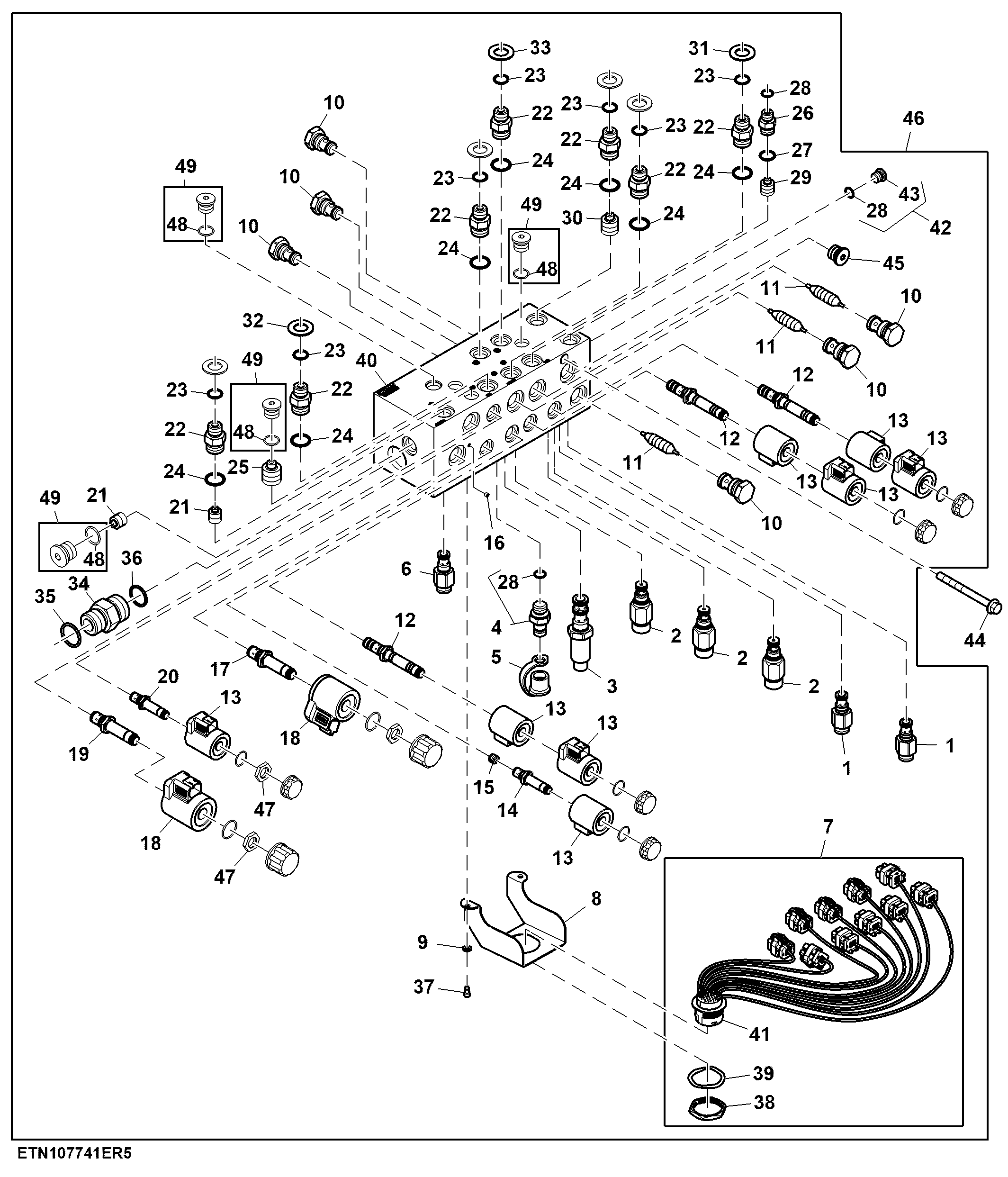

Control Valve, Valve Stack, W/ Counter-Master™, 7 Function (110100 - )
