Wiring Harness, Reel W/O Remote Shoe Adjust

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH89557	1	Clip	-
2	14M7296	1	Flange Nut	M10
3	19M7783	1	Screw	M10 X 16
4	AXE63153	1	Wiring Harness	ORDER AXE66301
4	AXE78648	1	Wiring Harness	SUB FOR AXE66301
5	57M7254	1	Elec. Connector Housing	Y11 Reel Extend Solenoid
5	57M10770	2	Elec. Connector Terminal	Cavity A, B
5	57M9215	2	Elec. Connector Seal	Cavity A, B
6	57M8022	1	Elec.Connect Locking Device	-
6	57M11230	1	Elec. Connector Accessory	-
6	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
6	57M8021	1	Electrical Connector Assy	Y10 Reel Retract Solenoid
7	57M10421	20	Elec. Connector Accessory	-
8	R78053	1	Electrical Connector Assy	B49 Feed Accelerator Speed Sensor
8	57M7251	2	Elec. Connector Terminal	Cavity A, B
8	57M9219	2	Elec. Connector Seal	Cavity A, B
8	57M9555	1	Clip	-
9	57M10280	1	Elec. Connector Terminal	Left Front Chassis Ground 1
10	57M10233	14	Tie Band	-
11	57M9555	1	Clip	-
11	57M9219	2	Elec. Connector Seal	Cavity A, B
11	R78053	1	Electrical Connector Assy	B38 Grain Elevator Speed Sensor
11	57M7251	2	Elec. Connector Terminal	Cavity A, B
12	R78053	1	Electrical Connector Assy	B10 Tailings Elevator Speed Sensor
12	57M9219	2	Elec. Connector Seal	Cavity A, B
12	57M9555	1	Clip	-
12	57M7251	1	Elec. Connector Terminal	Cavity A, B
13	AH225365	1	Clip	-
14	57M9383	1	Elec. Connector Accessory	-
14	57M8538	2	Elec. Connector Terminal	Cavity 29, 30
14	Z78008	17	Elec. Connector Seal	Cavity 11, 12, 13, 14, 15, 16, 17, 18, 19, 22, 23, 24, 25, 26, 27, 28, 31
14	57M8164	13	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 21
14	57M9512	1	Elec. Connector Housing	Main Harness/ Left Chassis
15	57M9776	1	Elec. Connector Housing	A2 Main CAN BUS Terminator 2
15	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
15	57M9837	1	Elec. Connector Accessory	-
15	57M11134	1	Elec. Connector Housing	-
16	57M9734	1	Elec. Connector Housing	B13A Discharge Beater Speed Sensor
16	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 3
16	57M9838	1	Elec. Connector Accessory	-
17	R44302	1	Tie Band	-
18	19M7864	1	Screw	M8 X 12
19	57M8035	1	Nut	-
20	57M9061	1	Elec.Connect Locking Device	-

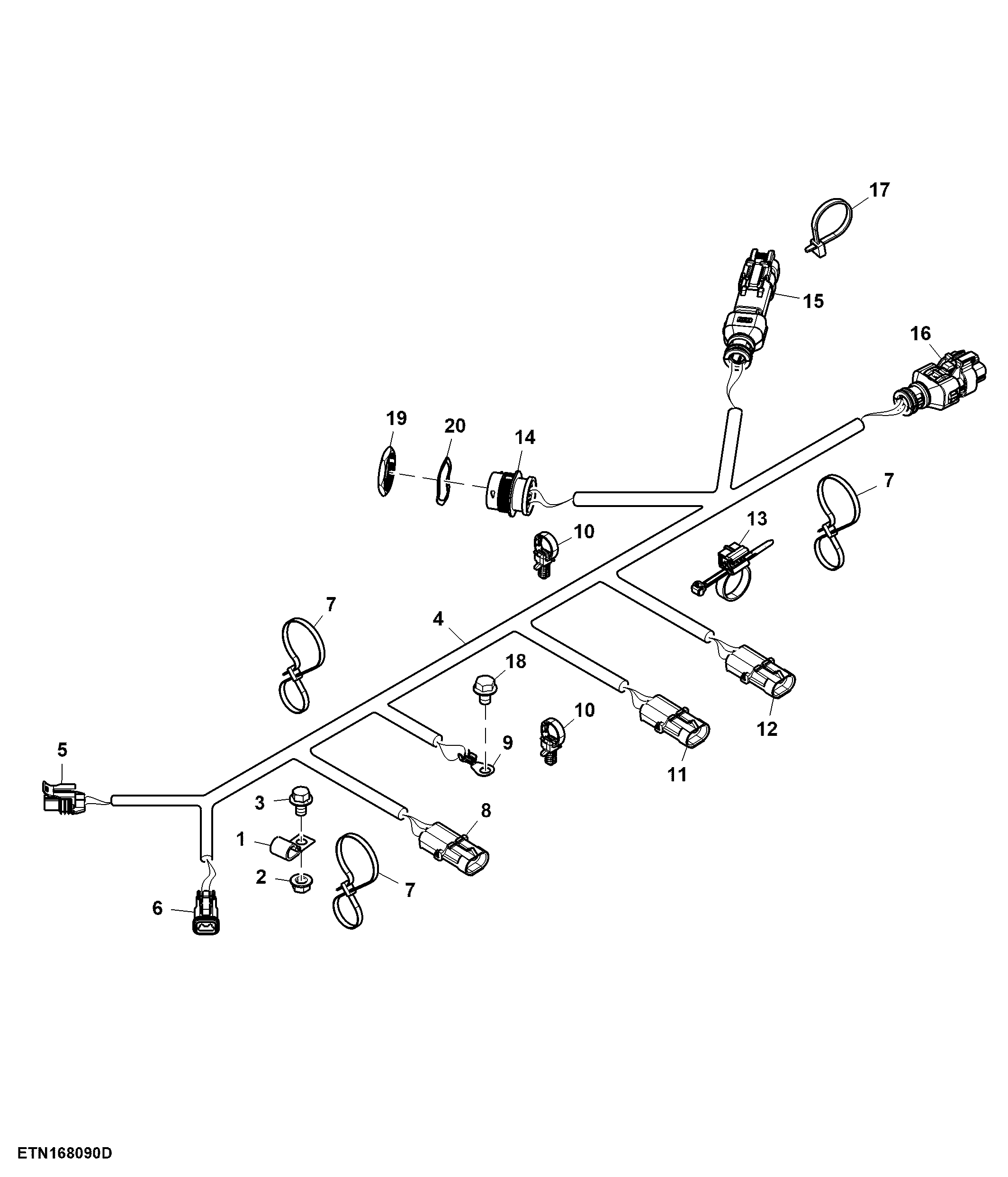

Wiring Harness, Reel W/O Remote Shoe Adjust
