JDLink™ Controller Support and Hardware, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE11140	1	Field Install Template Kit	-
2	AXE71321	1	Wiring Harness	-
3	57M8260	1	Elec. Connector Terminal	Cavity 1, 27
3	57M8592	1	Elec. Connector Terminal	Cavity 2
3	57M9812	4	Elec. Connector Terminal	Cavity 3, 4, 13, 14
3	57M9811	1	Elec. Connector Terminal	Cavity 18
3	57M11742	1	Elec. Connector Terminal	Cavity 23
3	57M9813	3	Elec. Connector Terminal	Cavity 24, 25, 26
3	57M9814	15	Elec. Connector Cavity Plug	Cavity 5, 6, 7, 8, 9, 10, 11, 12, 15, 16, 17, 19, 20, 21, 22
3	R78069	1	Elec. Connector Cavity Plug	Cavity 28
3	57M11528	1	Elec. Connector Accessory	-
3	57M11525	1	Elec. Connector Housing	GSIX to Cab Wall Plate
4	57M7437	3	Elec. Connector Terminal	Cavity 3, 8, 16
4	57M7722	1	Electrical Connector Assy	-
4	57M11552	2	Elec. Connector Terminal	Cavity 6, 14
4	57M7550	4	Elec. Connector Terminal	Cavity 1, 2, 9, 10
4	57M7717	1	Electrical Connector Assy	A55 Premium Server
5	57M7262	1	Elec. Connector Housing	GSIX to Telematics Extension
5	57M11218	2	Elec. Connector Terminal	Cavity A, B
5	57M10770	2	Elec. Connector Terminal	Cavity F, J
5	57M7494	1	Elec. Connector Terminal	Cavity G
5	57M9214	3	Elec. Connector Seal	Cavity A, B, G
5	57M7259	5	Elec. Connector Seal	Cavity C, D, E, H, K
6	57M11528	1	Elec. Connector Accessory	-
6	57M9814	18	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 15, 16, 17, 18, 19, 20, 21, 22
6	57M9807	1	Elec. Connector Terminal	Cavity 23
6	57M8569	2	Elec. Connector Terminal	Cavity 1, 2, 27, 28
6	57M11523	1	Elec. Connector Housing	Can Main to GSIX
6	57M9809	3	Elec. Connector Terminal	Cavity 24, 25, 26
7	57M8869	1	Elec. Connector Terminal	Cab Chassis Ground 2
8	57M8869	1	Elec. Connector Terminal	Cab Electronics Ground
9	19M7868	4	Screw	M8 X 30
10	H156360	6	Nut	-
11	AXE69550	1	Wiring Harness	-
12	57M7265	1	Elec. Connector Housing	Telematics to Cab Main Harness
12	57M10407	4	Elec. Connector Terminal	Cavity A, B, C, D
12	57M9555	1	Clip	-
12	57M7259	3	Elec. Connector Seal	Cavity E, H, K
13	57M10615	1	Elec. Connector Housing	A81 Control Unit Modular Telematics Gateway
13	57M10334	5	Elec. Connector Cavity Plug	Cavity L2, L3, L4, M3, M4
13	57M10331	3	Elec. Connector Terminal	Cavity L1, M1, M2
13	57M10590	4	Elec. Connector Housing	Cavity G1, G2, H1, H2
13	57M10333	36	Elec. Connector Cavity Plug	Cavity A1, A2, A3, A4, B1, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, F4, G3, G4, H3, H4, J1, J2, J3, J4, K1, K2, K3, K4
14	19M7862	6	Screw	M6 X 20
15	19M7865	2	Screw	M8 X 16
16	L203411	4	Screw	-
17	HXE131695	1	Bracket	-
18	57M9636	3	Clip	-
19	57M10613	1	Elec. Connector Housing	-
20	57M10233	1	Tie Band	-

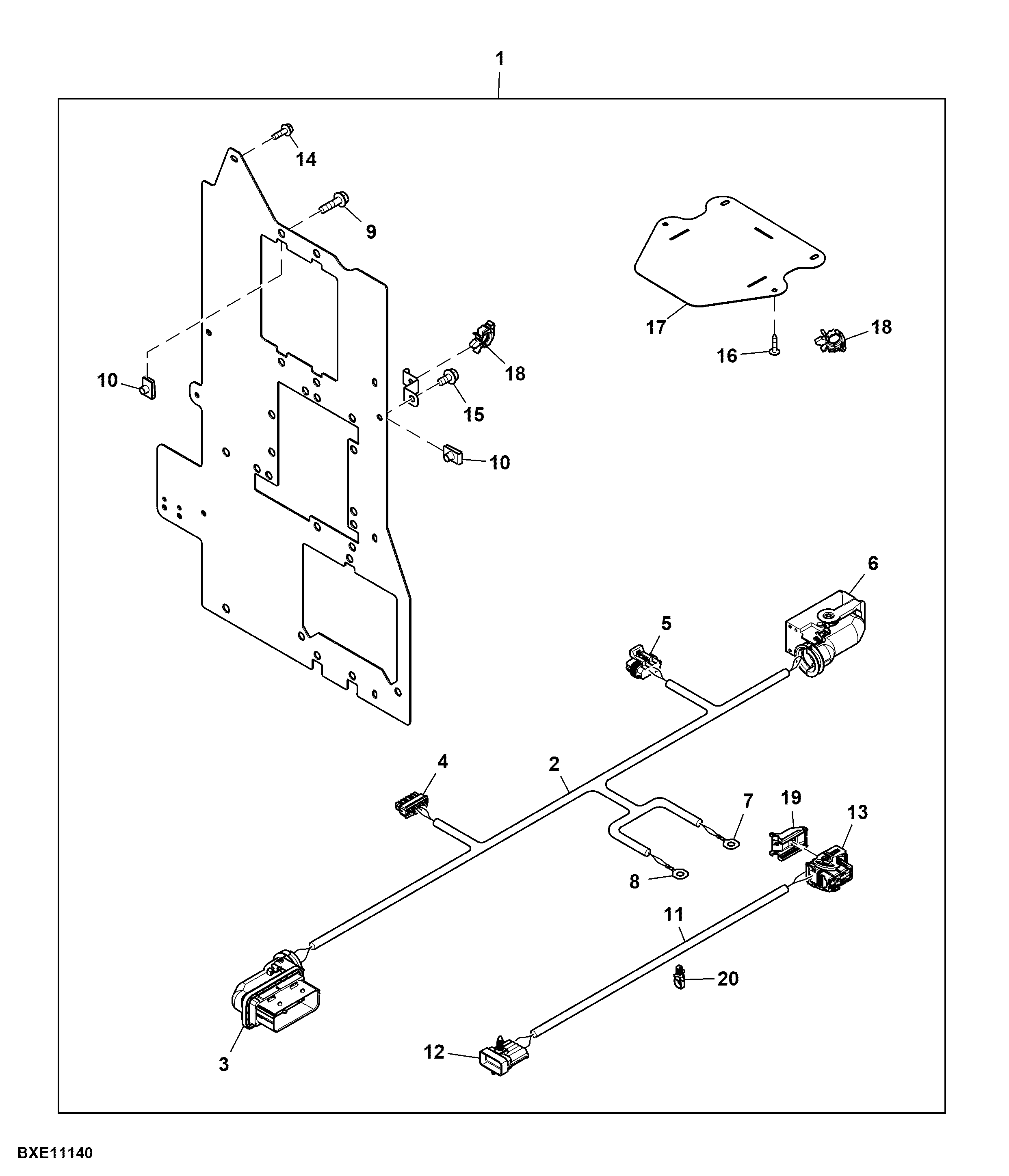

JDLink™ Controller Support and Hardware, Attachment
