Engine Wiring Harness (2 of 3)

Engine Wiring Harness (2 of 3)

Engine Wiring Harness (2 of 3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Engine Wiring Harness (2 of 3)

Нет текстового описания

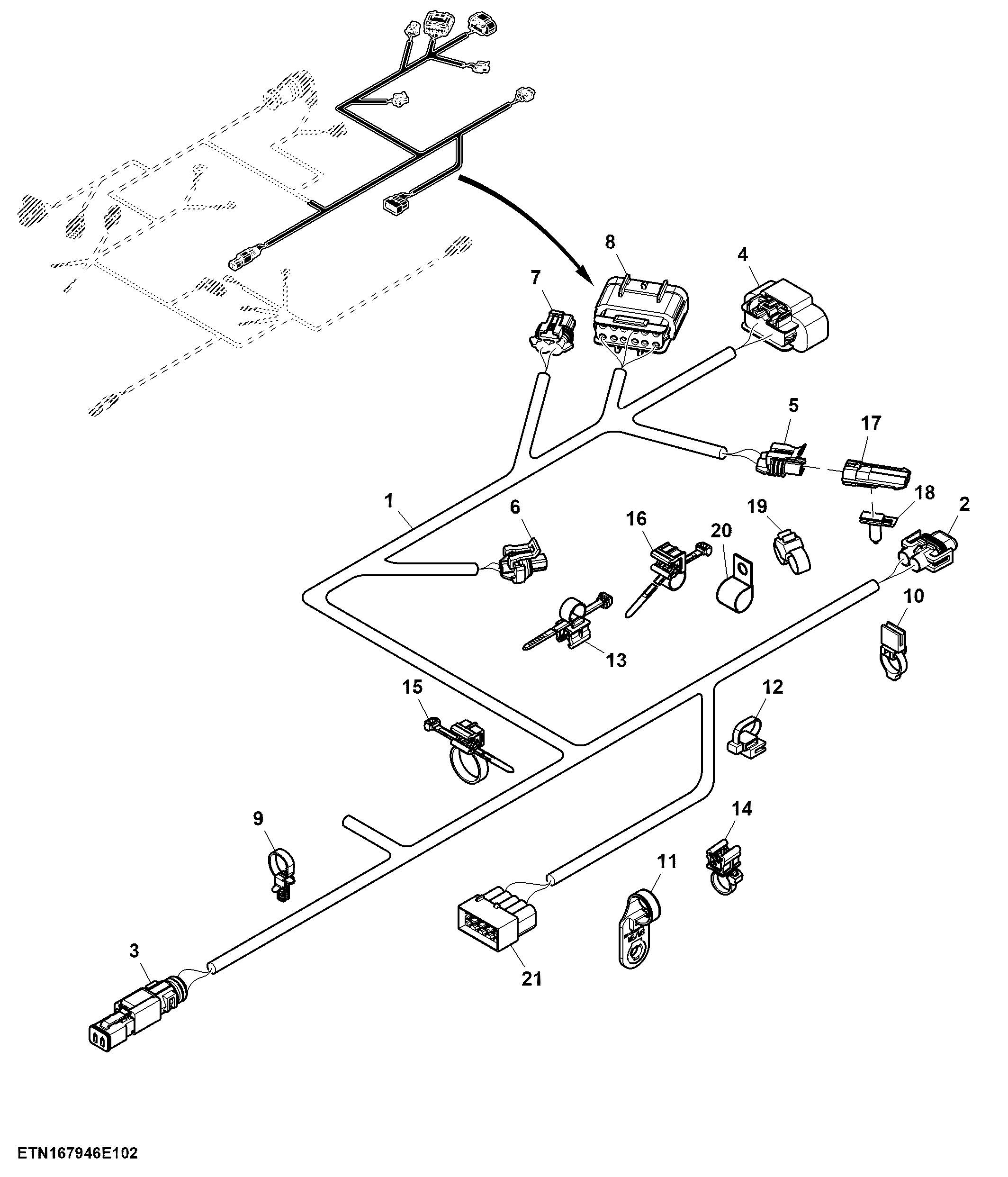

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE72649	1	Wiring Harness	SUB FOR AXE63096
2	57M7344	1	Elec. Connector Housing	E56 Engine Service Light Switch 1
2	57M9218	2	Elec. Connector Seal	Cavity A, B
2	57M7298	2	Elec. Connector Terminal	Cavity A, B
2	57M7371	1	Electrical Connector Assy	-
3	57M10517	1	Elec. Connector Housing	Y157 Air Pressure Solenoid
3	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
3	57M10486	1	Elec. Connector Accessory	-
3	57M8022	1	Elec.Connect Locking Device	-
4	57M8329	6	Electrical Connector Assy	Cavity G, H, J, K, L, M
4	57M11956	1	Elec. Connector Accessory	-
4	57M8318	1	Elec. Connector Terminal	Cavity C
4	57M12016	1	Elec. Connector Terminal	Cavity C
4	57M8324	2	Elec. Connector Terminal	Cavity B, F
4	57M8322	3	Elec. Connector Terminal	Cavity A, D, E
4	57M8304	2	Elec. Connector Terminal	Cavity B, F
4	57M8302	3	Elec. Connector Terminal	Cavity A, D, E
4	57M11467	1	Elec. Connector Housing	Engine Deck Harness / GLSP Tailings and 4WD Harness
5	57M7254	1	Elec. Connector Housing	B5600 Water In Fuel Sensor
5	57M10770	2	Elec. Connector Terminal	Cavity A, B
5	57M9215	2	Elec. Connector Seal	Cavity A, B
5	57M9712	1	Elec. Connector Accessory	-
6	57M8625	1	Elec. Connector Housing	B5107 Inlet Fuel Pressure Sensor
6	57M8602	3	Elec. Connector Terminal	Cavity A, B, C
6	57M9223	3	Elec. Connector Seal	Cavity A, B, C
6	57M8624	1	Elec.Connect Locking Device	-
7	57M8161	1	Elec. Connector Housing	M16 Fuel Transfer Pump
7	57M8162	1	Electrical Connector Assy	-
7	57M7491	2	Elec. Connector Terminal	Cavity A, B
7	57M9218	2	Elec. Connector Seal	Cavity A, B
8	57M11468	1	Elec. Connector Housing	Engine Deck Harness / GLSP Tailings and 4WD Harness (CAN Bus)
8	57M8306	2	Elec. Connector Terminal	Cavity D, E
8	57M8322	2	Elec. Connector Terminal	Cavity D, E
8	57M8329	10	Electrical Connector Assy	Cavity A, B, C, F, G, H, J, K, L, M
8	57M12095	1	Elec. Connector Accessory	-
8	57M11956	1	Elec. Connector Accessory	-
9	57M10233	23	Tie Band	-
10	57M10362	2	Clamp	-
11	57M10528	6	Elec. Connector Accessory	-
12	57M9229	1	Clip	-
13	AH225363	3	Clip	-
14	AH225364	5	Clip	-
15	AH225365	3	Clip	-
16	AH225366	2	Clip	-
17	57M7256	1	Elec. Connector Housing	-
18	57M8910	1	Clip	-
19	R213663	1	Clamp	-
20	R72659	1	Clamp	-
21	57M8579	1	Elec. Connector Housing	S24 Engine Service Light Switch
21	57M8079	2	Elec. Connector Terminal	Cavity 2, 3
21	57M7399	2	Elec. Connector Seal	Cavity 2, 3
21	57M7401	8	Elec. Connector Cavity Plug	Cavity 1, 4, 5, 6, 7, 8, 9, 10
