Cab Main Wiring Harness (2/3) (135338 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE85628	1	Wiring Harness	-
2	57M8858	1	Elec. Connector Housing	Cab Main Harness / Armrest Harness
2	57M8911	5	Elec. Connector Terminal	Cavity A, B, P, U, X
2	57M8913	16	Elec. Connector Terminal	Cavity C, D, E, F, G, H, J, K, L, M, N, R, T, V, W, Z
2	57M8912	1	Elec. Connector Terminal	Cavity S
2	57M8859	2	Elec.Connect Locking Device	-
2	57M8860	1	Elec.Connect Locking Device	-
3	57M11525	1	Elec. Connector Housing	Cab Main Harness / Cab Wall
3	57M8260	3	Elec. Connector Terminal	Cavity 1, 27, 28
3	57M8592	1	Elec. Connector Terminal	Cavity 2
3	57M9812	4	Elec. Connector Terminal	Cavity 3, 4, 13, 14
3	57M9811	1	Elec. Connector Terminal	Cavity 18
3	57M9813	4	Elec. Connector Terminal	Cavity 23, 24, 25, 26
3	57M9814	15	Elec. Connector Cavity Plug	Cavity 5, 6, 7, 8, 9, 10, 11, 12, 15, 16, 17, 19, 20, 21, 22
3	57M11528	1	Elec. Connector Accessory	-
4	57M11116	1	Elec. Connector Accessory	-
4	57M8592	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
4	57M10672	1	Elec. Connector Housing	Cab Main Harness / Cab Wall
5	57M13392	1	Elec. Connector Housing	Cab Main Harness / Cab Wall (Power)
5	57M11988	2	Elec. Connector Terminal	Cavity 1, 2
5	57M13116	2	Elec. Connector Seal	Cavity 1, 2
5	57M13115	1	Elec. Connector Accessory	-
6	57M8233	1	Electrical Connector Assy	K14 HVAC Relay
6	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
6	57M8237	2	Elec. Connector Seal	Cavity 1, 2
6	57M13364	2	Elec. Connector Terminal	Cavity 3, 4
6	57M9136	2	Elec. Connector Cable Seal	Cavity 3, 4
6	57M8239	4	Elec. Connector Terminal	Cavity 6, 7, 8, 9
6	AL156697	1	Relay	-
7	57M9217	9	Elec. Connector Seal	Cavity A3, A4, A7, A8, B7, B8, B12, D3, D4
7	57M9218	20	Elec. Connector Seal	Cavity A5, A11, B3, B4, B5, B6, B9, B11, C1, C2, C5, C7, C8, D7, D9, D10, E4, E8, E9, E10
7	57M9219	14	Elec. Connector Seal	Cavity A1, A2, A6, B1, B2, B10, C3, C4, C6, D11, D12, E3, E11, E12
7	57M9549	11	Elec. Connector Seal	Cavity A9, A10, A12, C9, C10, D1, D2, D8, E1, E2, E7
7	R78064	6	Elec. Connector Cavity Plug	Cavity C11, C12, D5, D6, E5, E6
7	57M7491	9	Elec. Connector Terminal	Cavity A11, B5, B6, B9, B11, C7, C8, E4, E8
7	57M7299	9	Elec. Connector Terminal	Cavity A3, A4, A7, A8, B7, B8, B12, D3, D4
7	57M7298	19	Elec. Connector Terminal	Cavity A1, A2, A5, A6, B1, B2, B3, B4, C1, C2, C5, C6, D7, D9, D10, E3, E9, E10, E12
7	57M7297	7	Elec. Connector Terminal	Cavity A10, B10, C3, C4, D11, D12, E11
7	AT424454	1	Electrical Load Center	Cab Fuse Box
7	57M8294	10	Elec. Connector Terminal	Cavity A9, A12, C9, C10, D1, D2, D8, E1, E2, E7
8	ET15766	1	Elec. Connector Housing	H35 Warning Horn
8	57M7511	2	Elec. Connector Terminal	Cavity 85, 86
8	M75140	1	Clip	-
9	57M9961	1	Elec. Connector Housing	Cab Main Harness / Armrest Harness (2 Pin)
9	57M7588	2	Elec. Connector Terminal	Cavity A, B
9	57M7706	2	Elec. Connector Terminal	Cavity A, B
9	57M9962	1	Elec.Connect Locking Device	-
10	57M8459	1	Elec. Connector Housing	CAN Bus Diagnostic Connector
10	57M13047	1	Elec. Connector Accessory	-
10	R78069	5	Elec. Connector Cavity Plug	Cavity E, F, G, H, J
10	57M8538	2	Elec. Connector Terminal	Cavity C, D
10	N282069	2	Elec. Connector Terminal	Cavity A, B
11	57M9131	1	Elec. Connector Terminal	A31 Recirculation Fan Motor Driver
11	57M8593	2	Elec. Connector Terminal	Cavity 1, 4
11	57M8569	2	Elec. Connector Terminal	Cavity 2, 3
11	Z70740	1	Elec. Connector Accessory	-
12	57M7262	1	Elec. Connector Housing	GSIX Harness / Telematics Extension
12	57M8907	1	Elec.Connect Locking Device	-
12	57M7259	5	Elec. Connector Seal	Cavity C, D, E, H, K
12	57M9215	2	Elec. Connector Seal	Cavity F, J
12	57M7494	1	Elec. Connector Terminal	Cavity G
12	57M10770	2	Elec. Connector Terminal	Cavity F, J
12	57M11218	2	Elec. Connector Terminal	Cavity A, B
12	57M9214	3	Elec. Connector Seal	Cavity A, B, G
13	57M13700	1	Electrical Connector Assy	S2 Park Brake Switch
13	57M7172	1	Elec. Connector Terminal	Cavity 1
14	57M13700	1	Electrical Connector Assy	S2 Park Brake Switch (In Line)
14	57M7430	1	Elec. Connector Terminal	Cavity 1
15	57M9541	2	Elec. Connector Terminal	Cavity A, B
15	57M9712	1	Elec. Connector Accessory	-
15	57M7258	2	Elec. Connector Seal	Cavity A, B
15	57M7254	1	Elec. Connector Housing	M3 Seat Compressor (In Line)
16	RE12363	1	Electrical Connector Assy	S9 Seat Switch
16	57M10924	2	Elec. Connector Terminal	Cavity A, B
16	57M9549	2	Elec. Connector Seal	Cavity A, B
17	57M9076	1	Elec. Connector Housing	A31 Recirculation Fan Motor Driver
17	57M8430	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
17	57M9077	1	Elec. Connector Accessory	-

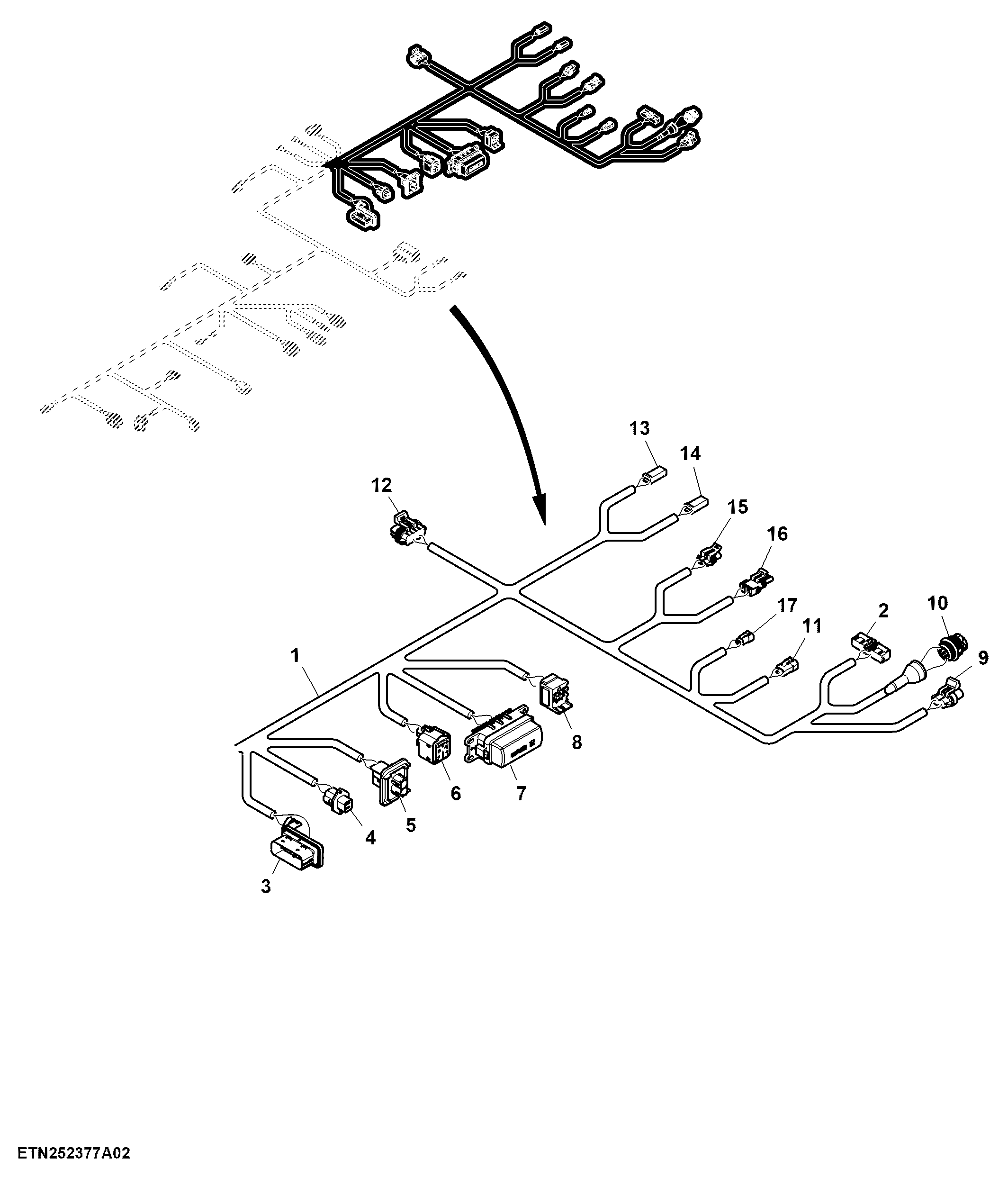

Cab Main Wiring Harness (2/3) (135338 - )
