Открытый узел

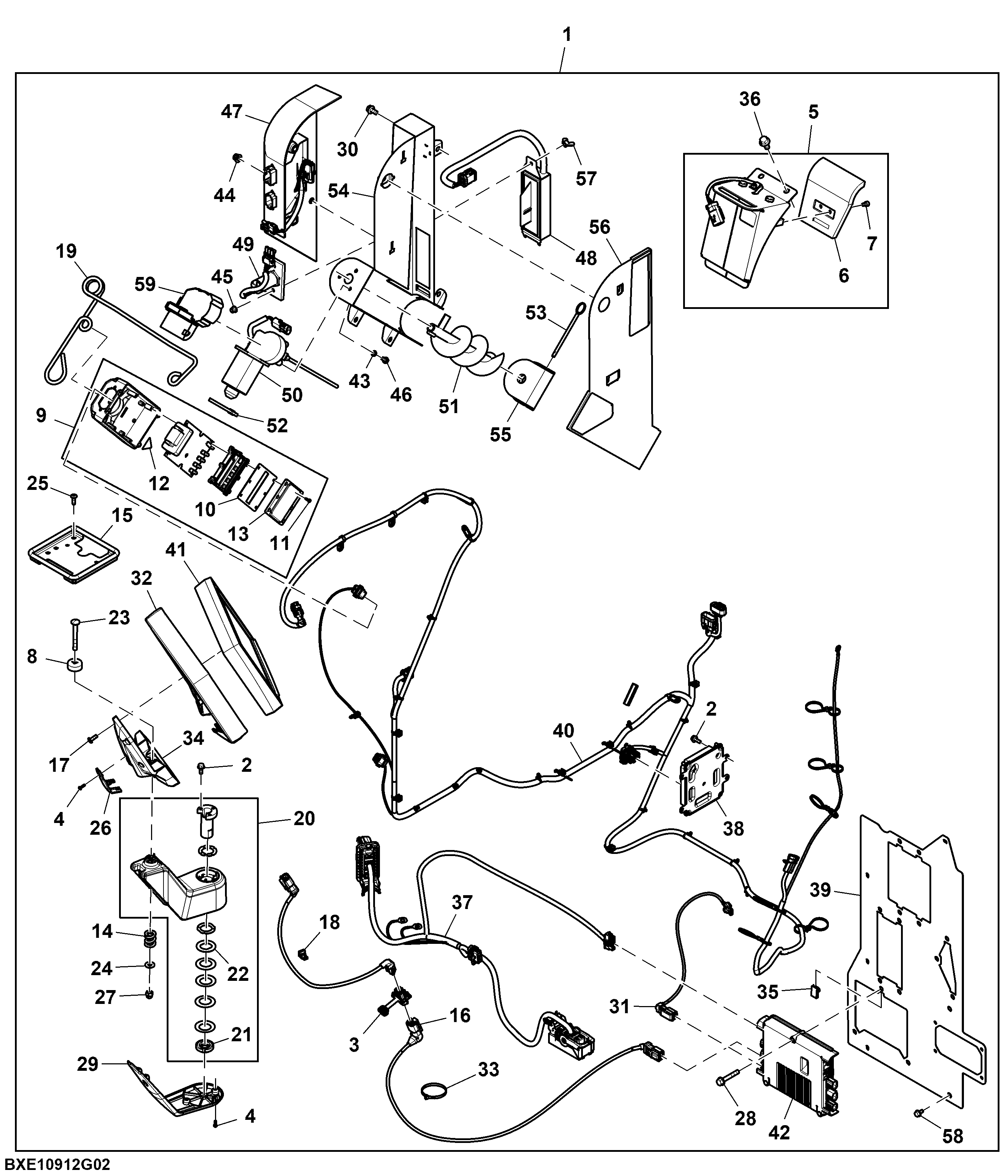

AutoTrac™, Mapping, 2WD, Attachment (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE10912	1	Field Install Template Kit	ORDER BXE11212
2	19M7775	7	Screw	M6 X 16
3	R537805	1	Bezel	-
4	R542220	5	Screw	-
5	AXE54364	1	Sensor	Mass Flow Assembly W/ Magma Impact Plate
6	AXE54365	1	Sensor	Magma Impact Plate
7	19M9560	2	Screw	M6 X 10
8	R279337	1	Bushing	-
9	AXE69423	2	Module	Slave Material Sensor, SUB FOR AH235611
10	H170344	2	Gasket	-
11	M71770	12	Screw	-
12	AXE15797	2	Label	Laser
13	HXE113480	2	Lens	USE WITH AH235611
13	HXE113479	2	Lens	USE WITH AXE69423
14	HXE95652	1	Compression Spring	-
15	PF81190	1	Bracket Kit	-
16	AL215491	1	Wiring Harness	-
17	21M7292	4	Screw	M6 X 16
18	57M9229	1	Clip	-
19	HXE115857	1	Spring	-
20	AXE53889	1	Arm	-
21	CE30210	1	Nut	-
22	M170289	1	Washer	-
23	03M7258	1	Bolt	M8 X 70
24	R210137	1	Washer	-
25	19M8649	4	Screw	M6 X 20
26	R344362	1	Cover	-
27	14M7226	1	Nut	M8
28	19M7800	3	Screw	M8 X 50
29	HXE95641	1	Cover	-
30	19M7865	5	Screw	M8 X 16
31	AL211967	1	Wiring Harness	-
32	HXE97799	1	Cover	-
33	R44302	4	Tie Band	-
34	R558327	1	Support	-
35	H156360	3	Nut	-
36	19M7784	2	Screw	M10 X 20
37	AXE61201	1	Wiring Harness	-
38	AXE57690	1	Blank Controller	-
39	HXE131679	1	Plate	SUB FOR HXE78343
40	AXE66390	1	Wiring Harness	-
41	PFA10760	1	Monitor	-
42	PFA11004	1	Electronic Control Unit	-
43	12H297	3	Lock Washer	1/4"
44	14M7396	2	Lock Nut	M8
45	14M7397	2	Lock Nut	M6
46	19H1227	3	Cap Screw	1/4" X 1/2"
47	AXE13655	1	Sensor	HMON Interface Controller
48	AXE13656	1	Sensor	Grain Moisture
49	AXE13657	1	Sensor	Proximity
50	AXE13658	1	Sensor	Auger Motor
51	AXE13660	1	Auger	-
52	H77698	1	Tie Band	-
53	AXE13661	2	Detent	-
54	AXE13659	1	Bracket	-
55	HXE16934	1	Bracket	-
56	HXE16935	1	Gasket	-
57	14M7019	1	Wing Nut	M6
58	19M7774	6	Screw	M6 X 12
59	AXE72190	1	Cover	-
