Rear Wheel 24 X 15L W/ Sensor, 4WD, Conversion Kit, Attachment (2 of 2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE11071	1	Drive Kit	-
2	H75423	2	Pin Fastener	-
3	HXE129432	1	Label	Wheel Bolt Torque
4	CQ65691	8	Cap Screw	-
5	H232158	1	Label	-
6	H229171	1	Weatherstrip	-
7	57M11336	1	Elec. Connector Accessory	-
8	19M8639	2	Cap Screw	M20 X 70
9	AXE62842	1	Hydraulic Hose	LGTH = 1435 mm
10	19M7946	2	Cap Screw	M20 X 40
11	14M7298	6	Flange Nut	M8
12	AXE45893	1	Wheel	-
13	19M7835	1	Screw	M10 X 35
14	38H1329	1	Adapter Fitting	-
15	24M7091	1	Washer	26 X 44 X 4 mm
16	H224073	2	Tie Band	-
17	51M7041	1	O-Ring	11.300 X 2.200 mm
18	T77613	1	O-Ring	-
19	T78707	1	Nut	-
20	CQ42468	8	Spacer	-
21	H174025	4	Spacer	-
22	R213663	1	Clamp	-
23	AN209168	1	Swivel	-
24	H208990	1	Angle	-
25	HXE100537	1	Arm	-
26	AXE65978	1	Hydraulic Motor	1259 CC, LH
27	AXE47610	1	Hydraulic Hose	LGTH = 910 mm, 4WD Return, LH
28	19M8002	4	Cap Screw	M20 X 55
29	H75541	3	Clamp	-
30	38H1003	1	Elbow Fitting	-
31	AXE81657	1	Hydraulic Hose	LGTH = 1662 mm, 4WD Pilot
32	R28782	2	O-Ring	-
33	T77814	5	O-Ring	-
34	38H5075	1	Tee Fitting	-
35	AXE81656	1	Hydraulic Hose	LGTH = 1738 mm, 4WD Return
36	38H1094	1	Elbow Fitting	-
37	38H1159	1	Adapter Fitting	-
38	19M7775	4	Screw	M6 X 16
39	AXE45948	1	Hydraulic Hose	LGTH = 2988 mm, 4WD Pilot
40	AXE57690	1	Blank Controller	-
41	AH76882	2	Clip	-
42	AXE66391	1	Wiring Harness	-
43	HXE83342	1	Isolator	-
44	R44302	1	Tie Band	-
45	38H5011	1	Adapter Fitting	-
46	U12547	2	O-Ring	-
47	T77932	1	O-Ring	-
48	T77858	1	O-Ring	-
49	38H1163	1	Adapter Fitting	-
50	19M7864	5	Screw	M8 X 12
51	19M7866	6	Screw	M8 X 20
52	AH77869	2	Clip	-
53	14M7296	1	Flange Nut	M10

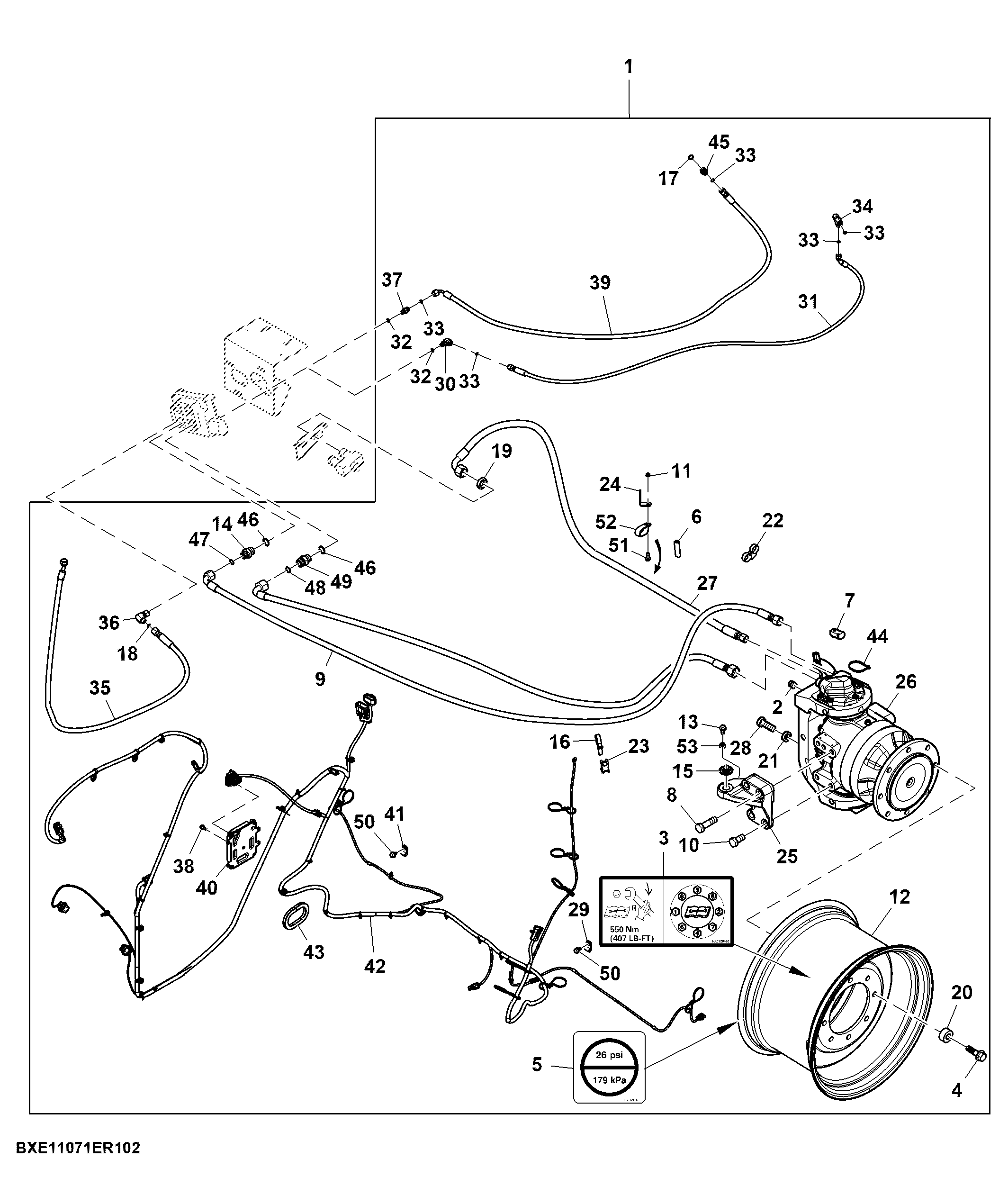

Rear Wheel 24 X 15L W/ Sensor, 4WD, Conversion Kit, Attachment (2 of 2)
