Открытый узел

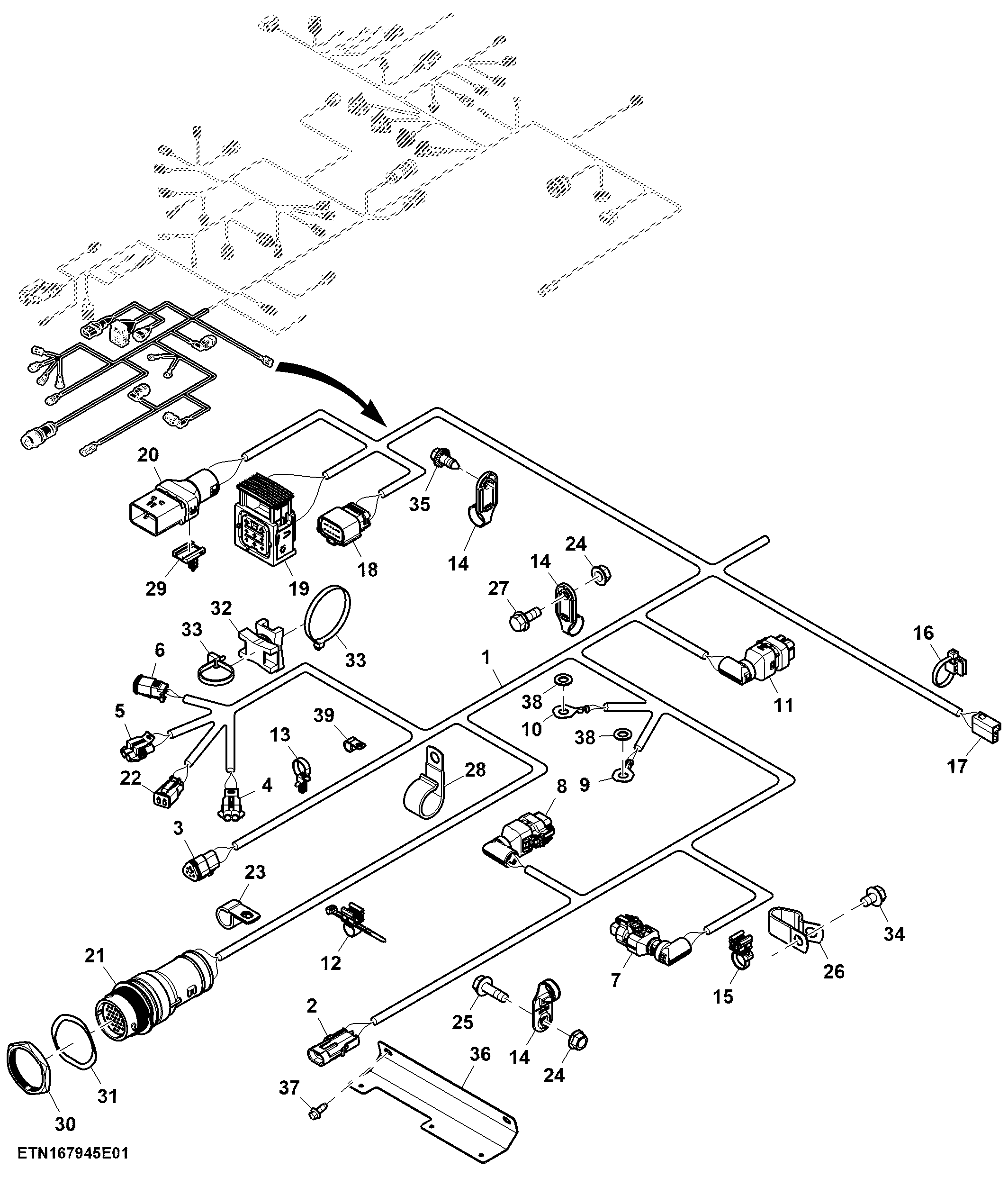

Main Wiring Harness (1 of 5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE78617	1	Wiring Harness	SUB FOR AXE76930, AXE67641, AXE66220 OR AXE62724
2	R78053	1	Electrical Connector Assy	B12 Ground Speed Sensor
2	57M9555	1	Clip	-
2	57M7251	2	Elec. Connector Terminal	Cavity A, B
2	57M9549	2	Elec. Connector Seal	Cavity A, B
3	57M8018	1	Electrical Connector Assy	Front Marker and Hazard Light, LH
3	57M7542	3	Elec. Connector Terminal	Cavity A, B, C
3	57M8019	1	Elec. Connector Terminal	-
4	57M7254	1	Elec. Connector Housing	Y114 Reel Speed Adjust Solenoid
4	57M10770	2	Elec. Connector Terminal	Cavity A, B
4	57M9215	2	Elec. Connector Seal	Cavity A, B
4	57M9556	1	Elec. Connector Accessory	-
5	57M7254	1	Elec. Connector Housing	Y5 Reel Raise Solenoid
5	57M10770	2	Elec. Connector Terminal	Cavity A, B
5	57M9215	2	Elec. Connector Seal	Cavity A, B
5	57M9556	1	Elec. Connector Accessory	-
6	57M8021	1	Electrical Connector Assy	Y94 Jammer/ Unloader Drive Valve
6	57M8165	2	Elec. Connector Terminal	Cavity A, B
6	57M8022	1	Elec.Connect Locking Device	-
7	57M9850	1	Elec. Connector Accessory	-
7	57M9780	1	Elec. Connector Housing	B16 Cleaning Fan Speed Sensor
7	57M9809	3	Elec. Connector Terminal	Cavity 1, 2, 3
8	57M9786	1	Elec. Connector Housing	B9 Feeder House Raise / Lower Position Sensor
8	57M9809	3	Elec. Connector Terminal	Cavity 4, 5, 6
8	57M10336	3	Elec. Connector Cavity Plug	Cavity 1, 2, 3
8	57M10229	1	Elec. Connector Accessory	-
9	57M8867	1	Elec. Connector Terminal	Front Chassis Ground 1, LH
10	57M8867	1	Elec. Connector Terminal	Front Electronics Ground, LH
11	57M9809	3	Elec. Connector Terminal	Cavity 1, 2, 3
11	57M10229	1	Elec. Connector Accessory	-
11	57M10336	3	Elec. Connector Cavity Plug	Cavity 1, 2, 3
11	57M9786	1	Elec. Connector Housing	B294 Concave Position Sensor
12	AH225363	3	Clip	-
13	57M10233	18	Tie Band	-
14	57M10528	7	Elec. Connector Accessory	-
15	AH225364	5	Clip	-
16	57M11237	1	Clip Kit	-
17	57M7144	1	Elec. Connector Housing	M5 Windshield Washer Pump Motor
18	57M11576	1	Elec. Connector Housing	A146 Control Unit (J2)
18	57M14023	1	Elec. Connector Accessory	-
19	57M10335	1	Elec. Connector Housing	A146 Control Unit (J1)
19	57M9563	2	Elec. Connector Cable Seal	Cavity 5, 8
19	57M9904	2	Elec. Connector Terminal	Cavity 1, 2
20	57M9804	1	Elec. Connector Housing	Main Harness/ Autotrac
20	57M10603	1	Elec. Connector Terminal	Cavity 1
20	57M9813	6	Elec. Connector Terminal	Cavity 2, 3, 5, 6, 9, 10
20	57M9812	2	Elec. Connector Terminal	Cavity 4, 8
20	57M10336	3	Elec. Connector Cavity Plug	Cavity 7, 11, 12
20	57M9845	1	Elec. Connector Accessory	-
20	57M9939	1	Elec. Connector Accessory	-
21	57M10940	1	Elec. Connector Housing	Main Harness / Header Harness
21	57M8165	16	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 16, 20, 21, 23, 24, 28, 31
21	57M9526	3	Elec. Connector Terminal	Cavity 12, 14, 15
21	57M7546	2	Elec. Connector Terminal	Cavity 13, 19
21	R78069	10	Elec. Connector Cavity Plug	Cavity 8, 11, 17, 18, 22, 25, 26, 27, 29, 30
21	57M10485	1	Elec. Connector Accessory	-
22	57M7620	1	Electrical Connector Assy	-
22	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
22	57M10523	1	Elec. Connector Housing	Y4 Reel Lower Solenoid
23	AH77724	2	Clip	-
24	14M7298	3	Flange Nut	M8
25	19M7867	2	Screw	M8 X 25
26	R35668	2	Clamp	-
27	19M7866	1	Screw	M8 X 20
28	AH90990	6	Clip	-
29	57M9939	1	Elec. Connector Accessory	-
30	57M8035	1	Nut	-
31	57M9061	1	Elec.Connect Locking Device	-
32	AN209168	2	Swivel	-
33	R44302	2	Tie Band	-
34	19M7864	4	Screw	M8 X 12
35	GX22456	6	Screw	-
36	HXE120660	1	Sheet	-
37	37M7058	2	Screw	M8 X 20
38	24M7036	2	Washer	9 X 16 X 1.600 mm
39	AH89557	1	Clip	-

Main Wiring Harness (1 of 5)
