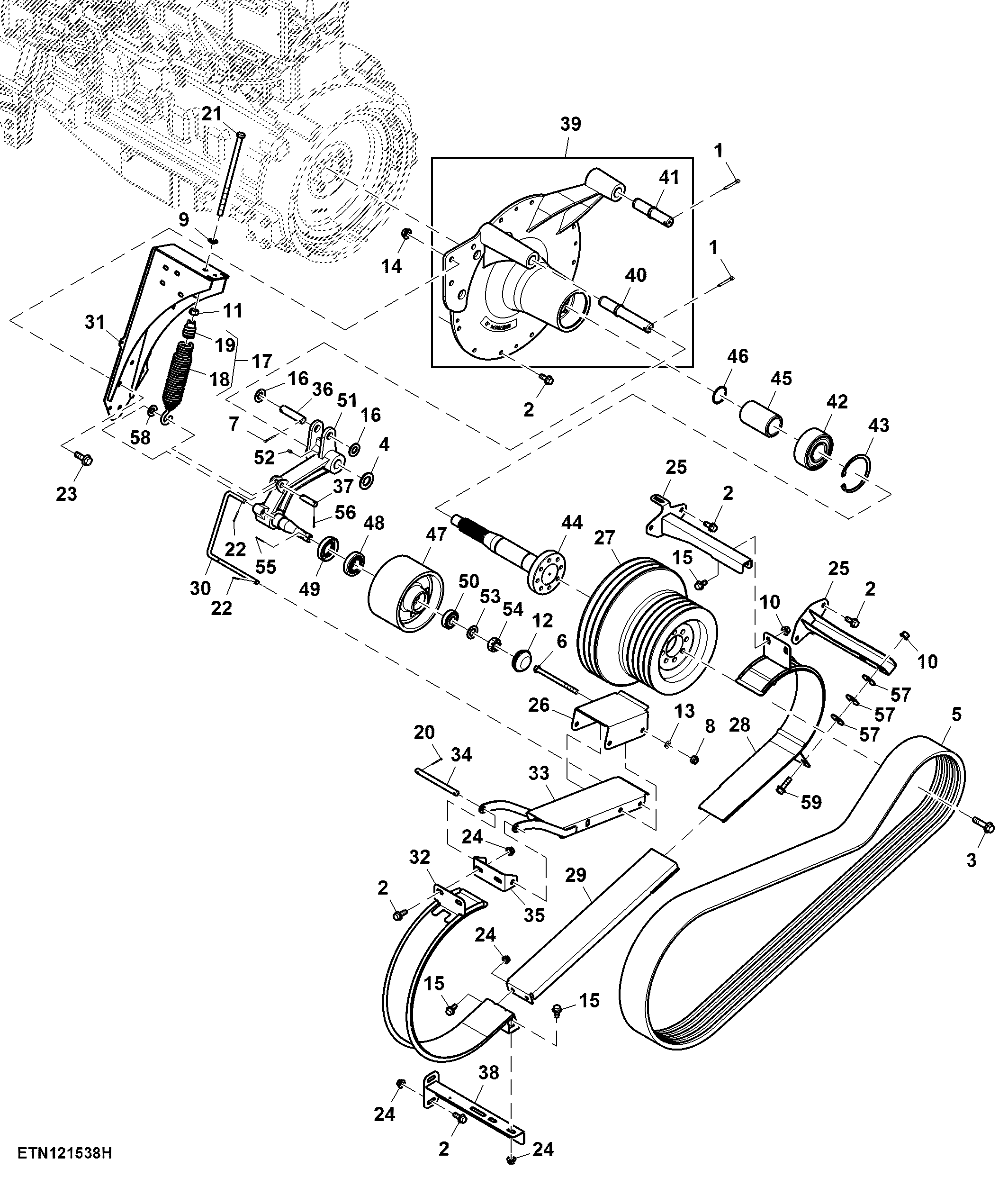

Gearbox Clutch and Sheave ( - 120110)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7037	2	COTTER PIN	6.300 X 36 mm
2	19M7785	16	Screw	M10 X 25, USE WITH AXE68328
2	19M7785	4	Screw	M10 X 25, USE WITH AXE46236
3	19M7814	8	Screw	M12 X 50
4	24M7091	1	Washer	26 X 44 X 4 mm
5	HXE80345	1	V-Belt	LGTH = 2755 mm, WIDTH = 93 mm
6	19M8080	2	Cap Screw	M10 X 140
7	11M7021	2	Cotter Pin	4 X 25 mm
8	14M7167	2	Lock Nut	M10
9	47M7003	1	Washer	13 X 24 X 4.600 mm
10	14M7518	4	Flange Nut	M10
11	14M7031	1	Nut	M12
12	CQ05482	1	Cap	-
13	24M7040	2	Washer	11 X 20 X 2 mm
14	14M7299	3	Flange Nut	M12
15	19M7784	6	Screw	M10 X 20
16	24M7318	2	Washer	19 X 34 X 3 mm
17	DQ39917	1	Extension Spring	-
18	DQ37791	1	Extension Spring	-
19	CQ04267	1	Plug	-
20	11M7015	2	Cotter Pin	3.200 X 25 mm
21	19M9424	1	Cap Screw	M12 X 220
22	11M7059	4	Cotter Pin	3.200 X 20 mm
23	19M7790	3	Screw	M12 X 35
24	14M7296	8	Flange Nut	M10
25	AXE46236	2	Support	-
26	HXE80832	1	Guide	-
27	HXE76675	1	Pulley	-
28	AXE46230	1	Channel	-
29	AXE46232	1	Channel	-
30	HXE141329	1	Support	SUB FOR HXE103655
31	AXE68458	1	Bracket	-
32	AXE46233	1	Channel	-
33	AXE58347	1	Channel	-
34	CQ10784	1	Pin Fastener	-
35	CQ10785	1	Support	-
36	CQ36751	1	Pin	-
37	CQ38022	1	Pin	-
38	AXE55672	1	Support	-
39	AXE68328	1	Housing	-
40	CQ08915	1	Pin	-
41	HXE80789	1	Pin	-
42	DQ74694	1	Ball Bearing	-
43	40M1874	1	Snap Ring	-
44	CQ72844	1	Spindle	-
45	CQ72753	1	Bushing	-
46	40M7087	1	Snap Ring	-
47	CQ48321	1	Pulley	-
48	13P1017	1	Bearing	-
49	CQ03192	1	Seal	-
50	DQ00814	1	Bearing	-
51	DQ36708	1	Pivot	-
52	58M5573	1	Lubrication Fitting	-
53	24M7099	1	Washer	21 X 34 X 3 mm
54	CQ02097	1	Nut	-
55	11M7017	1	Cotter Pin	3.200 X 32 mm
56	11M7082	2	Cotter Pin	2.500 X 25 mm
57	24M7180	6	Washer	13 X 37 X 3 mm
58	L110471	1	Washer	-
59	19M7835	2	Screw	M10 X 35
