Открытый узел

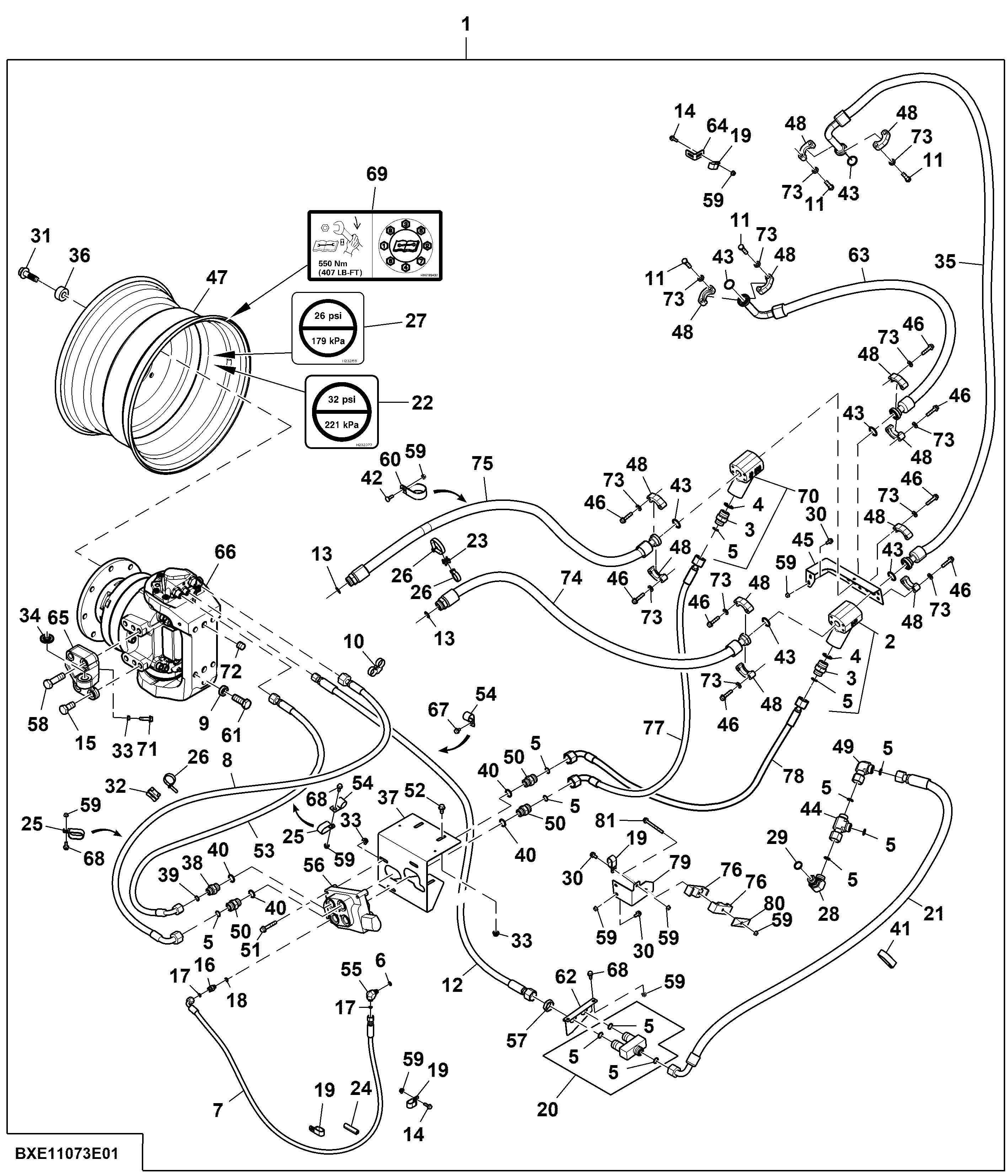

Attachment, 4WD, Rear Wheel 26 X 16A W/ Sensor, Conversion Kit (1 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE11073	1	Drive Kit	-
2	AH133942	1	Manifold	-
3	38H1194	2	Adapter Fitting	-
4	R29936	2	O-Ring	-
5	T77858	12	O-Ring	-
6	51M7041	1	O-Ring	11.300 X 2.200 mm
7	AXE45949	1	Hydraulic Hose	LGTH = 3584 mm, 4WD Return
8	AXE62843	1	Hydraulic Hose	LGTH = 1448 mm
9	H174025	4	Spacer	-
10	R213663	1	Clamp	-
11	19M7496	8	Cap Screw	M12 X 45
12	AXE47611	1	Hydraulic Hose	LGTH = 1590 mm, 4WD Return, RH
13	T76938	2	O-Ring	-
14	19M7867	2	Screw	M8 X 25
15	19M7946	2	Cap Screw	M20 X 40
16	38H1160	1	Adapter Fitting	-
17	T77613	2	O-Ring	-
18	R26448	1	O-Ring	-
19	R49921	6	Clamp	-
20	AH128692	1	Manifold	-
21	AXE47609	1	Hydraulic Hose	LGTH = 2301 mm, 4WD Return Drain Combined
22	H232077	1	Label	-
23	RE345761	2	Swivel	-
24	H229171	2	Weatherstrip	-
25	AH77869	1	Clip	-
26	H224073	6	Tie Band	-
27	H232158	1	Label	-
28	38H5019	1	Elbow Fitting	-
29	51M7047	1	O-Ring	23.600 X 2.900 mm
30	19M7865	5	Screw	M8 X 16
31	CQ65691	8	Cap Screw	-
32	AN209168	1	Swivel	-
33	14M7296	7	Flange Nut	M10
34	24M7091	1	Washer	26 X 44 X 4 mm
35	AXE44311	1	Hydraulic Hose	LGTH = 2393 mm, 16 Pump Hose
36	CQ42468	8	Spacer	-
37	HXE80474	1	Support	-
38	38H1329	1	Adapter Fitting	-
39	T77932	1	O-Ring	-
40	U12547	4	O-Ring	-
41	H168854	2	Clamp	-
42	03M7185	1	Bolt	M8 X 25
43	T78313	9	O-Ring	-
44	38H1033	1	Tee Fitting	-
45	HXE80477	1	Support	-
46	19M8320	16	Screw	M10 X 45
47	AXE45891	1	Wheel	-
48	T107068	12	Flange Fitting	-
49	38H1097	1	Elbow Fitting	-
50	38H1163	3	Adapter Fitting	-
51	19M7807	3	Screw	M10 X 60
52	19M7784	3	Screw	M10 X 20
53	AXE62842	1	Hydraulic Hose	LGTH = 1435 mm
54	R72659	2	Clamp	-
55	38H5016	1	Elbow Fitting	-
56	AH218798	1	Control Valve	Components on Separate Page
57	T78707	1	Nut	-
58	19M8639	2	Cap Screw	M20 X 70
59	14M7298	15	Flange Nut	M8
60	N198631	1	Clamp	-
61	19M8002	4	Cap Screw	M20 X 55
62	HXE76690	1	Bracket	-
63	AXE44312	1	Hydraulic Hose	LGTH = 1756 mm
64	H131526	1	Angle	-
65	HXE100538	1	Arm	-
66	AXE47194	1	Hydraulic Motor	Components on Separate Page
67	19M7864	1	Screw	M8 X 12
68	19M7866	6	Screw	M8 X 20
69	HXE129432	1	Label	Wheel Bolt Torque
70	AH133941	1	Manifold	-
71	19M7835	1	Screw	M10 X 35
72	H75423	2	Pin Fastener	-
73	24M7047	24	Washer	13 X 24 X 2.500 mm
74	AXE58311	1	Hydraulic Hose	LGTH = 2758 mm, 4WD Hydro
75	AXE58312	1	Hydraulic Hose	LGTH = 2868 mm, 4WD Hydro
76	H114898	2	Clamp	-
77	AXE73966	1	Hydraulic Hose	LGTH = 1200 mm
78	AXE73965	1	Hydraulic Hose	LGTH = 1280 mm
79	HXE138409	1	Support	-
80	H114901	1	Plate	-
81	19M8039	1	Screw	M8 X 80

Attachment, 4WD, Rear Wheel 26 X 16A W/ Sensor, Conversion Kit (1 of 2)

Нет текстового описания
