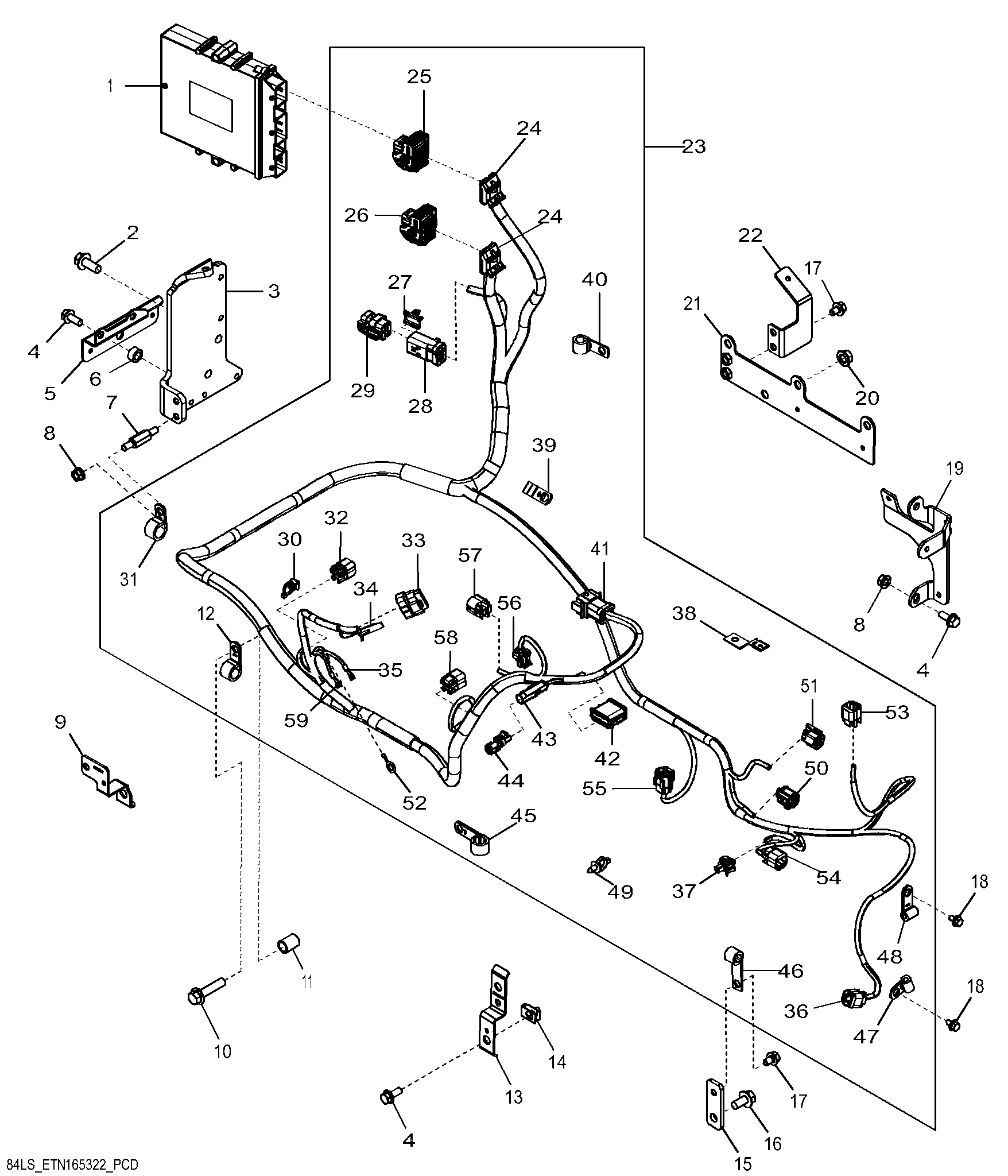

84LS Engine Wiring Harness ( - 010688)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE531808	1	Electronic Control Unit	Level 14 VI
2	19M7785	2	Screw	M10 X 25
3	R522771	1	Bracket	-
4	19M7866	5	Screw	M8 X 20
5	R523187	1	Bracket	-
6	T20280	2	Washer	-
7	R529091	1	Stud	-
8	14M7298	3	Flange Nut	M8
9	R521207	1	Bracket	-
10	19M7805	2	Screw	M10 X 45
11	28H3436	2	Spacer	0.493" X 0.675" X 7/8"
12	57M12137	2	Clamp	-
13	R522942	1	Bracket	-
14	M84971	1	Nut	-
15	DZ100833	1	Bracket	-
16	19M7784	1	Screw	M10 X 20
17	RE524730	3	Cap Screw	-
18	19M7861	2	Screw	M6 X 10
19	DZ10425	1	Bracket	-
20	14M7296	3	Flange Nut	M10
21	RE529804	1	Bracket	-
22	R532468	1	Bracket	-
23	DZ10565	1	Wiring Harness	-
24	57M10604	2	Elec. Connector Housing	-
25	57M10609	1	Elec. Connector Housing	A5511, Electronic Control Unit (ECU) Connector
25	57M10604	1	Elec. Connector Housing	-
25	57M10330	11	Elec. Connector Terminal	-
25	57M10331	8	Elec. Connector Terminal	-
25	57M10333	13	Elec. Connector Cavity Plug	-
26	57M10606	1	Elec. Connector Housing	A5513, Electronic Control Unit (ECU) Connector
26	57M10334	2	Elec. Connector Cavity Plug	-
26	57M10333	6	Elec. Connector Cavity Plug	-
26	57M10330	18	Elec. Connector Terminal	-
26	57M10604	1	Elec. Connector Housing	-
26	57M10331	6	Elec. Connector Terminal	-
27	57M9940	1	Elec. Connector Accessory	-
28	57M9796	1	Elec. Connector Housing	X5046, Auxilary Interconnector
28	57M9814	2	Elec. Connector Cavity Plug	-
29	57M9792	1	Elec. Connector Housing	X5046, Auxiliary Interconnector Dust Cap
30	RE564777	6	Tie Band	-
31	57M12123	1	Clamp	-
32	57M8603	2	Elec. Connector Seal	-
32	57M8613	2	Elec. Connector Terminal	-
32	57M8633	1	Elec. Connector Accessory	-
32	57M8612	1	Elec. Connector Housing	B5207, Exhaust Gas Recirculation Exhaust
33	57M13011	1	Elec. Connector Housing	Y5400, Exhaust Gas Recirculation (EGR) Valve
33	57M13692	5	Elec. Connector Terminal	-
33	57M8555	1	Elec. Connector Seal	-
34	57M9597	1	Elec.Connect Locking Device	-
35	57M7054	1	Elec. Connector Terminal	X5083, Glow Plug Relay Driver (Coil)
36	57M8601	1	Elec. Connector Housing	B5301, Engine Crank Sensor
36	57M8633	1	Elec. Connector Accessory	-
36	57M8602	2	Elec. Connector Terminal	-
36	57M8603	2	Elec. Connector Seal	-
37	57M8603	3	Elec. Connector Seal	-
37	57M8624	1	Elec.Connect Locking Device	-
37	57M8625	1	Elec. Connector Housing	B5101, Oil Pressure Sensor
37	57M8602	3	Elec. Connector Terminal	-
38	R520930	1	Bracket	-
39	57M12124	1	Clamp	-
40	57M13293	1	Clamp	-
41	57M8747	1	Elec. Connector Housing	C23, Turbo Connection
41	57M7680	1	Elec. Connector Terminal	-
41	N282069	7	Elec. Connector Terminal	-
41	R78069	1	Elec. Connector Cavity Plug	-
42	57M8636	1	Elec. Connector Housing	Y5021, Fuel Injector Connector
42	57M8009	1	Elec.Connect Locking Device	-
42	57M7546	8	Elec. Connector Terminal	-
42	R78069	4	Elec. Connector Cavity Plug	-
43	R78052	1	Electrical Connector Assy	X5009, Alternator Excitation
43	57M9218	1	Elec. Connector Seal	-
44	RE12362	1	Electrical Connector Assy	X5009A, Alternator Excitation Dust Cap
45	57M12144	1	Clamp	-
46	57M13292	1	Clamp	-
47	57M12145	1	Clamp	-
48	57M12146	1	Clamp	-
49	RE258807	3	Tie Band	-
50	57M8400	1	Electrical Connector Assy	B5209, Fuel Temperature
50	57M8402	2	Elec. Connector Terminal	-
50	57M8568	2	Elec. Connector Seal	-
51	57M8403	1	Elec. Connector Housing	Y5022, Pump Control Valve
51	57M8404	2	Elec. Connector Terminal	-
51	57M8406	2	Elec. Connector Terminal	-
52	57M8594	1	Elec. Connector Terminal	X5082, Glow Plug Relay Diagnostic
53	57M8633	1	Elec. Connector Accessory	-
53	57M8602	2	Elec. Connector Terminal	-
53	57M8603	2	Elec. Connector Seal	-
53	57M8601	1	Elec. Connector Housing	B5208, Coolant Temperature
54	57M8601	1	Elec. Connector Housing	B5302, Engine Cam Sensor
54	57M8633	1	Elec. Connector Accessory	-
54	57M8602	2	Elec. Connector Terminal	-
54	57M8603	2	Elec. Connector Seal	-
55	57M13604	1	Elec. Connector Housing	B5113, Rail Pressure Sensor
55	57M8417	1	Elec.Connect Locking Device	-
55	57M8135	3	Elec. Connector Terminal	-
55	57M7833	2	Elec. Connector Seal	-
55	57M8568	1	Elec. Connector Seal	-
56	57M8625	1	Elec. Connector Housing	B5104, Manifold Air Pressure Sensor
56	57M8603	3	Elec. Connector Seal	-
56	57M8613	3	Elec. Connector Terminal	-
56	57M8624	1	Elec.Connect Locking Device	-
57	57M8601	1	Elec. Connector Housing	B5205, Exhaust Gas Recirculation Fresh Air
57	57M8633	1	Elec. Connector Accessory	-
57	57M8613	2	Elec. Connector Terminal	-
57	57M8603	2	Elec. Connector Seal	-
58	57M8601	1	Elec. Connector Housing	B5206, Exhaust Gas Recirculation Mixed Air
58	57M8633	1	Elec. Connector Accessory	-
58	57M8613	2	Elec. Connector Terminal	-
58	57M8603	2	Elec. Connector Seal	-
59	57M7054	1	Elec. Connector Terminal	X5084, Glow Plug Relay GND (Coil)

84LS Engine Wiring Harness ( - 010688)
