Unloading Auger Engage Clutch Hydraulic Hoses ( - 125138)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1160	1	Adapter Fitting	-
2	T77613	8	O-Ring	-
3	R26448	1	O-Ring	-
4	38H1309	1	Adapter Fitting	-
5	R28782	1	O-Ring	-
6	38H5012	2	Adapter Fitting	-
7	51M7043	2	O-Ring	15.300 X 2.200 mm
8	38H5016	2	Elbow Fitting	-
9	51M7041	3	O-Ring	11.300 X 2.200 mm
10	38H5002	1	Adapter Fitting	-
11	38H1096	1	Elbow Fitting	USE WITH AXE47432
11	38H5271	1	Adapter Fitting	USE WITH AXE81254
12	T77932	1	O-Ring	USE WITH AXE47432
12	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070"), USE WITH AXE81254
13	14M7298	23	Flange Nut	M8
14	19M7865	8	Screw	M8 X 16
15	19M7866	19	Screw	M8 X 20
16	AH77884	1	Clip	-
17	AH78237	11	Clamp	-
18	H131526	5	Angle	-
19	T43361	2	Clip	-
20	T78612	1	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
21	19M7798	1	Screw	M8 X 40
22	51M7049	1	O-Ring	38.600 X 2.900 mm
23	AXE44290	1	Hydraulic Hose	LGTH = 3862 mm, Auxiliary Pressure Hose
24	AH231816	1	Hydraulic Hose	LGTH = 1303 mm, Feederhouse Engage, SUB FOR AXE44325
25	AXE47427	1	Hydraulic Hose	LGTH = 1147 mm, Variable Rotor Speed Hose
26	AXE47429	1	Hydraulic Hose	LGTH = 3350 mm, Unloader Engage Hose
27	AXE65337	1	Hydraulic Hose	LGTH = 1471 mm, Swing End Cap Hose, SUB FOR AXE47430
28	AXE47431	1	Hydraulic Hose	LGTH = 2118 mm, Swing Rod End
29	AXE81254	1	Hydraulic Hose	LGTH = 5552 mm, Pressure to Reel / Steering, SUB FOR APPL AXE47432
30	AXE47959	1	Hydraulic Hose	LGTH = 573 mm, Belt Tensioner Cylinder Pressure Hose
31	AXE65941	1	Hydraulic Hose	LGTH = 852 mm, Hydraulic Reservoir Engagement Drain, SUB FOR AXE52335
32	T105774	1	Guide	-
33	T27550	1	Clip	-
34	H210566	3	Clamp	-
35	37M7084	1	Screw	M8 X 25
36	AXE62667	1	Hydraulic Hose	LGTH = 1002 mm
37	R89288	3	Clamp	-
38	H208990	1	Angle	-
39	N205415	2	Clamp	-
40	AXE62729	1	Hydraulic Hose	LGTH = 603 mm, Hydraulic Cylinder Separator Engage
41	DQ08534	1	Clamp	-
42	AXE58918	1	Hydraulic Hose	LGTH = 3684 mm, Pressure to Reel / Steering
43	N205452	3	Clamp	-
44	38H5183	1	Elbow Fitting	-
45	T77814	1	O-Ring	-
46	38H5189	1	Adapter Fitting	-
47	H229171	1	Weatherstrip	-
48	28417	1	Conduit	-
49	51M7042	1	O-Ring	13.300 X 2.200 mm
50	38H5037	1	Adapter Fitting	-
51	AH77724	1	Clip	-
52	24M7207	1	Washer	8.400 X 24 X 2 mm

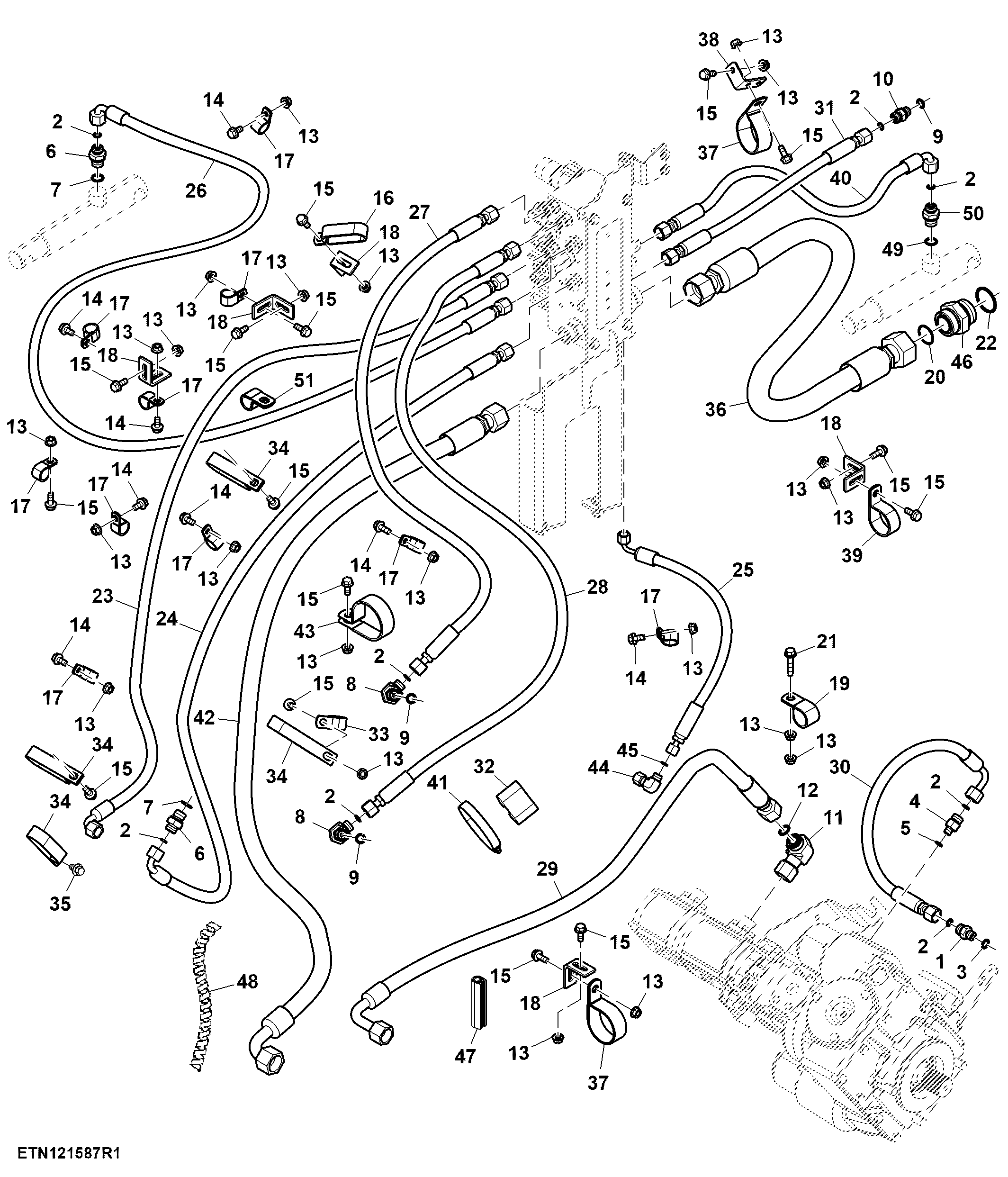

Unloading Auger Engage Clutch Hydraulic Hoses ( - 125138)
