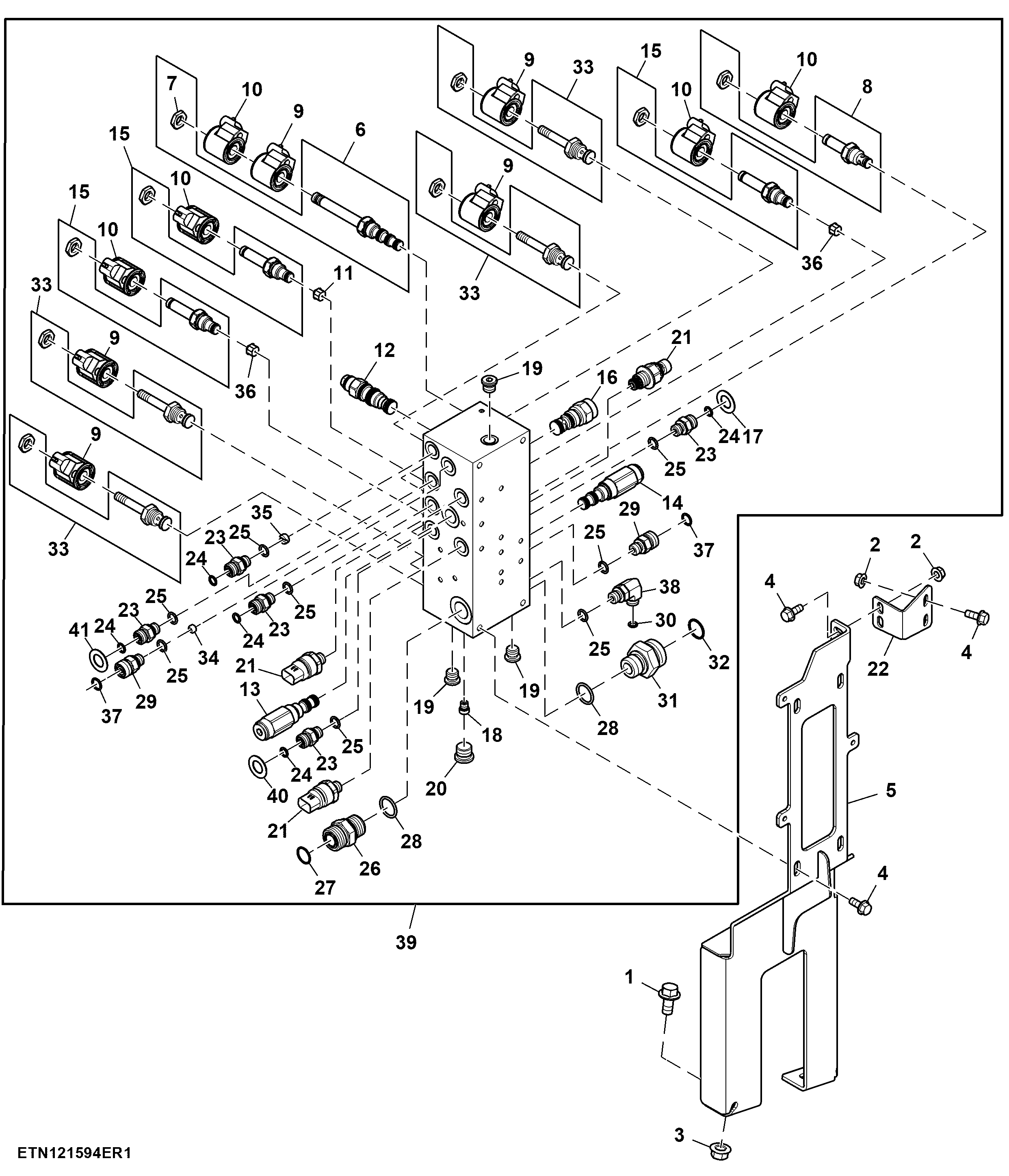

Control Valve and Support (120186 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7788	2	Screw	M12 X 25
2	14M7298	4	Flange Nut	M8
3	14M7299	2	Flange Nut	M12
4	19M7866	8	Screw	M8 X 20
5	AXE51629	1	Support	-
6	TCA18261	1	Solenoid Valve	-
6	F433465	1	Seal Kit	-
7	N223292	1	Nut	-
8	AN374638	1	Valve	-
8	AT224862	1	Seal Kit	-
9	AT333807	5	Solenoid Valve Coil	-
10	AT333812	5	Solenoid Valve Coil	-
11	AXE52336	1	Orifice	-
12	AN221620	1	Seal Kit	-
12	AXE52337	1	Hydraulic Pressure Valve	-
13	AXE78921	1	Hydraulic Pressure Valve	SUB FOR APPL AXE52338
13	AXE78922	1	Seal Kit	USE WITH AXE78921
13	AN279605	1	Seal Kit	USE WITH AXE52338
14	AXE78920	1	Hydraulic Pressure Valve	SUB FOR APPL AXE52339
14	AXE78922	1	Seal Kit	USE WITH AXE78920
14	AN279605	1	Seal Kit	USE WITH AXE52339
15	AXE52488	3	Hydraulic Pressure Valve	-
15	AT224862	3	Seal Kit	-
16	AXT10359	1	Flow Control Hyd. Valve	-
16	AH209117	1	Seal Kit	-
17	H170523	1	Washer	Green
18	HXE92894	1	Orifice	-
19	N304196	3	Plug	-
20	N305925	1	Plug	-
21	RE584417	3	Pressure Sensor	SUB FOR RE575964
22	HXE99215	1	Support	-
23	38H5002	5	Adapter Fitting	-
24	T77613	7	O-Ring	-
25	51M7041	8	O-Ring	11.300 X 2.200 mm
26	38H5005	1	Adapter Fitting	-
27	T77858	1	O-Ring	-
28	51M7047	2	O-Ring	23.600 X 2.900 mm
29	38H5009	2	Adapter Fitting	-
30	T77814	1	O-Ring	-
31	38H5014	1	Adapter Fitting	-
32	T76938	1	O-Ring	-
33	AH209120	4	Valve	-
33	AH209121	4	Seal Kit	-
34	AXE65370	1	Orifice	-
35	AXE65371	1	Orifice	-
36	AXE57425	2	Orifice	-
37	T77857	2	O-Ring	-
38	38H5025	1	Elbow Fitting	-
39	AXE68600	1	Valve Stack	-
40	H170528	1	Washer	White
41	H170522	1	Washer	Yellow
