№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE10913	1	Field Install Template Kit	ORDER BXE11213
2	R49921	5	Clamp	-
3	AH77924	1	Clip	-
4	RE46684	1	Fitting Plug	-
5	R107768	1	Drain Plug	-
6	51M7041	7	O-Ring	11.300 X 2.200 mm
7	HXE83342	3	Isolator	-
8	AXE22820	1	Electrical Connector Cap	-
9	AH78237	7	Clamp	-
10	AXE60919	1	Wiring Harness	-
11	H137328	2	Lock Nut	-
12	AL206976	1	Sensor	Steering Input Device
13	AH77884	13	Clip	-
14	37M7015	2	Screw	M8 X 20
15	38H5016	1	Elbow Fitting	-
16	T77613	6	O-Ring	-
17	19M7139	2	Cap Screw	M8 X 20
18	38H5076	3	Adapter Fitting	-
19	51M7045	6	O-Ring	19.300 X 2.200 mm
20	T77857	6	O-Ring	-
21	38H5009	1	Adapter Fitting	-
22	AXE47984	1	Hydraulic Hose	LGTH = 680 mm, AutoTrac™
23	19M7866	19	Screw	M8 X 20
24	38H5008	1	Adapter Fitting	-
25	51M7040	1	O-Ring	9.300 X 2.200 mm
26	H208990	3	Angle	-
27	38H5002	3	Adapter Fitting	-
28	AXE45944	1	Hydraulic Hose	LGTH = 1288 mm, Tank to Steering Control Unit
29	14M7298	21	Flange Nut	M8
30	19M7864	8	Screw	M8 X 12
31	19M7513	1	Cap Screw	M8 X 30
32	38H5010	2	Adapter Fitting	-
33	51M7043	4	O-Ring	15.300 X 2.200 mm
34	T77932	6	O-Ring	-
35	38H5029	1	Tee Fitting	-
36	AXE45939	1	Hydraulic Hose	LGTH = 6115 mm, Steering Cylinder, Left
37	38H1032	1	Tee Fitting	-
38	H75541	6	Clamp	-
39	AXE47987	1	Hydraulic Hose	LGTH = 902 mm, AutoTrac™ Load Sense
40	AXE47435	1	Hydraulic Hose	LGTH = 6062 mm, Steering Cylinder, Right
41	AXE45943	1	Hydraulic Hose	LGTH = 1017 mm, Steering Control Unit, Steering Right
42	AXE77051	1	Hydraulic Hose	LGTH = 6765 mm, AutoTrac™ Case Line, SUB FOR AXE47983
43	AXE48240	1	Hydraulic Hose	LGTH = 675 mm, AutoTrac™ Pressure
44	GX22456	1	Screw	-
45	38H5004	3	Adapter Fitting	-
46	AXE47986	1	Hydraulic Hose	LGTH = 825 mm, AutoTrac™ Load Sense
47	H229171	5	Weatherstrip	-
48	AXE11783	1	Elec-Hyd Proportional Valve	-
49	57M10233	1	Tie Band	-
50	AXE45942	1	Hydraulic Hose	LGTH = 1000 mm, Steering Control Unit, Steering Right
51	19M8319	2	Screw	M8 X 50
52	AXE47433	1	Hydraulic Hose	LGTH = 1370 mm, Pressure to Steering Control Unit
53	L204098	1	Grommet	-
54	19M7810	3	Screw	M10 X 80
55	H131526	4	Angle	-
56	CQ40310	1	Spacer	-
57	AH77869	6	Clip	-
58	57M11336	1	Elec. Connector Accessory	-
59	38H5003	1	Adapter Fitting	-
60	14M7296	3	Flange Nut	M10
61	38H5503	1	Adapter Fitting	-
62	HXE18798	1	Snap Ring	-

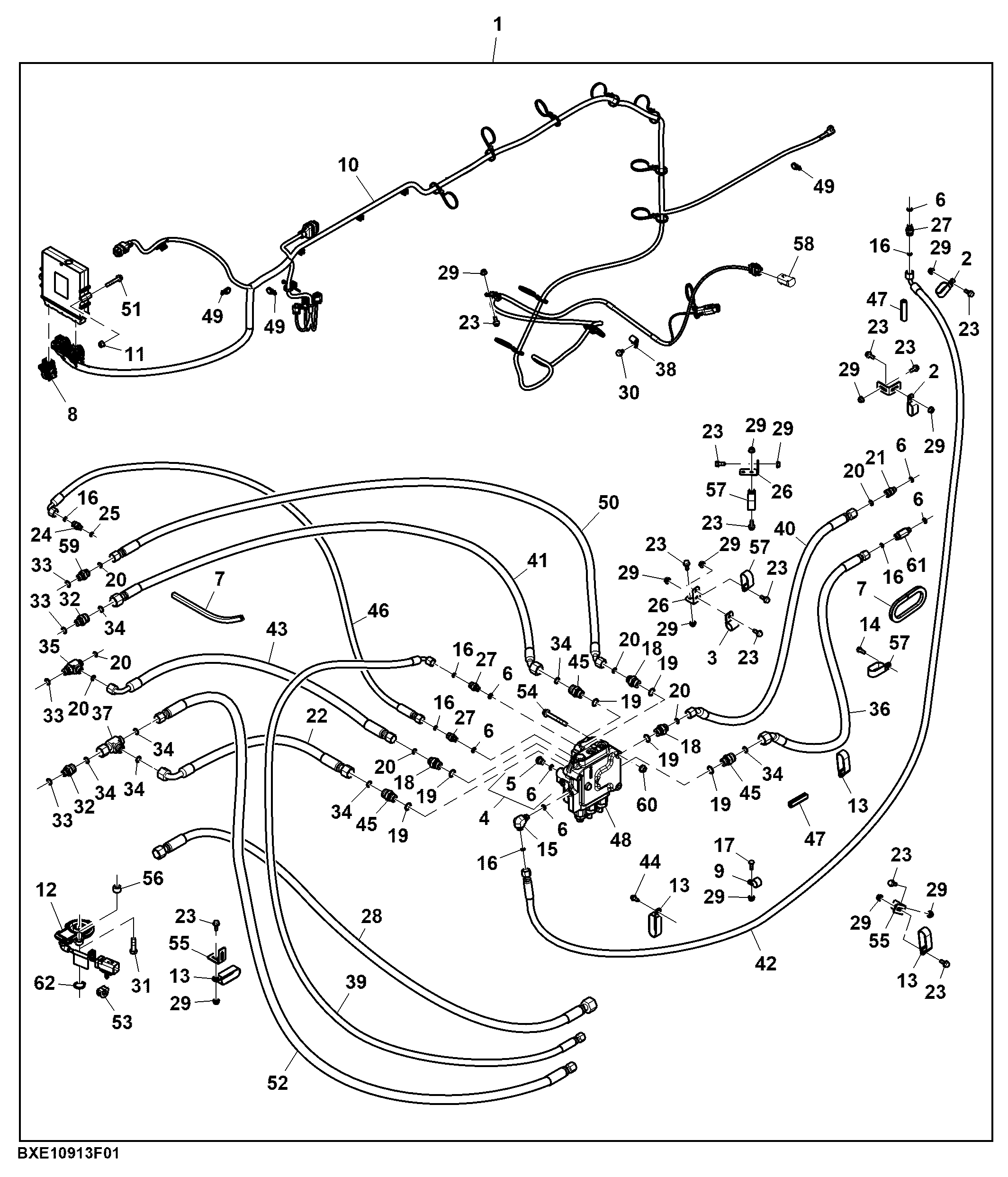

AutoTrac™, Mapping, 4WD, Attachment (1/2)

Нет текстового описания
