Открытый узел

20 Engine 6068HE050-RE531541

20 Engine 6068HE050-RE531541

20 Engine 6068HE050-RE531541

20 Engine 6068HE050-RE531541

20 Engine 6068HE050-RE531541

20 Engine 6068HE050-RE531541

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

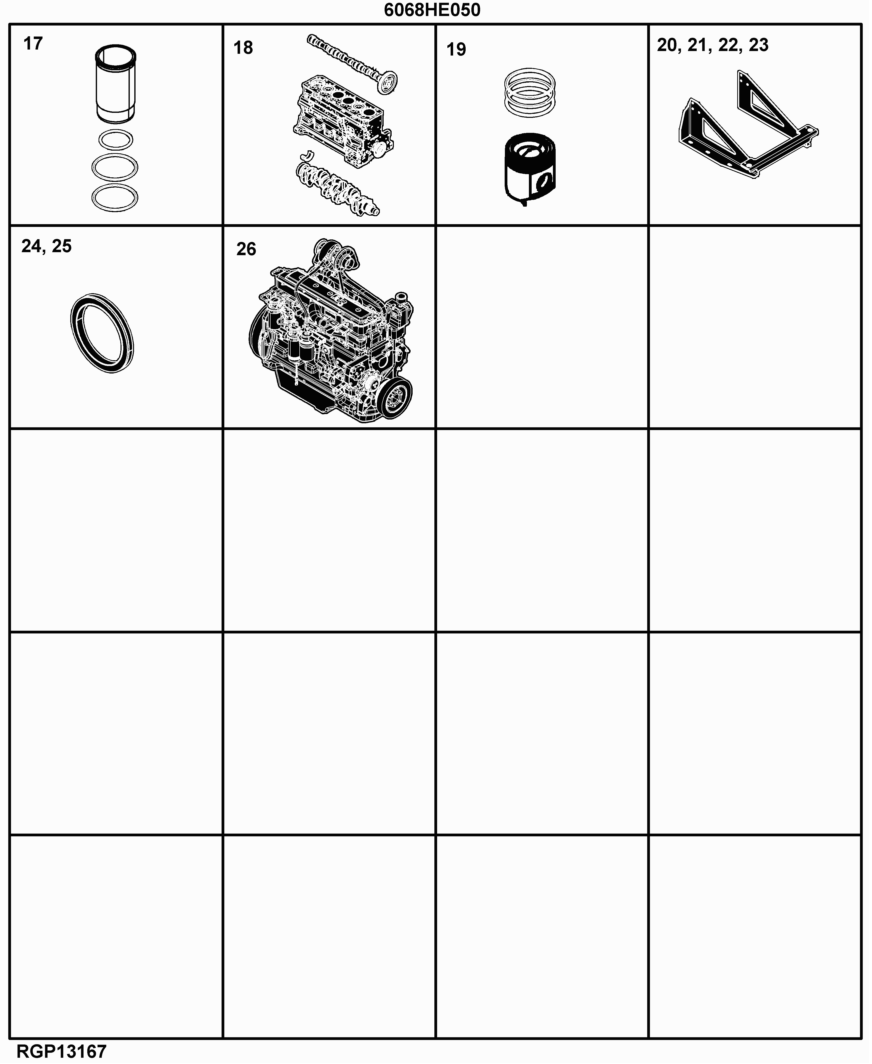

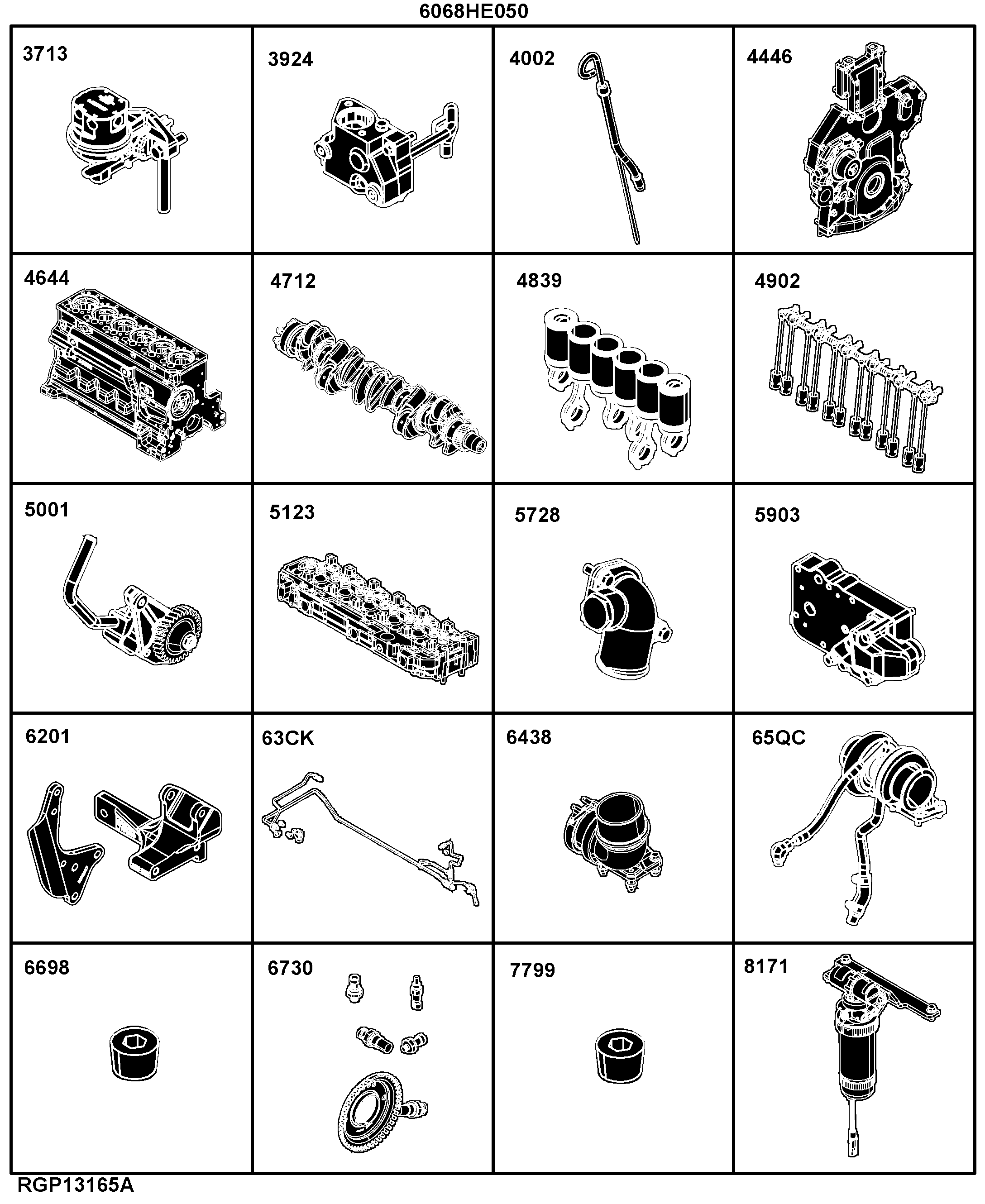

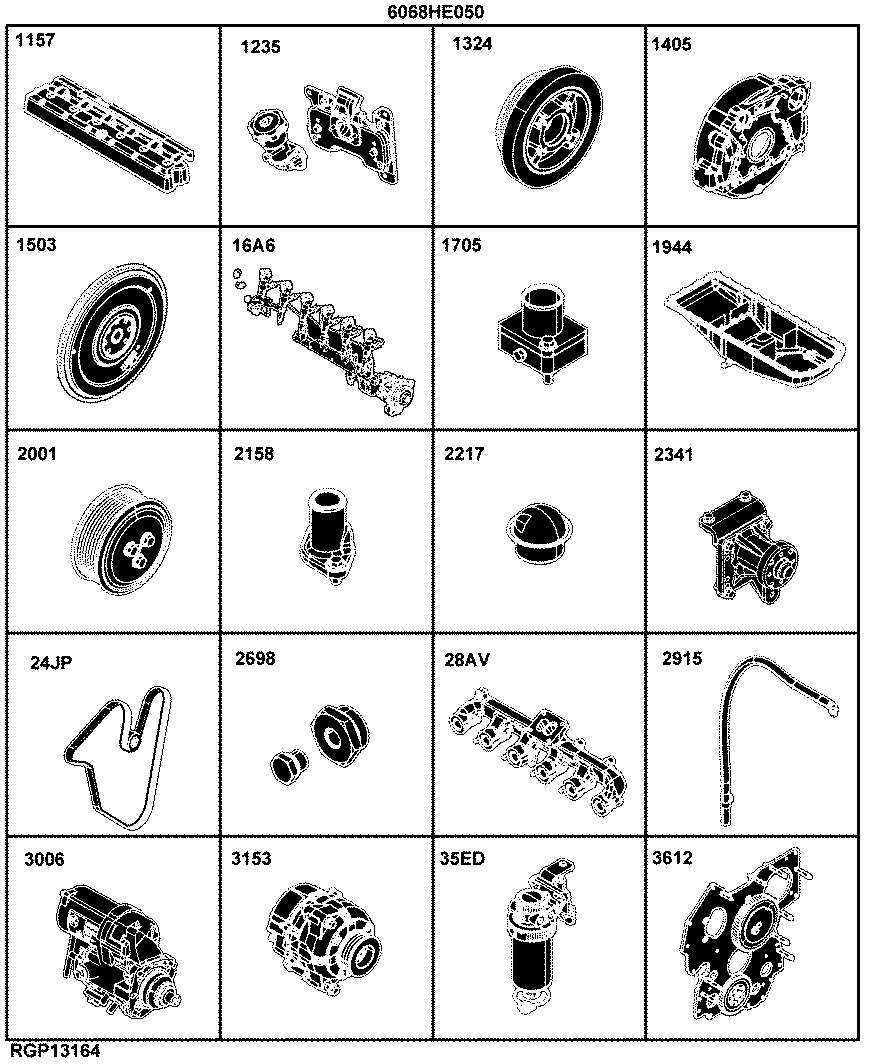

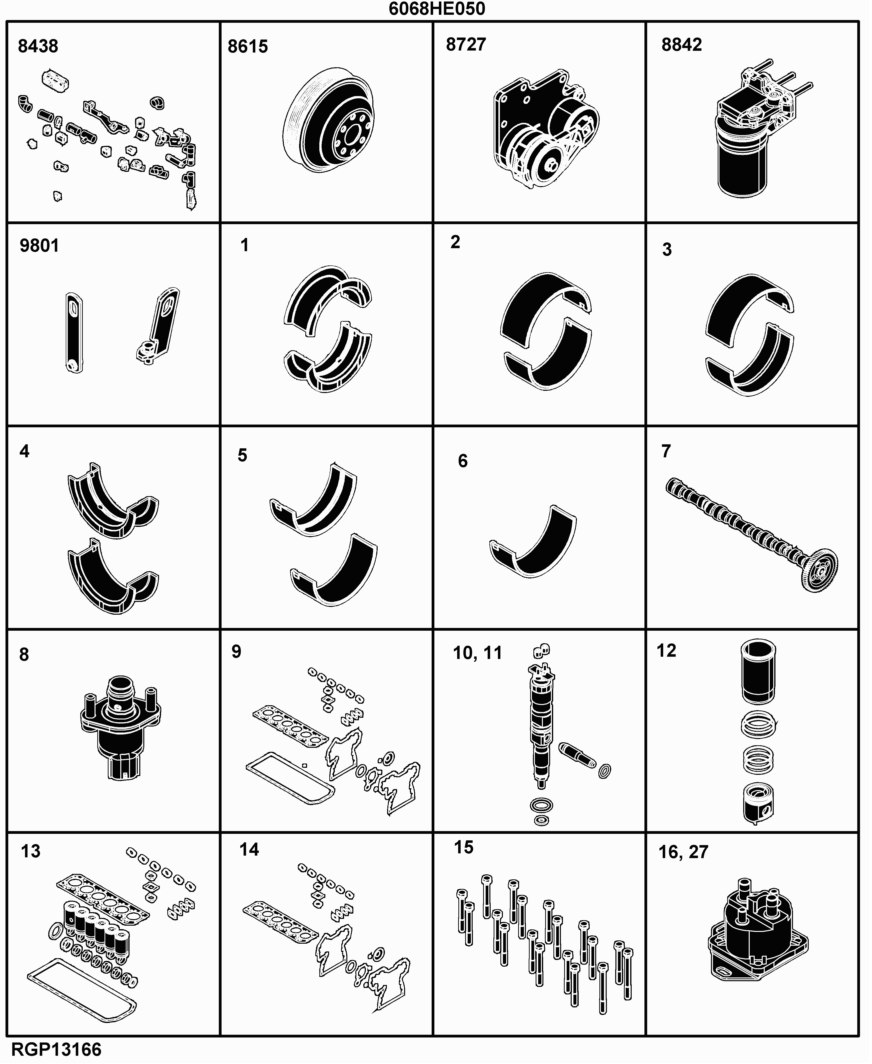

20 Engine 6068HE050-RE531541

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Overhaul Gasket Kit (2/2)	-
-	-	1	9901 Engine Overhaul Gasket Kit (1/2)	-
-	-	1	9901 Cylinder Head Removal Gasket Kit	-
-	-	1	9901 Cylinder Head Bolts Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Control Valve	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Front Oil Seal	-
-	-	1	9901 Camshaft	-
-	-	1	9801 Lift Straps	-
-	-	1	8842 Engine Oil Filter	-
-	-	1	8727 Belt Tensioner	-
-	-	1	8615 Fan Pulley	-
-	-	1	8438 Engine Wiring Harness	-
-	-	1	8171 Primary Fuel Filter	-
-	-	1	7699 Oil Pressure Switch - Plug	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Starter Relay 24 V	-
-	-	1	9901 Starter Relay 12 V	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Service Kit, Injector Nozzle	-
-	-	1	9901 Service Kit, Injector Nozzle	-
-	-	1	6730 Engine Sensors	-
-	-	1	9901 Rear Oil Seal	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 O-Ring Kit, Cylinder Liner	-
-	-	1	9901 Mounting Bracket Kit	-
-	-	1	9901 Mounting Bracket Kit	-
-	-	1	9901 Mounting Bracket Kit	-
-	-	1	9901 Mounting Bracket Kit	-
-	-	1	2158 Thermostat Cover	-
-	-	1	35ED Final Fuel Filter	-
-	-	1	3153 Alternator	-
-	-	1	3006 Starting Motor	-
-	-	1	2915 Ventilating System	-
-	-	1	28AV Exhaust Manifold	-
-	-	1	2698 Engine Coolant Heater Fittings	-
-	-	1	24JP Fan Belt	-
-	-	1	2341 Fan Drive	-
-	-	1	2217 Thermostat	-
-	-	1	3612 Front Plate	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	1944 Oil Pan	-
-	-	1	1705 Air Intake	-
-	-	1	16A6 Fuel Injection System	-
-	-	1	1503 Flywheel	-
-	-	1	1405 Flywheel Housing	-
-	-	1	1324 Crankshaft Pulley	-
-	-	1	1235 Oil Filler Neck	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	6698 Temperature Switch Plug	-
-	-	1	65QC Turbocharger	-
-	-	1	6438 Exhaust Pipe	-
-	-	1	63CK Low Pressure Fuel Lines	-
-	-	1	6201 Alternator Brackets	-
-	-	1	5903 Engine Oil Cooler	-
-	-	1	5728 Water Pump Inlet	-
-	-	1	5123 Cylinder Head	-
-	-	1	1157 Valve Cover	-
-	-	1	4902 Valve Actuating Mechanism	-
-	-	1	4839 Connecting Rods and Pistons	-
-	-	1	4712 Crankshaft and Bearings	-
-	-	1	4644 Cylinder Block	-
-	-	1	4446 Timing Gear Cover and Water Pump	-
-	-	1	4002 Engine Oil Dipstick	-
-	-	1	3924 Thermostat Housing	-
-	-	1	3713 Fuel Transfer Pump	-
