Большое обновление пильных узлов

Смотреть

Открытый узел

Threshing Frame (Chopper Attachment) (Optional)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	26	Flange Nut	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M8
2	19M7865	16	Screw	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M8 X 16
3	YC20299	1	Snap Ring	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
4	14M7350	12	Lock Nut	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M6
5	19M10106	8	Screw	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M6 X 16
6	YC11207	3	Hose	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
7	YC11242	3	Strap	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
8	AYC12971	1	Bearing	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
9	YC26675	2	Wear Angle	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
10	YC14636	1	Isolator	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
11	YC18270	1	Hose	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
12	YC22605	1	Strap	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
13	19M7077	12	Cap Screw	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M6 X 20
14	AYC12217	1	Frame	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
15	AYC25703	1	Frame	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
16	19M7810	12	Screw	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M10 X 80
17	14M7296	12	Flange Nut	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M10
18	19M7793	2	Screw	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M16 X 40
19	14M7291	1	Flange Nut	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M16
20	YC20688	3	Pin Fastener	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
21	YC17554	1	Plate	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
22	YC17555	1	Carrying Strap	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
23	YC20669	1	Wear Angle	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
24	AYC18283	4	Bolt	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
25	24M7207	4	Washer	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) 8.400 X 24 X 2 mm
26	11M7020	6	COTTER PIN	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) 4 X 22 mm
27	YC10094	1	Angle Kit	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
28	19M7866	4	Screw	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M8 X 20
29	19M7867	6	Screw	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M8 X 25
30	AYC18307	1	Compression Spring	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
31	19M7789	4	Screw	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M12 X 30
32	YC17756	1	Bearing Housing W/O Bearing	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
33	19M7787	1	Screw	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M12 X 20
34	YC19295	1	Washer	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)
35	19M7790	3	Screw	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M12 X 35
36	14M7031	6	Nut	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China) M12
37	YC31797	1	Plate	(Vertical Unloading Auger Version, China) (Simple Unloading Auger Version, China) (Horizontal Unloading Auger Version, China) (Sacker Version, China)

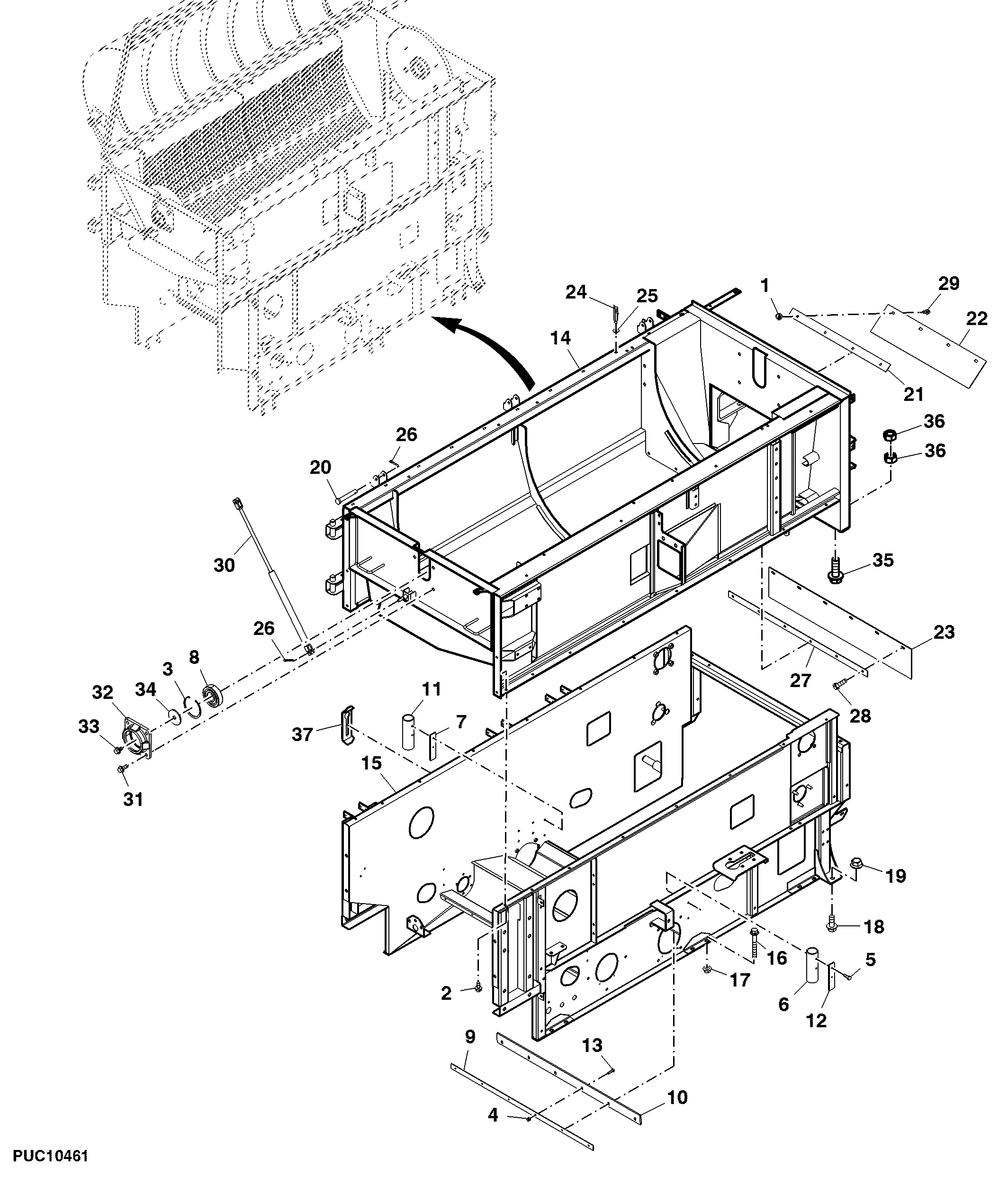

Threshing Frame (Chopper Attachment) (Optional)

Нет текстового описания
