Grain Tank Unloading Auger, JD3029 Engine Grain Tank Version

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AYC19599	1	Support	-
2	YC23160	1	Front Axle	-
3	19M7785	9	Screw	M10 X 25
4	58M5574	1	Lubrication Fitting	-
5	YC23186	2	Bushing	-
6	YC23159	1	Front Axle	-
7	YC22938	1	Gear	-
8	YC23224	6	Spring	-
9	YC23065	1	Pin	-
10	YC23662	8	Screw	-
11	YC25120	1	Transmission Case	-
12	AYC18042	2	Ball Bearing	-
13	YC20343	2	Seal	-
14	YC20297	3	Snap Ring	-
15	YC23095	2	Drive Shaft	-
16	YC23094	2	Gear	-
17	YC23223	2	Shim	-
18	19M7801	2	Screw	M8 X 60
19	14M7396	2	Lock Nut	M8
20	AYC19597	1	Angle	-
21	YC23216	2	Pin	-
22	11M7009	2	Cotter Pin	2 X 16 mm
23	24M7055	2	Washer	8.400 X 16 X 1.600 mm
24	AYC19596	1	Angle	-
25	AYC19606	1	Flight	-
26	AYC19598	1	Case	-
27	AYC18283	1	Bolt	-
28	YC27654	1	Limit Curtain	-
29	YC23193	2	Diffuser Panel	-
30	19M10106	9	Screw	M6 X 16
31	YC20357	9	Nut	-
32	24M7054	6	Washer	6.400 X 12 X 1.600 mm
33	12M7099	9	Lock Washer	6 mm
34	24M7139	5	Washer	6.400 X 18 X 1.600 mm
35	YC23157	1	Bushing	-
36	AYC18038	1	Ball Bearing	-
37	19M7865	10	Screw	M8 X 16
38	YC20295	1	Snap Ring	-
39	40M1823	1	Snap Ring	-
40	AYC19602	1	Support	-
41	YC23202	1	Return Pan	-
42	14M7298	4	Flange Nut	M8
43	YC25825	1	Adjusting Strap	-
44	19M7784	6	Screw	M10 X 20
45	14M7296	6	Flange Nut	M10
46	YC22234	1	Angle	-
47	Z38597	9	CLAMP	-
48	19M10106	9	Screw	M6 X 16
49	YC23663	2	Rubber Track Belt	-
50	YC23664	4	Rubber Track Belt	-
51	YC23665	2	Rubber Track Belt	-
52	AYC20696	1	Brush	-
53	YC23221	1	Washer	-
54	AYC19529	1	Pan	-
55	AYC19595	1	Gear Case	-
56	YC28070	1	Shield	-
57	YC20403	8	Screw	-

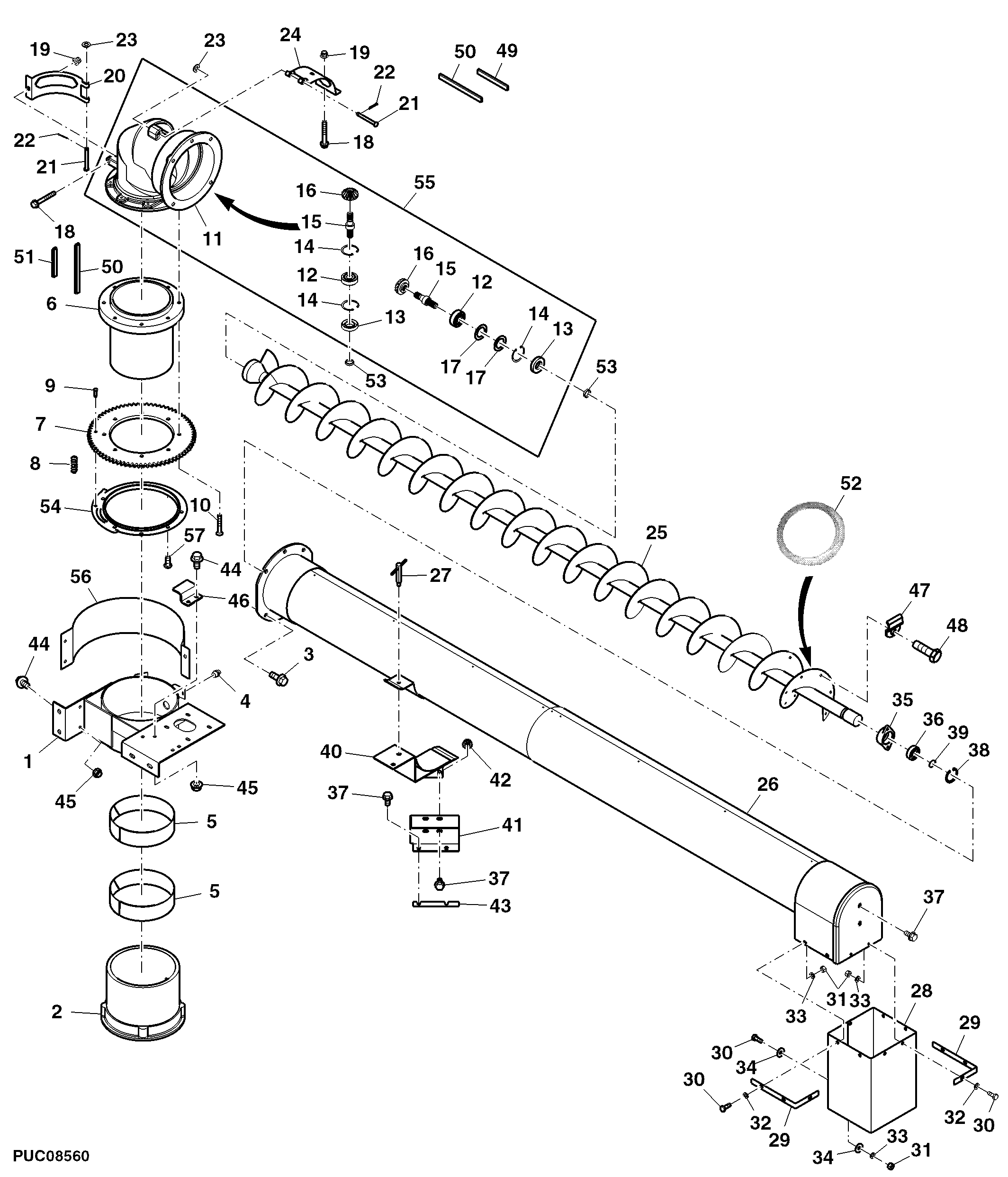

Grain Tank Unloading Auger, JD3029 Engine Grain Tank Version
