Unloading Tube Hydraulic Lines, Hydro Drive

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7037	2	COTTER PIN	6.300 X 36 mm
2	12M7013	6	LOCK WASHER	10.200 mm
3	12M7099	2	Lock Washer	6 mm
4	14M7027	2	NUT	M6
5	14M7140	6	Nut	M10
6	14M7697	1	Lock Nut	M16
7	19M10107	2	Screw	M6 X 25
8	19M7609	1	Cap Screw	M16 X 90
9	19M7724	6	Cap Screw	M10 X 45
10	19M7784	1	Screw	M10 X 20
11	24M7040	6	Washer	11 X 20 X 2 mm
12	44M7029	1	PIN FASTENER	25 X 90 mm
13	ADX14836	1	Oil Line	INCLUDES (2) YC16849 AND (2) YC16855
13	ADX16456	1	Oil Line	-
14	Z34953	4	Clamp	-
15	H77698	1	Tie Band	SUB FOR Z31799
16	ADX14837	1	Oil Line	INCLUDES (2) YC16849 AND (2) YC16855
17	ADX15372	1	Oil Line	INCLUDES (2) YC16849 AND (2) YC16855
18	ADX16457	1	Oil Line	-
18	ADX15373	1	Oil Line	INCLUDES (2) YC16849 AND (2) YC16855
19	AYC12822	1	Holder	-
20	AYC12863	2	Hydraulic Hose	LGTH = 200 mm
21	ADX15865	1	Hydraulic Cylinder	SUB FOR AYC19959
21	AYC23005	1	Seal Kit	USE WITH AYC19959
21	ADX15883	1	Seal Kit	USE WITH ADX15865
22	YC24311	1	Bushing	-
23	YC12376	2	Half Clamp	-
24	YC16367	6	Spacer	-
25	YC16876	4	Spacer	-
26	YC23722	1	Angle	-
27	YC33457	2	Fitting	-
28	DX20529	2	Support	-
29	Z34951	2	CLAMP	-
30	Z34952	1	Clamp	-
31	14M7296	1	Flange Nut	M10
32	14M7439	5	Flange Nut	M6
33	19M7796	1	Screw	M6 X 30
34	19M7863	4	Screw	M6 X 25

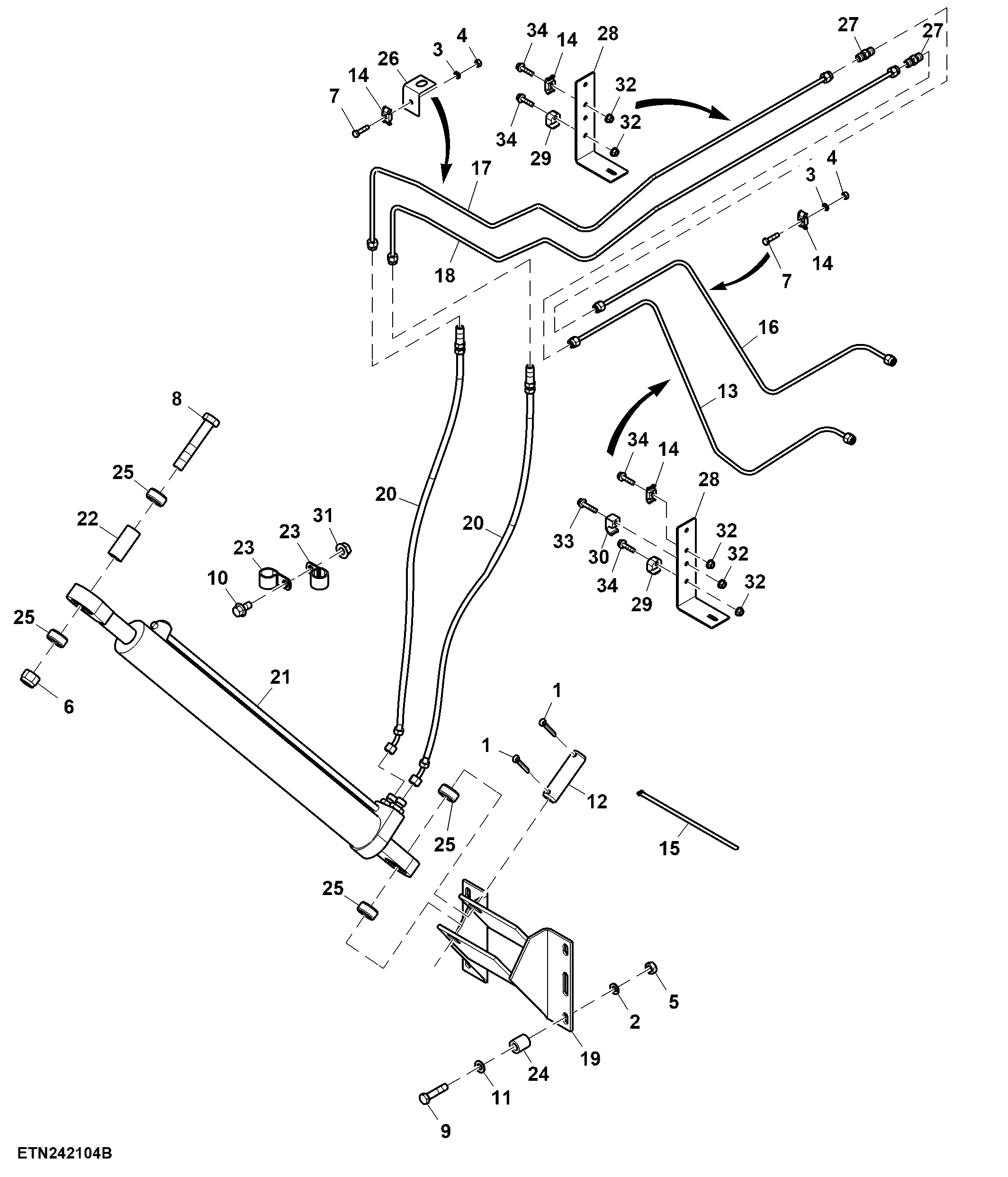

Unloading Tube Hydraulic Lines, Hydro Drive
